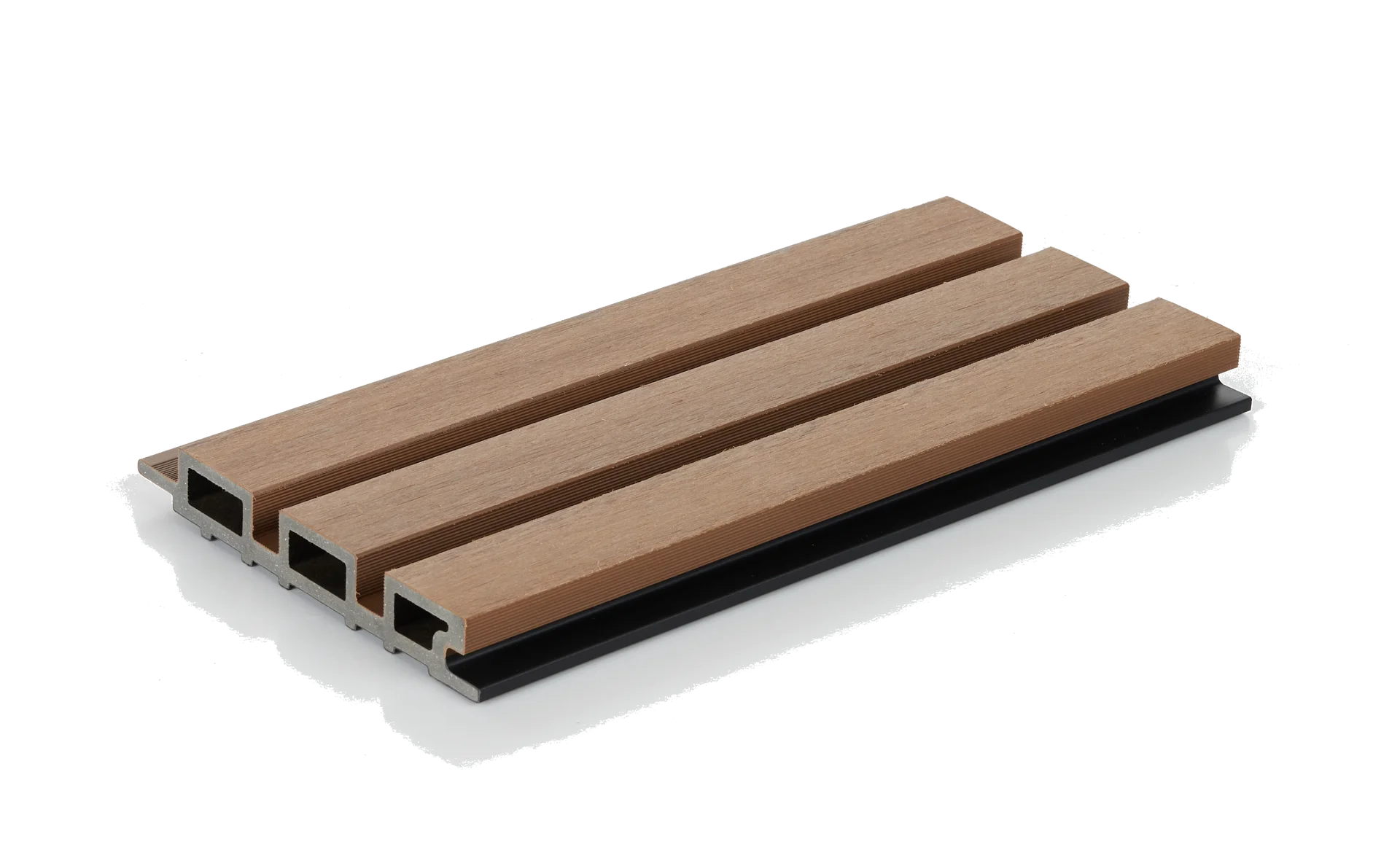

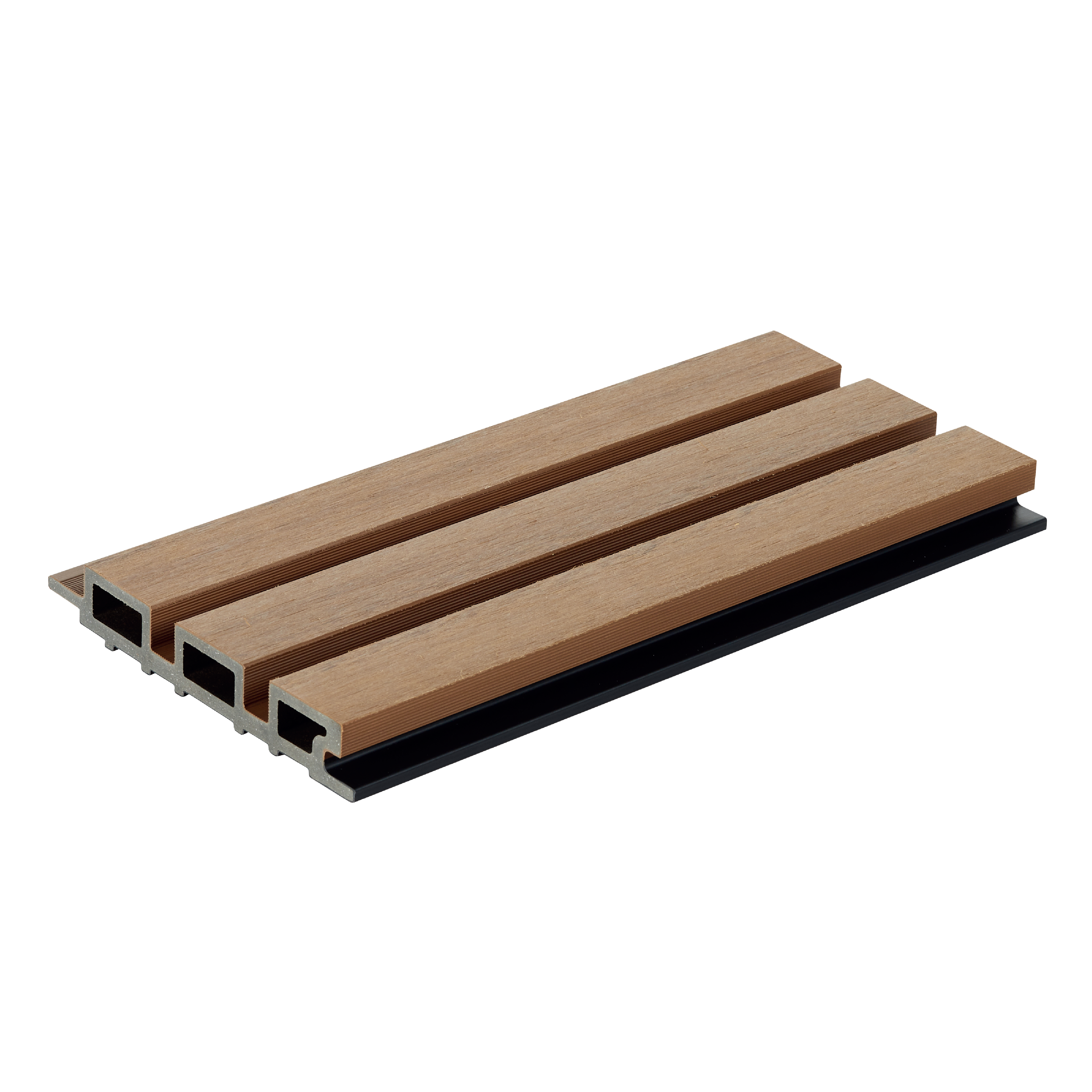

Castellated Cladding Board
HLYC-018F

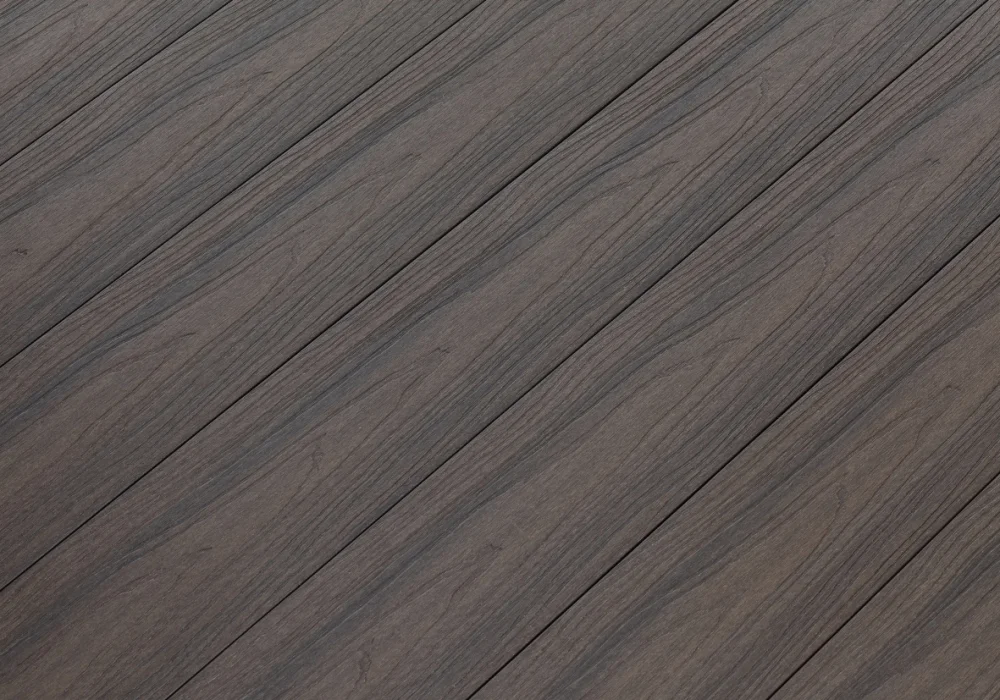

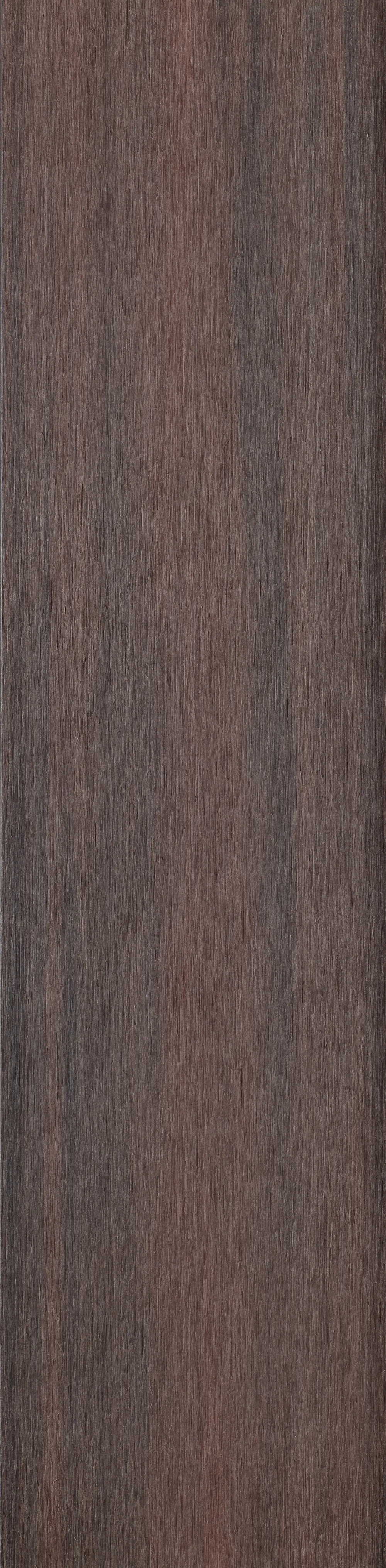

COLOR: Modern Iron Coffee
Specification
155*24mm
Length
3.66m
Weight
2.12kg/m
Surface
BR6
Warranty
25-Year Residential
Solid Wood Texture
Green and Sustainable
Diving-grade Waterproof
Low Maintenance
25 Years of Durability

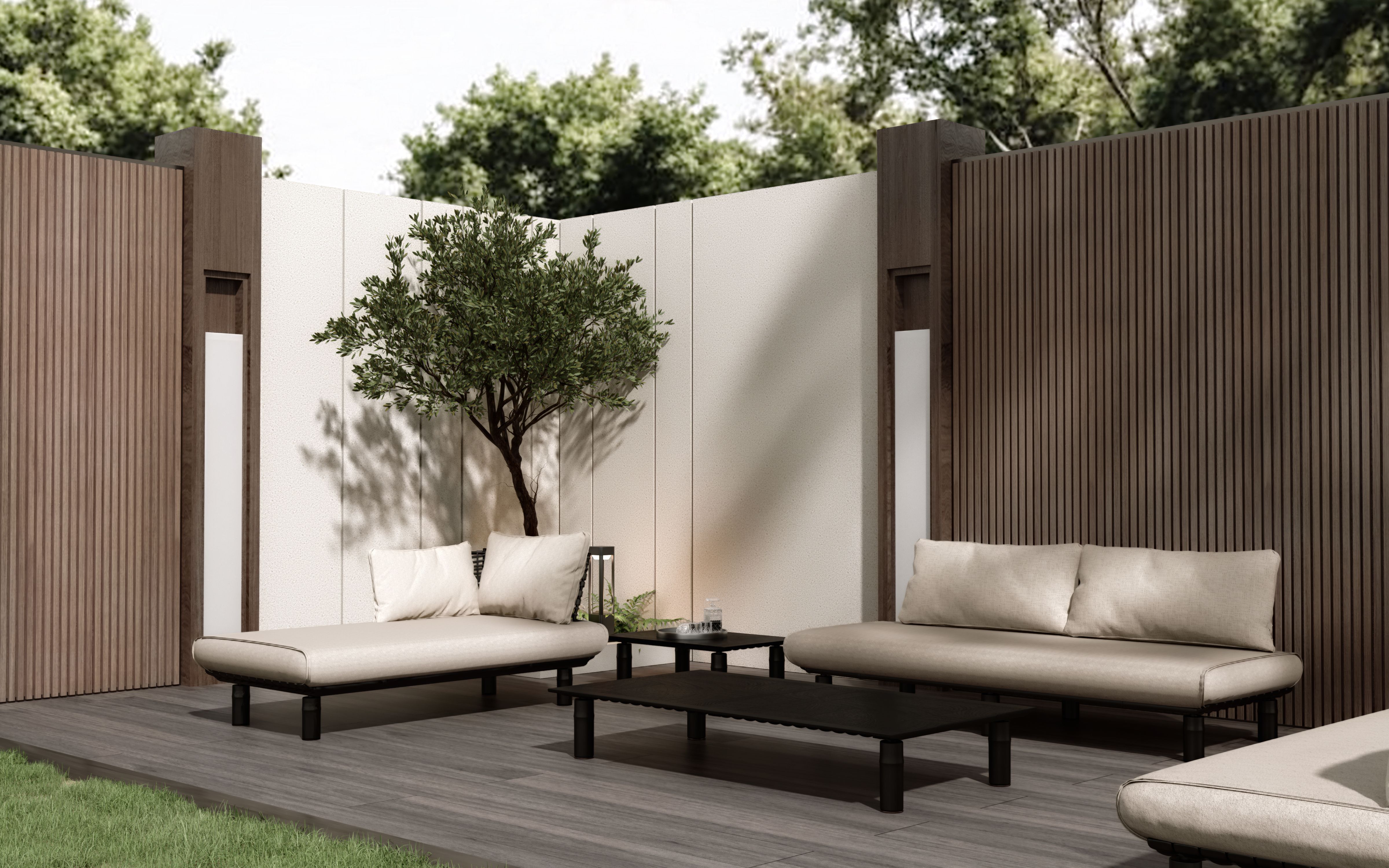

The design concept is different from that of traditional cement and ceramic tile materials. Yardcom Great Wall cladding,with its unique natural texture, excellent weather resistance,low maintenance cost, and environmentally sustainable features, can withstand wind and rain, creating a long-term wall solution for modern families.
SPECIFICATION
| Type | Castellated Cladding Board | Bult Joint |
 |
 |
|
| Model | HLYC-018F | HLYC-019F |
| Specification | 155*24mm | 83.5*69mm |
| Length | 3.66m | 3.66m |
| Weight | 2.12kg/m | 1.96kg/m |
| Surface | BR6 | BR6 |
| Warranty | 25-Year Residential | 25-Year Residential |

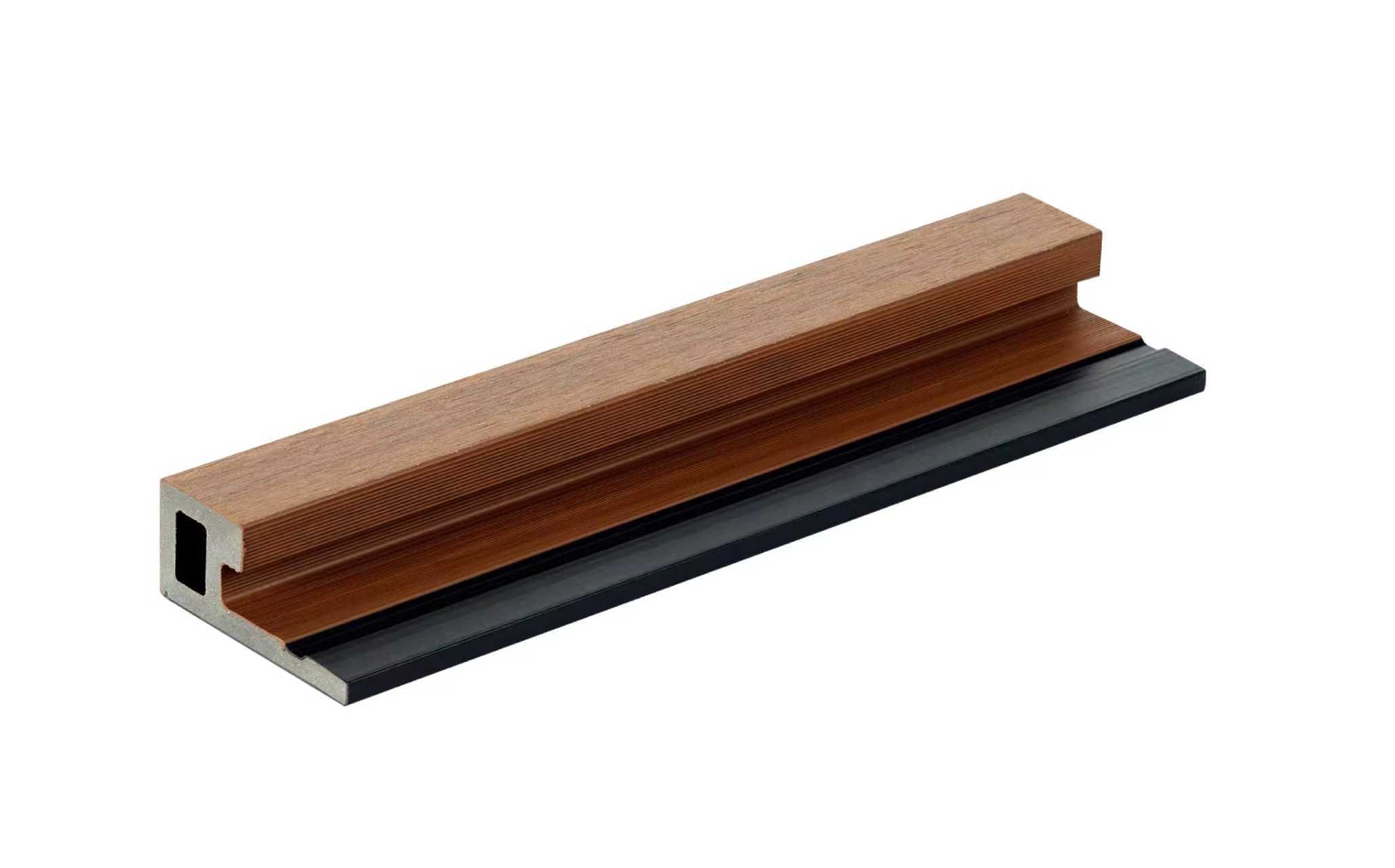

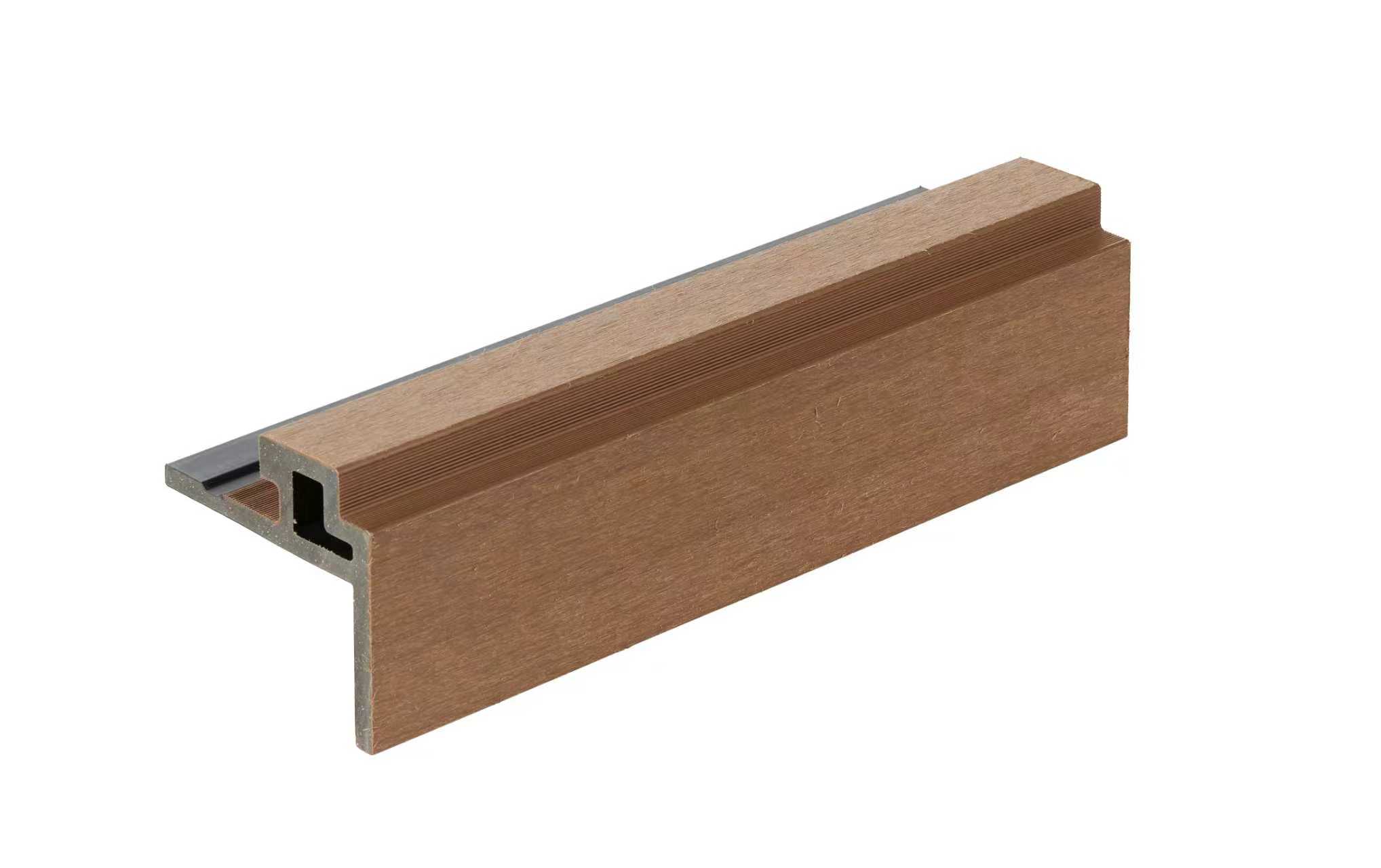

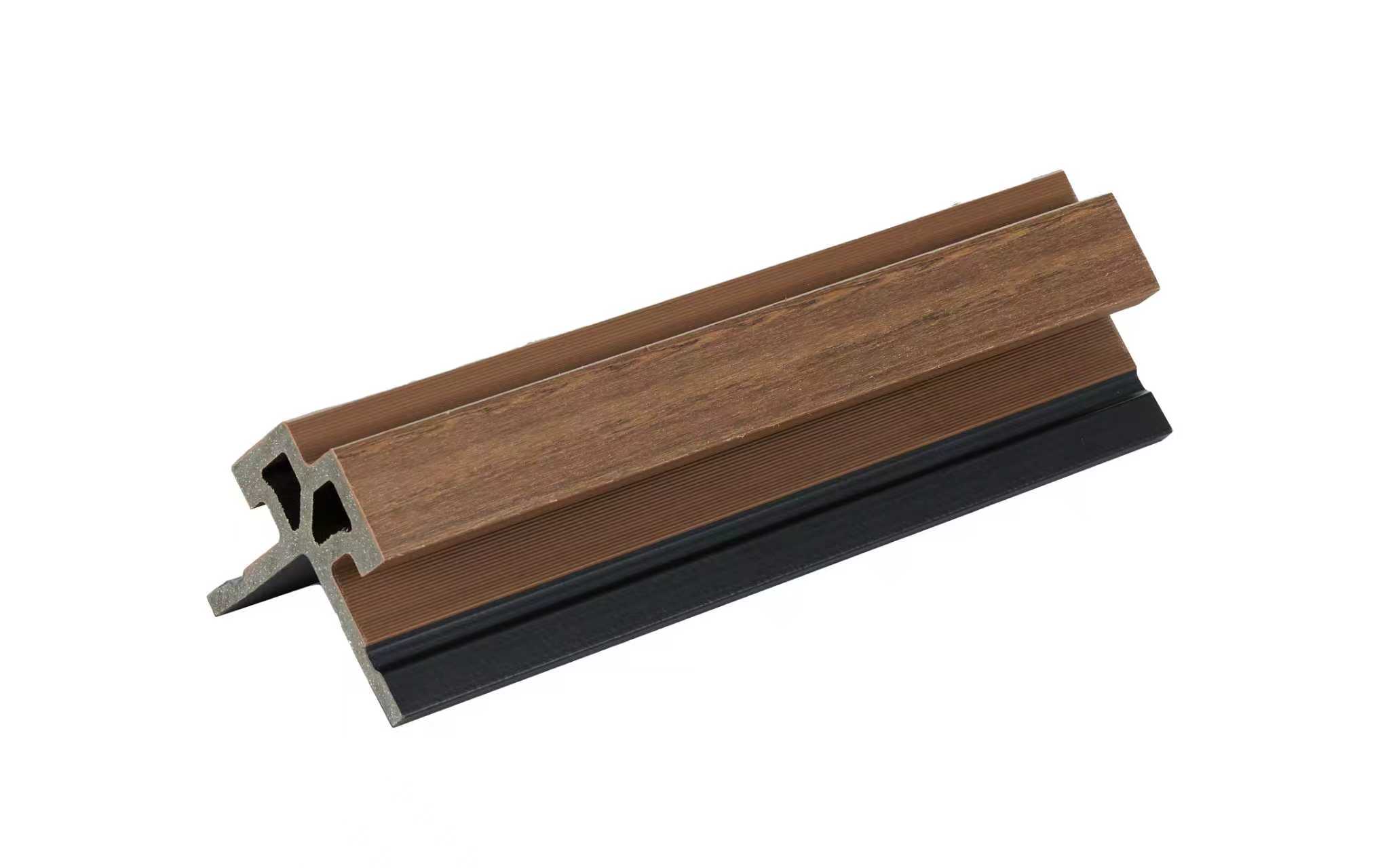

| Type | Inner Corner (Vertical) | Outer Corner (Vertical) |
 |
 |
|
| Model | HLYC-020F | HLYC-021F |
| Specification | 78*33.5mm | 88.5*35mm |
| Length | 3.66m | 3.66m |
| Weight | 1.32kg/m | 2.23kg/m |
| Surface | BR6 | BR6 |
| Warranty | 25-Year Residential | 25-Year Residential |
ACCESSORIES
```html
| Model | HLPM-103-2(J) | HLPM-0167(J) | HLPM-119(I) |
 |
 |
 |
|

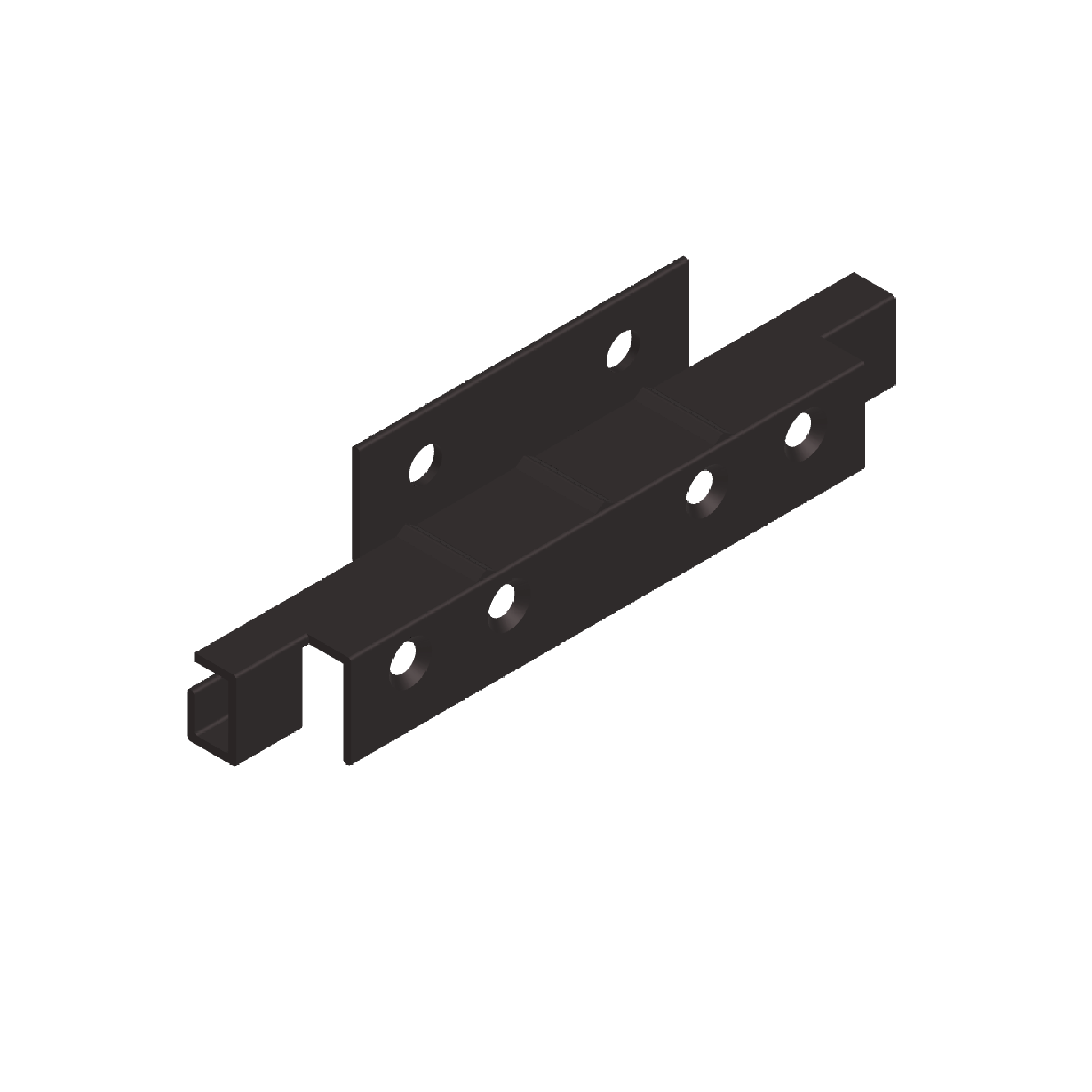

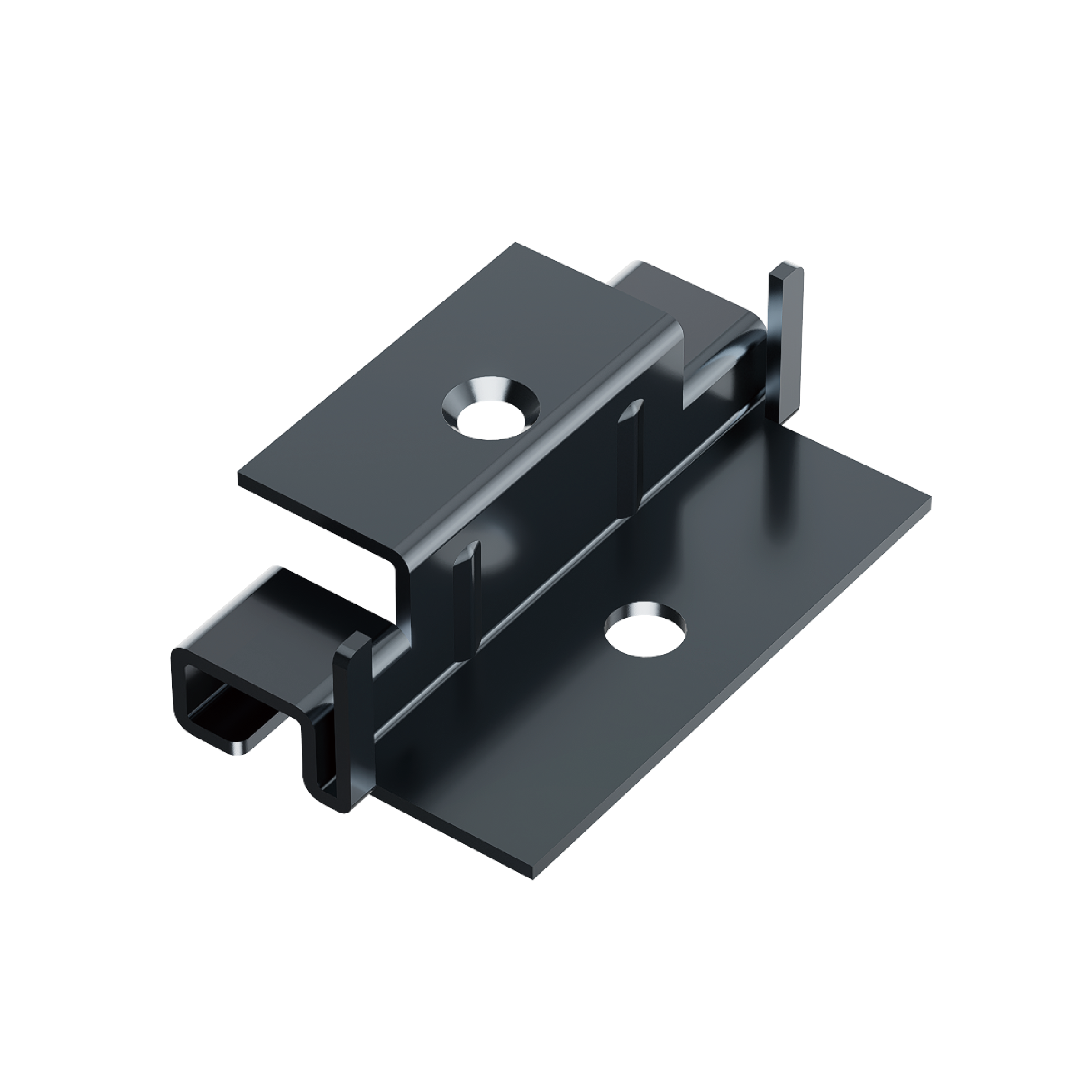

| Type | Connecting Clip | Joint Clip | Locking Screw |
| Color | Black | Black | Black |
| Specification | 50*28.4*13.9*1.2mm | 100*28.4*13.9mm | M4*31.8mm |
| Material | 301 Stainless Steel | 301 Stainless Steel | 410 stainless steel |
| Model | HLPM-115(I) | HLPM-118(I) | HLPP-054(C) |
 |
 |
 |
|

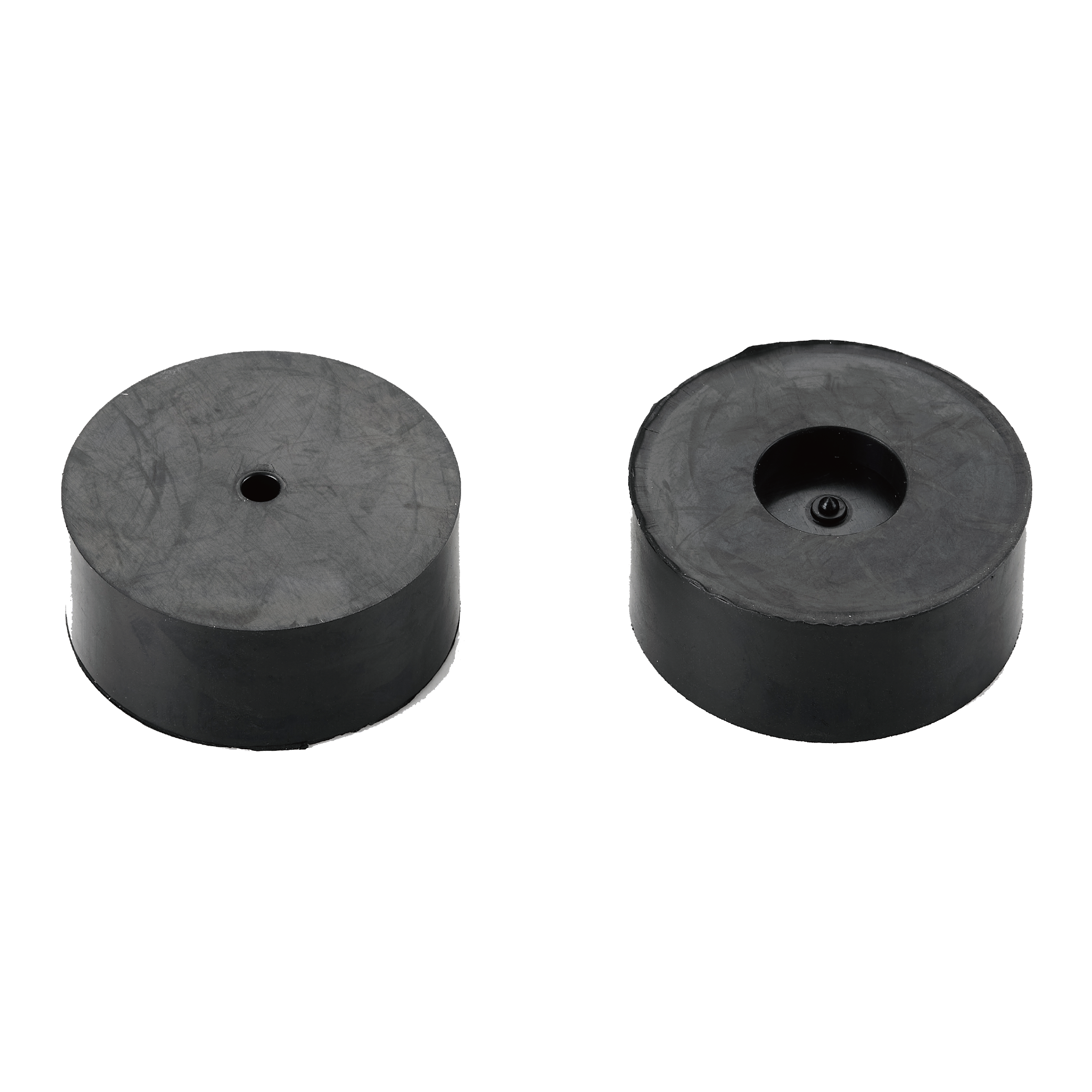

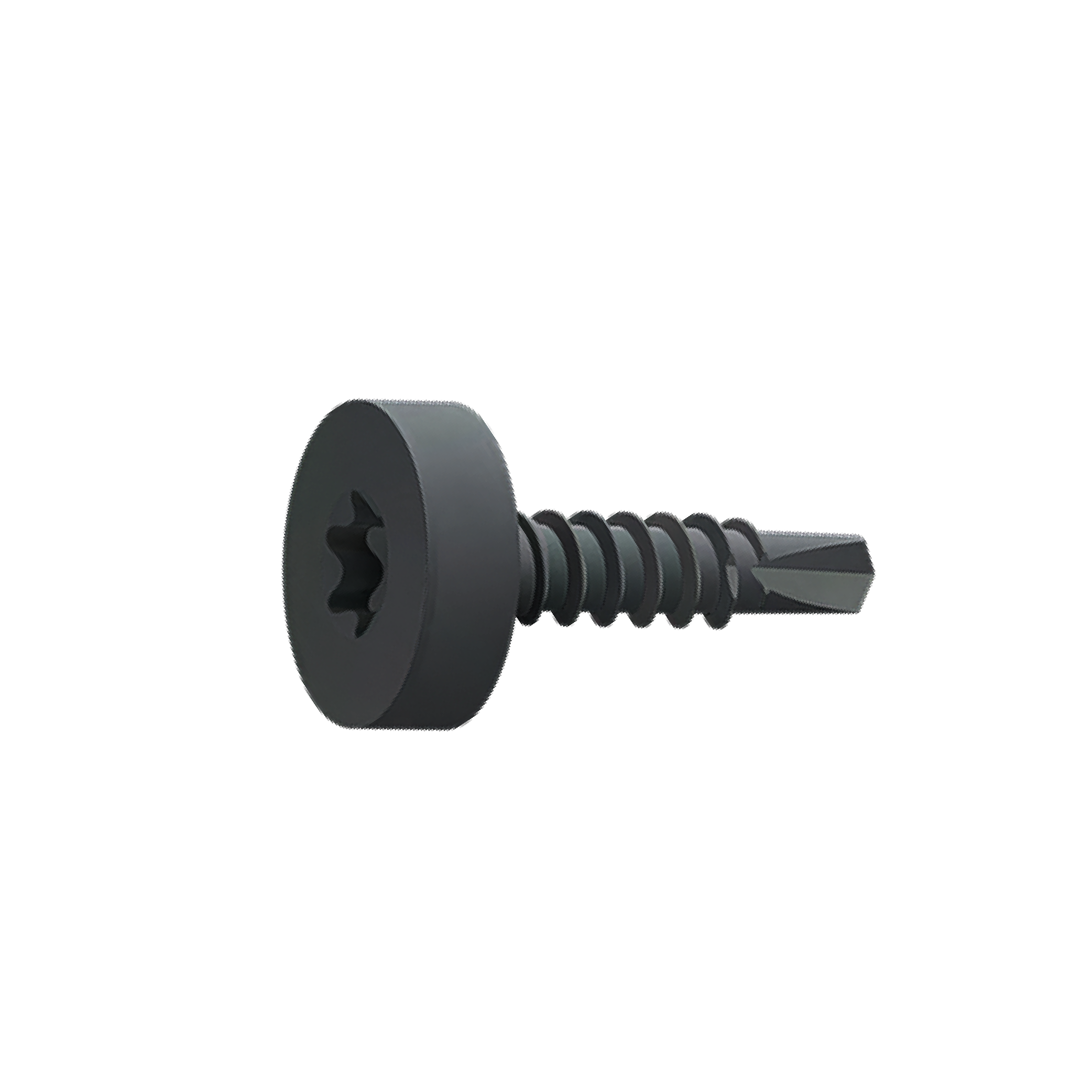

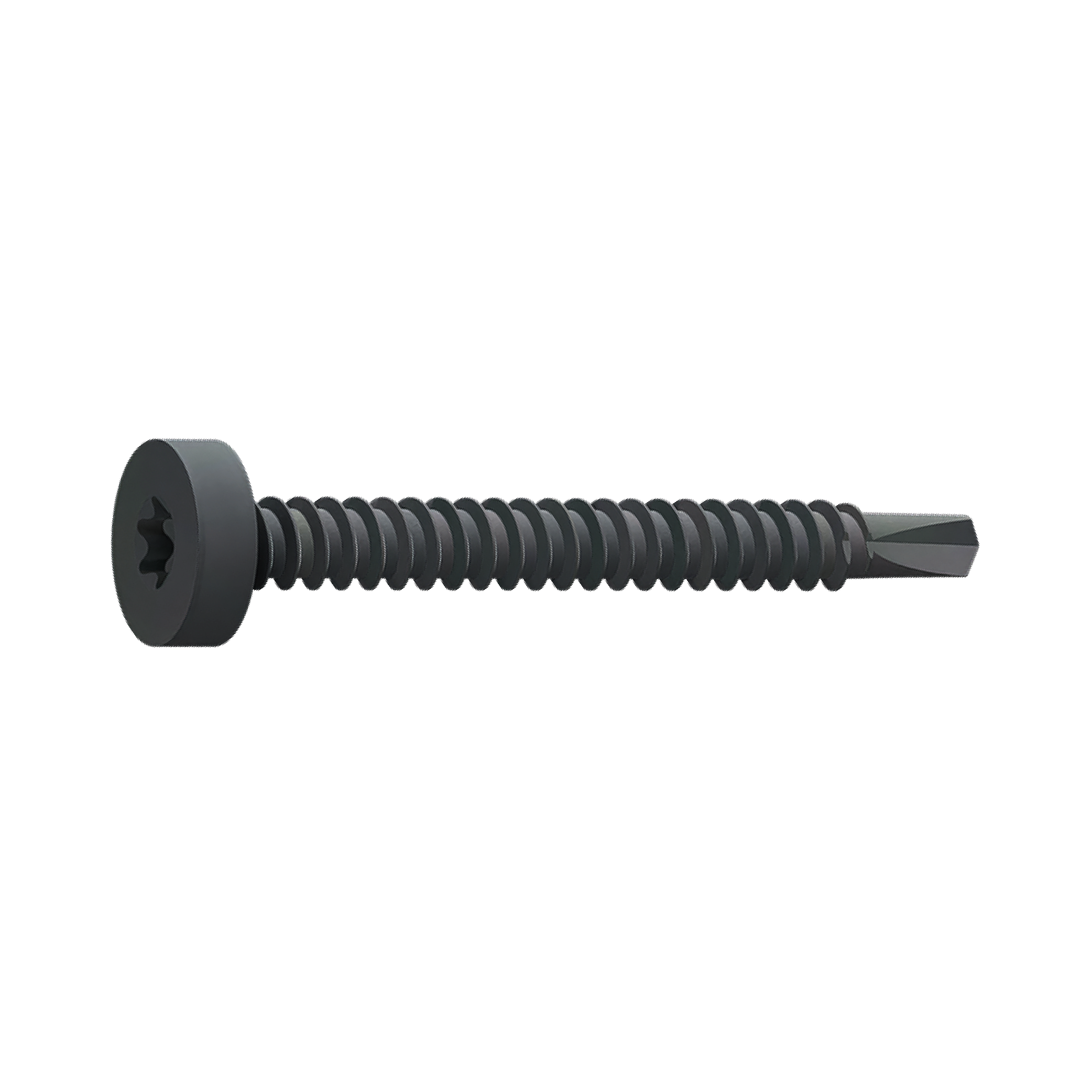

| Type | Screw for Edge Boards | Clip Screw | Horizontal Shim |
| Color | Painted ends | Black | Black |
| Specification | M5*34.29mm | M5*25.4m | 40*7.5mm |
| Material | 410 Stainless Steel | 410 stainless steel | / |
| Model | HLPM-120(I) | HLPK-0810 |
 |
 |
|

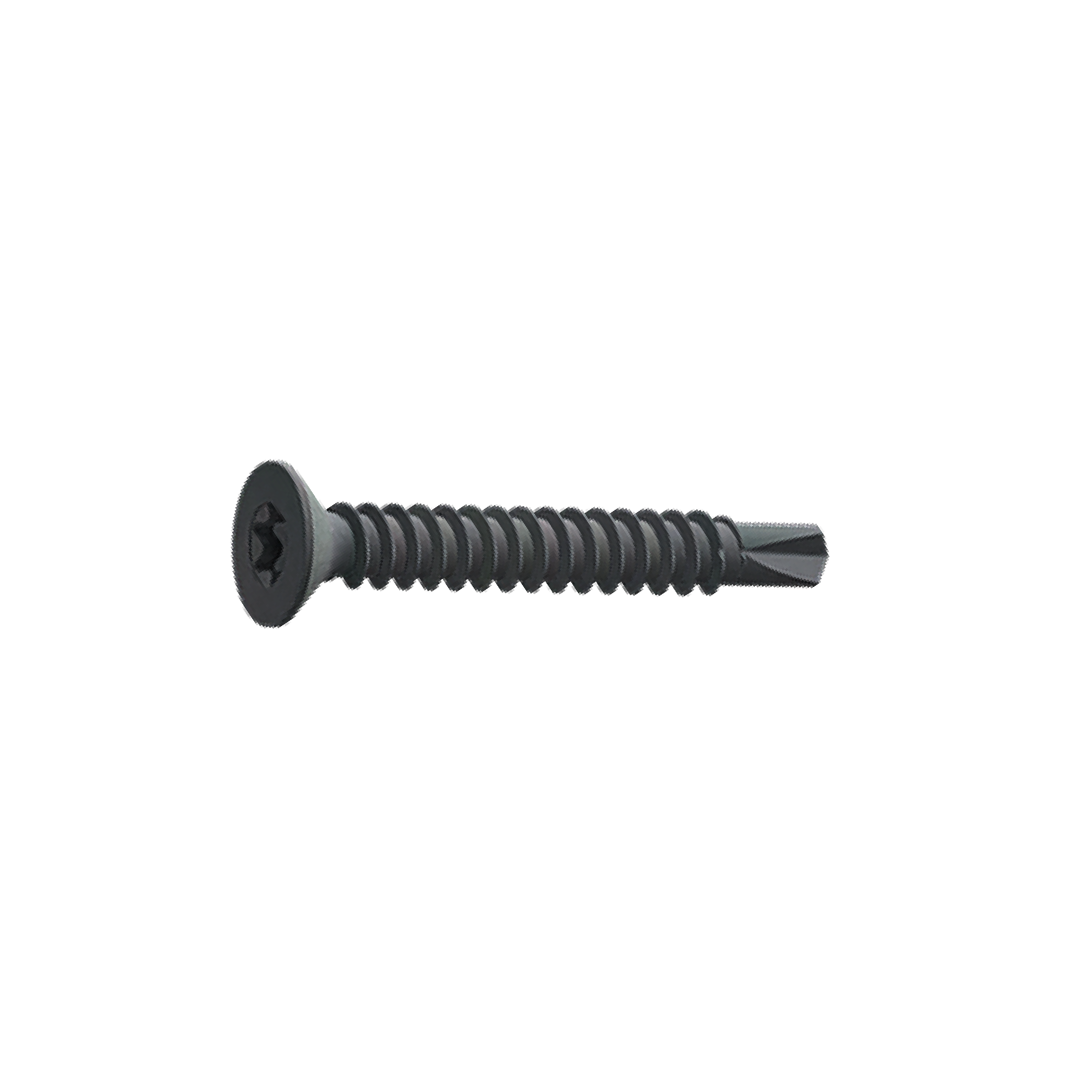

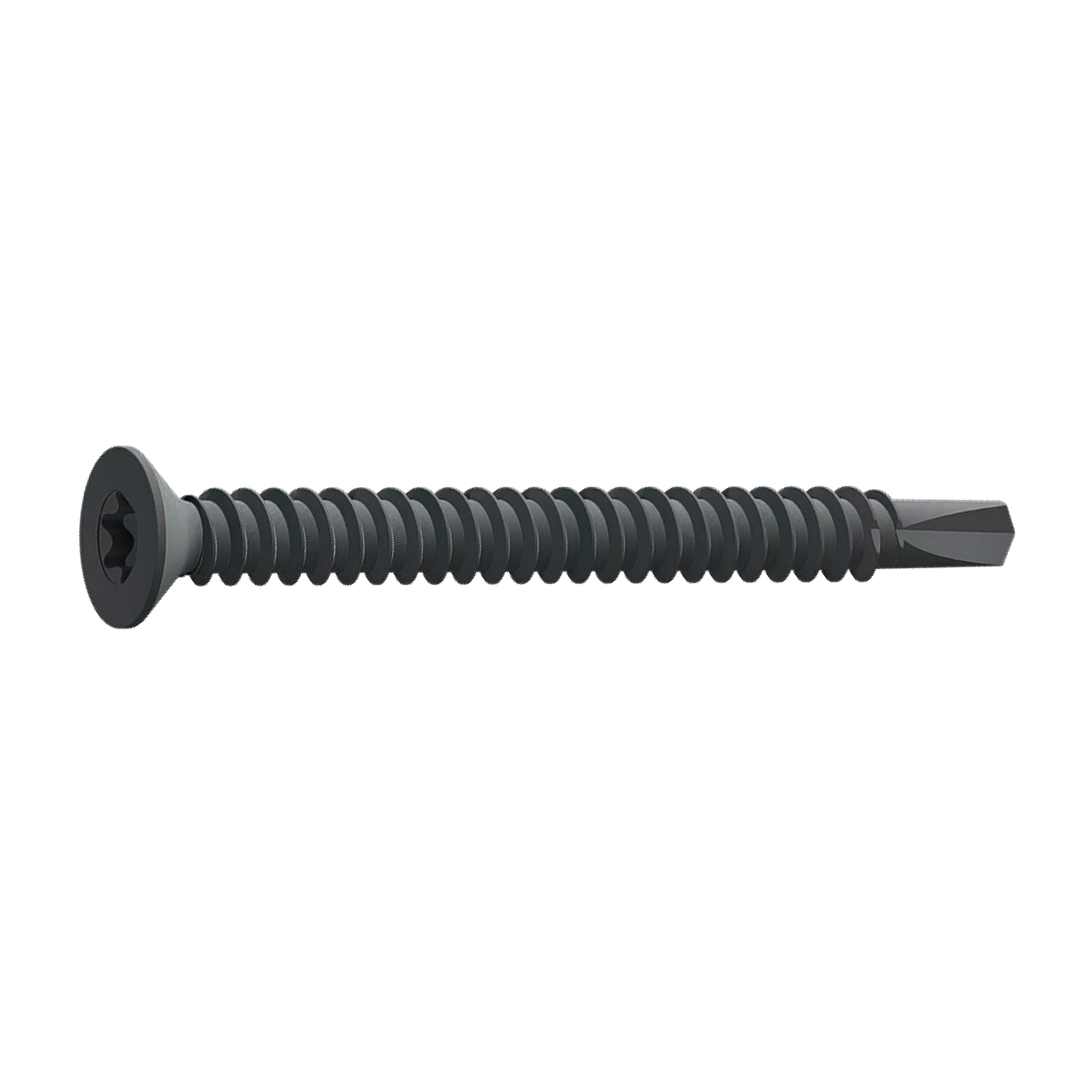

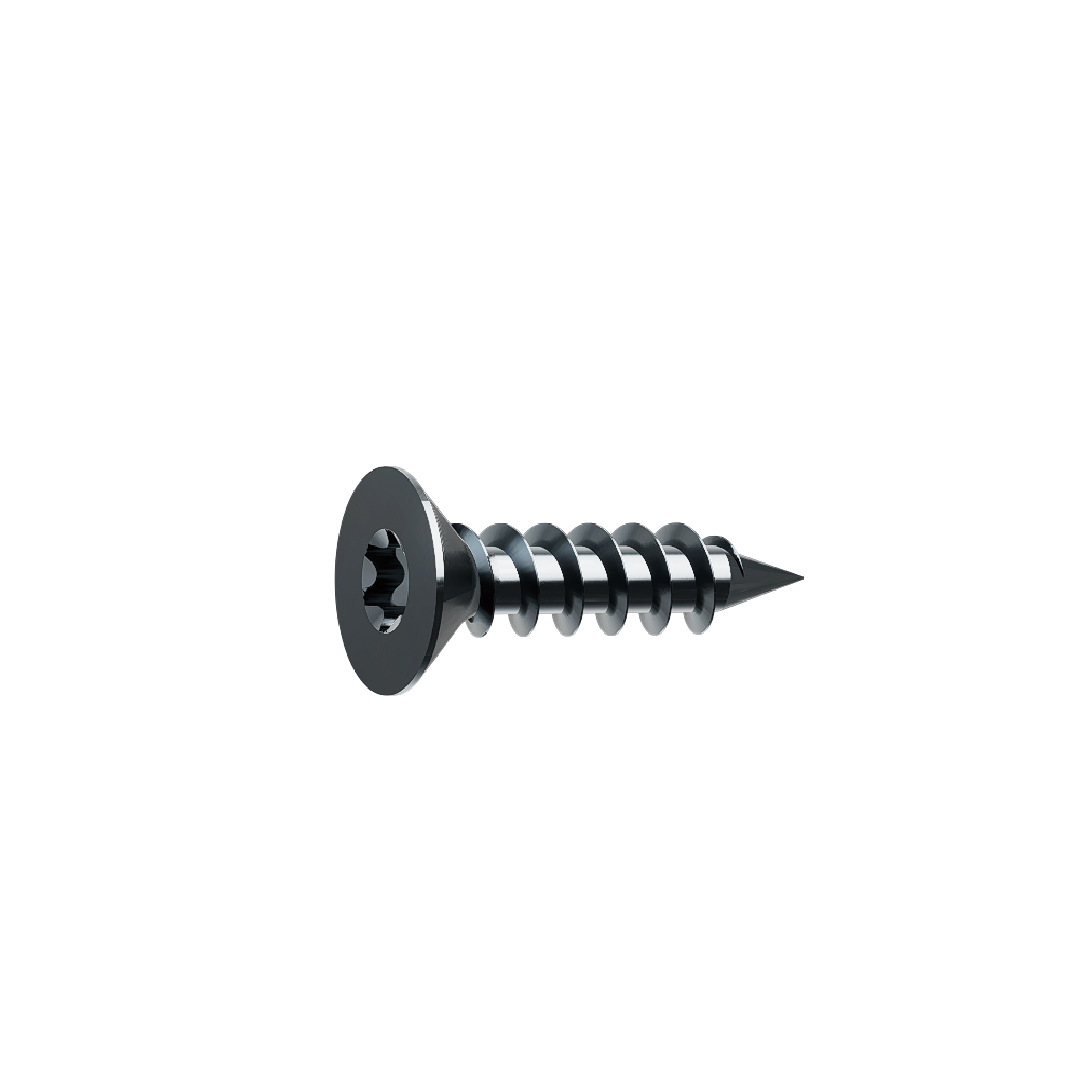

| Type | Torx Countersunk Head Self-drilling Self-tapping Screw | Torx Flat Head Self-tapping Screw |
| Color | Painted ends | Black |
| Specification | 40*36.22*16.7*1.2mm | M3*12mm |
| Material | 410 stainless steel | 304 Stainless Steel |
