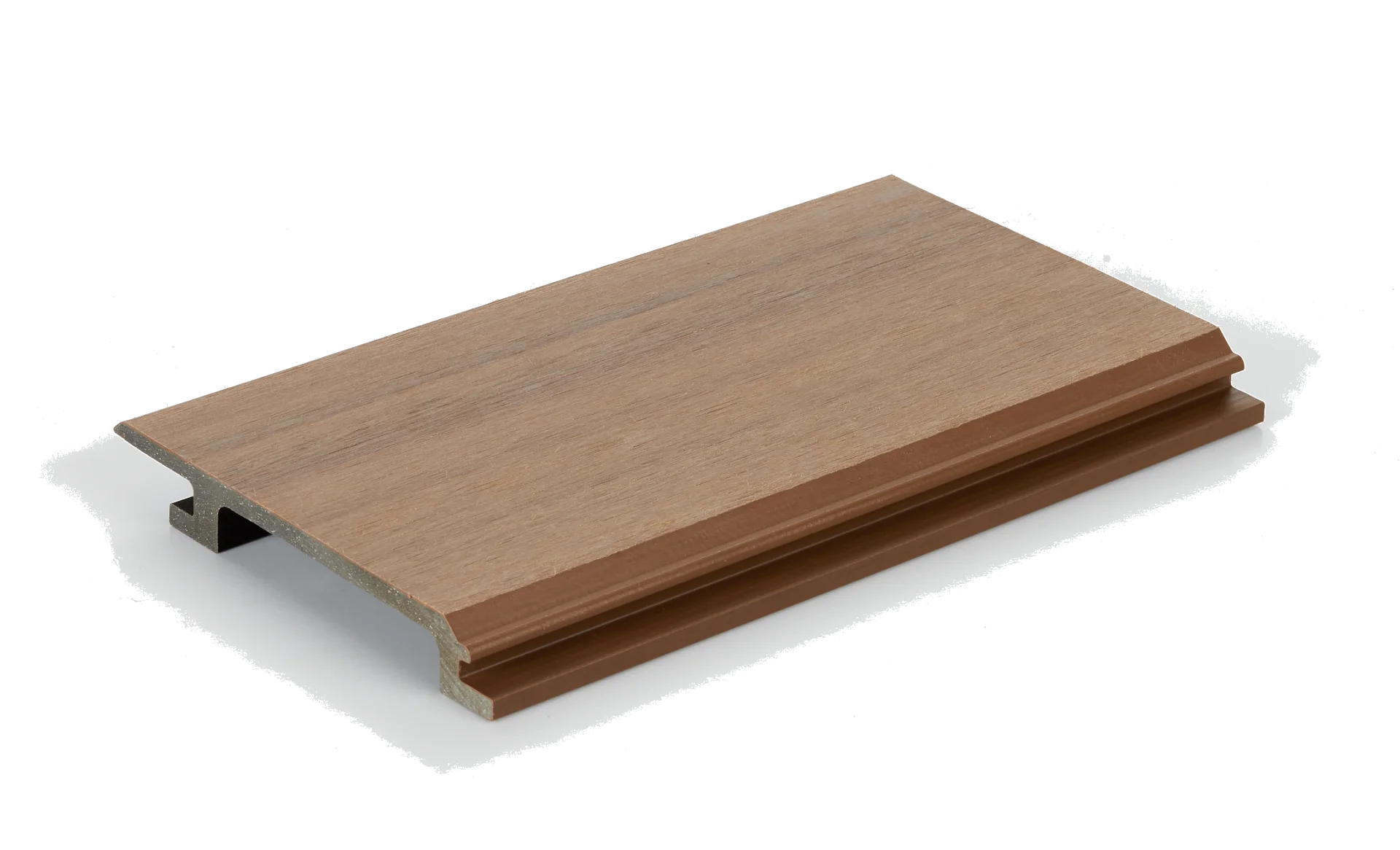

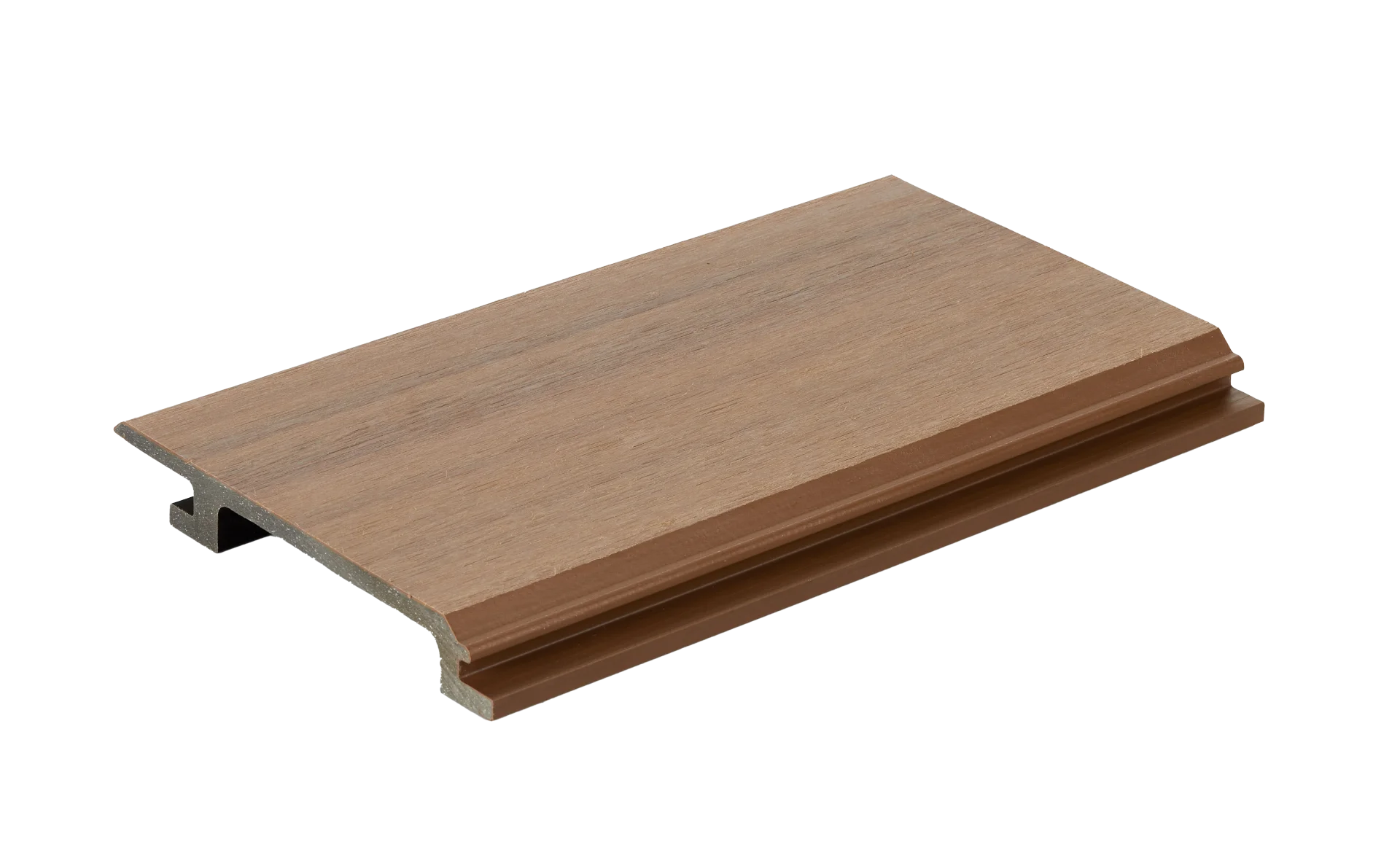

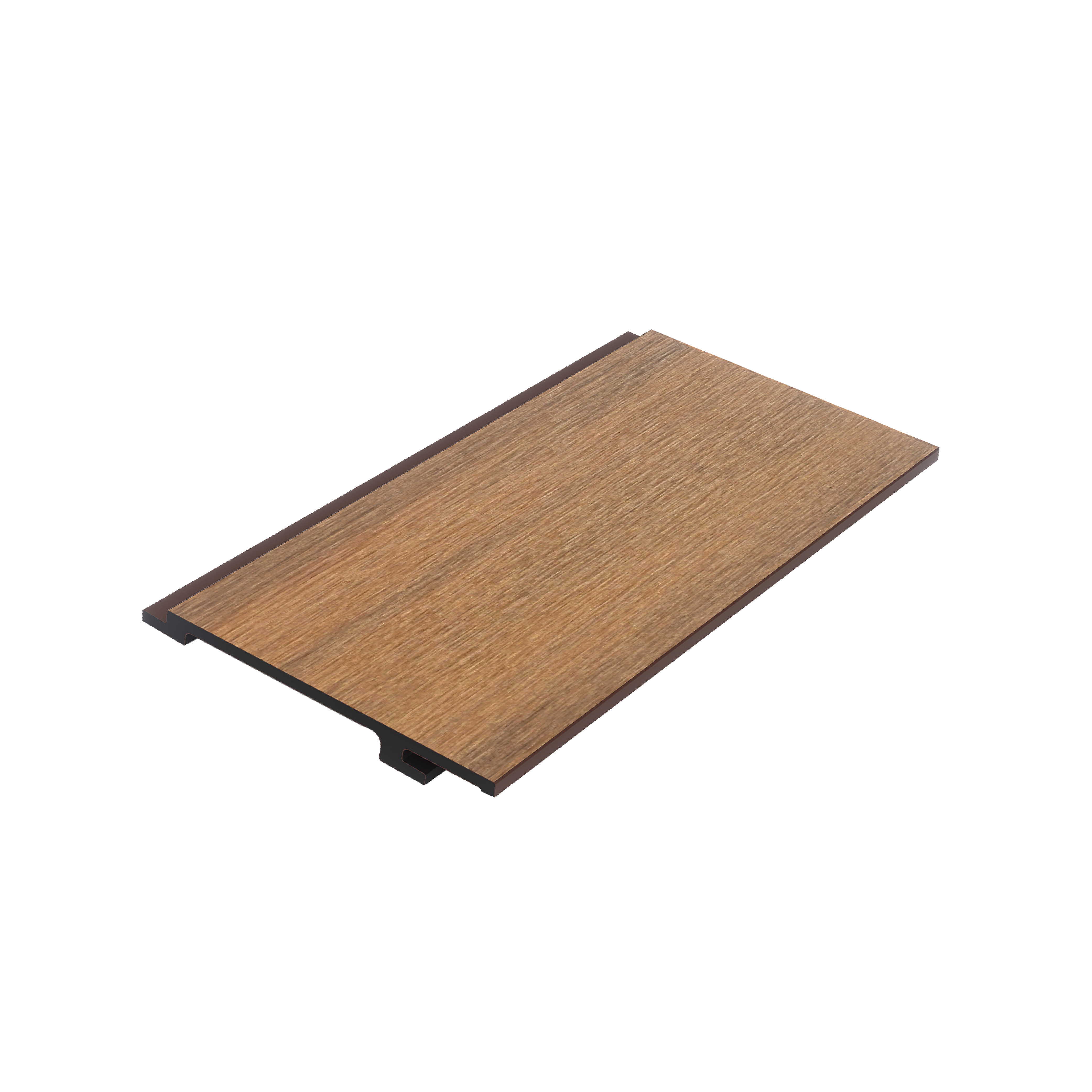

Plain Cladding Board
HLYC-017F
COLOR: Modern Iron Coffee
Specification
168*24mm
Length
3.66m
Weight
1.91kg/m
Surface
BR6
Warranty
25-Year Residential
Solid Wood Texture
Green and Sustainable
Diving-grade Waterproof
Low Maintenance
25 Years of Durability

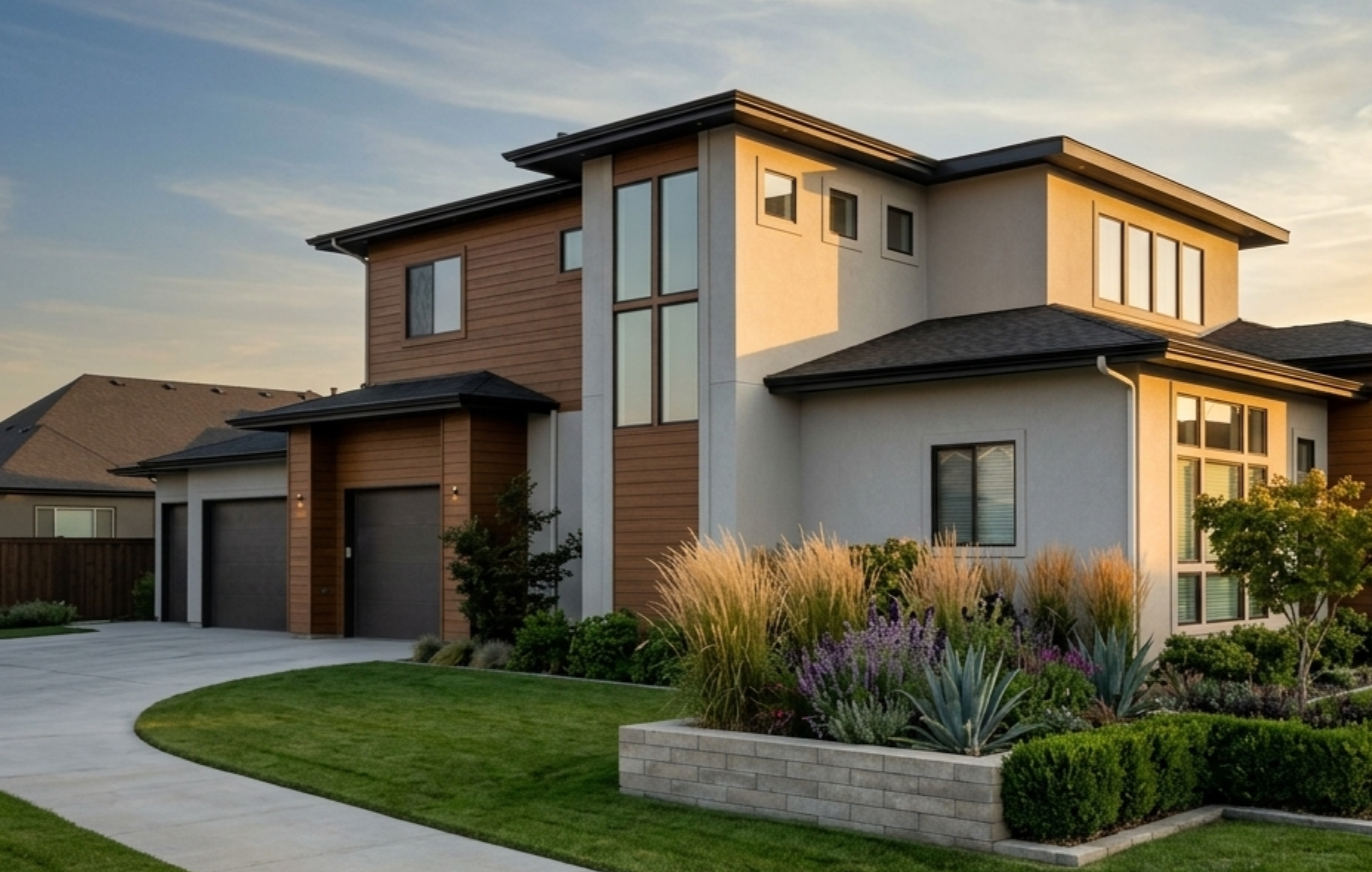

Yardcom Sunshine Wood is fully compatible with two extremely different materials, plant fibers and plastics.The appearance,grain,and touch are extremely close to solid wood,with strong weather resistance and durability,bringinga beautiful courtyard that is incredibly natural and maintenance free to your life.
SPECIFICATION

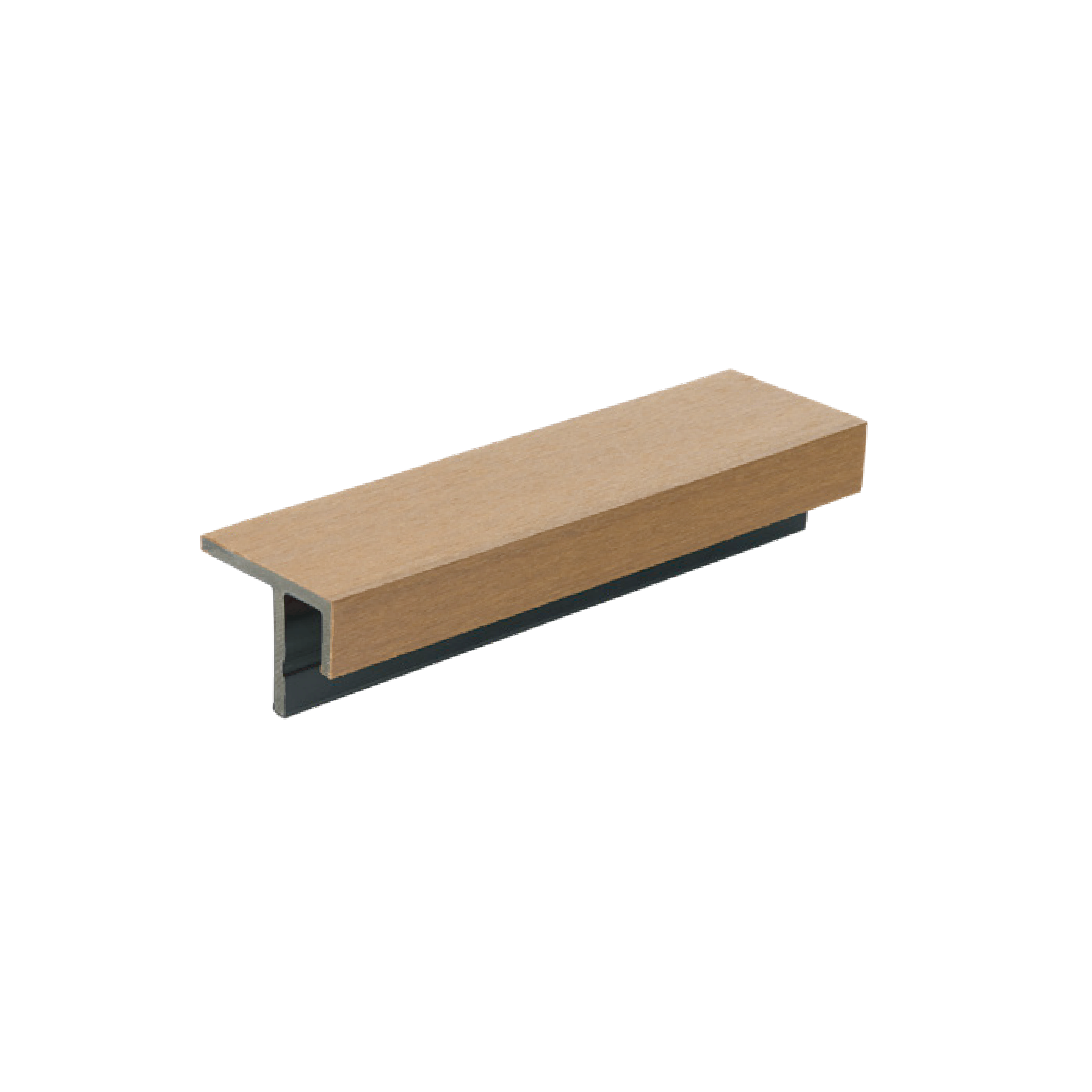

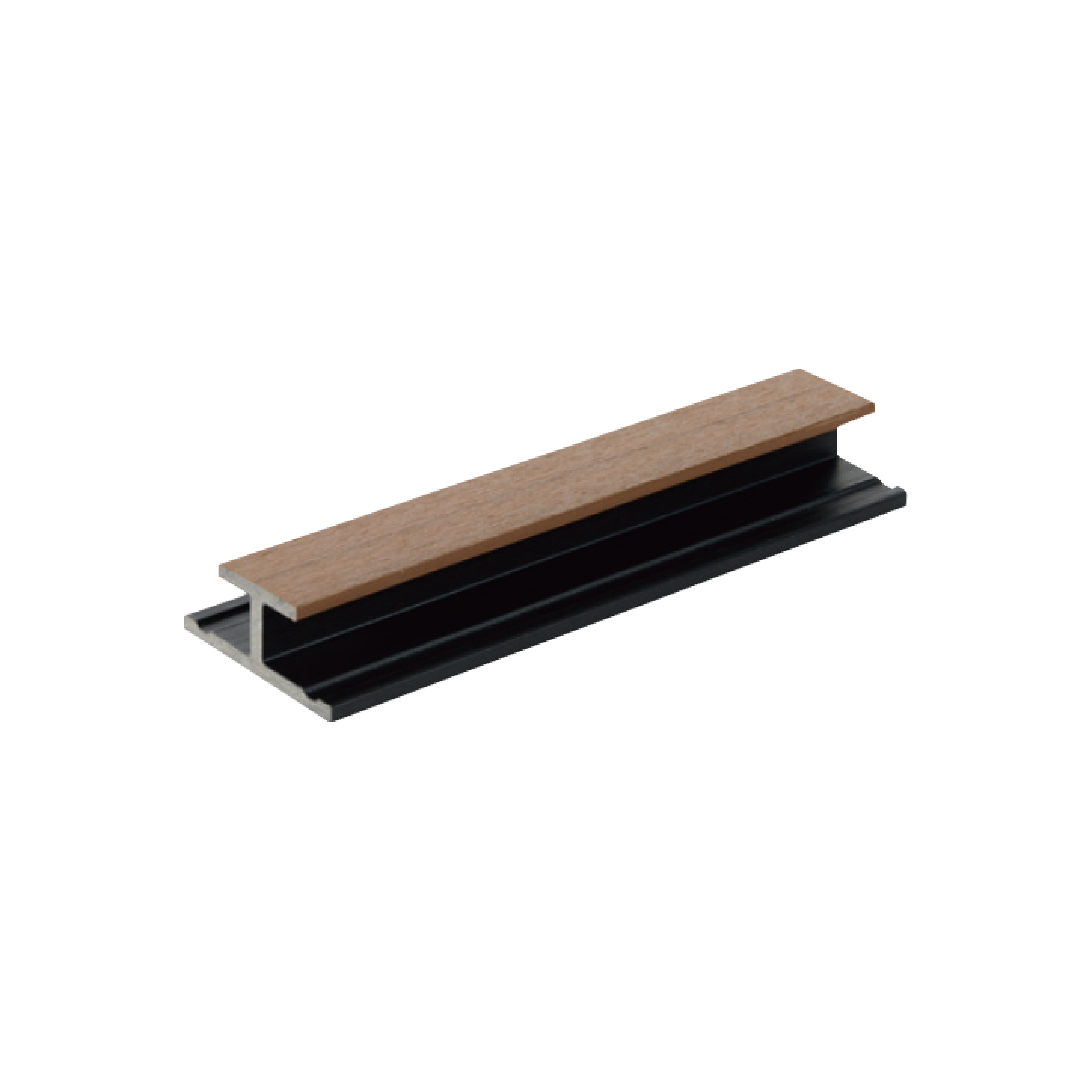

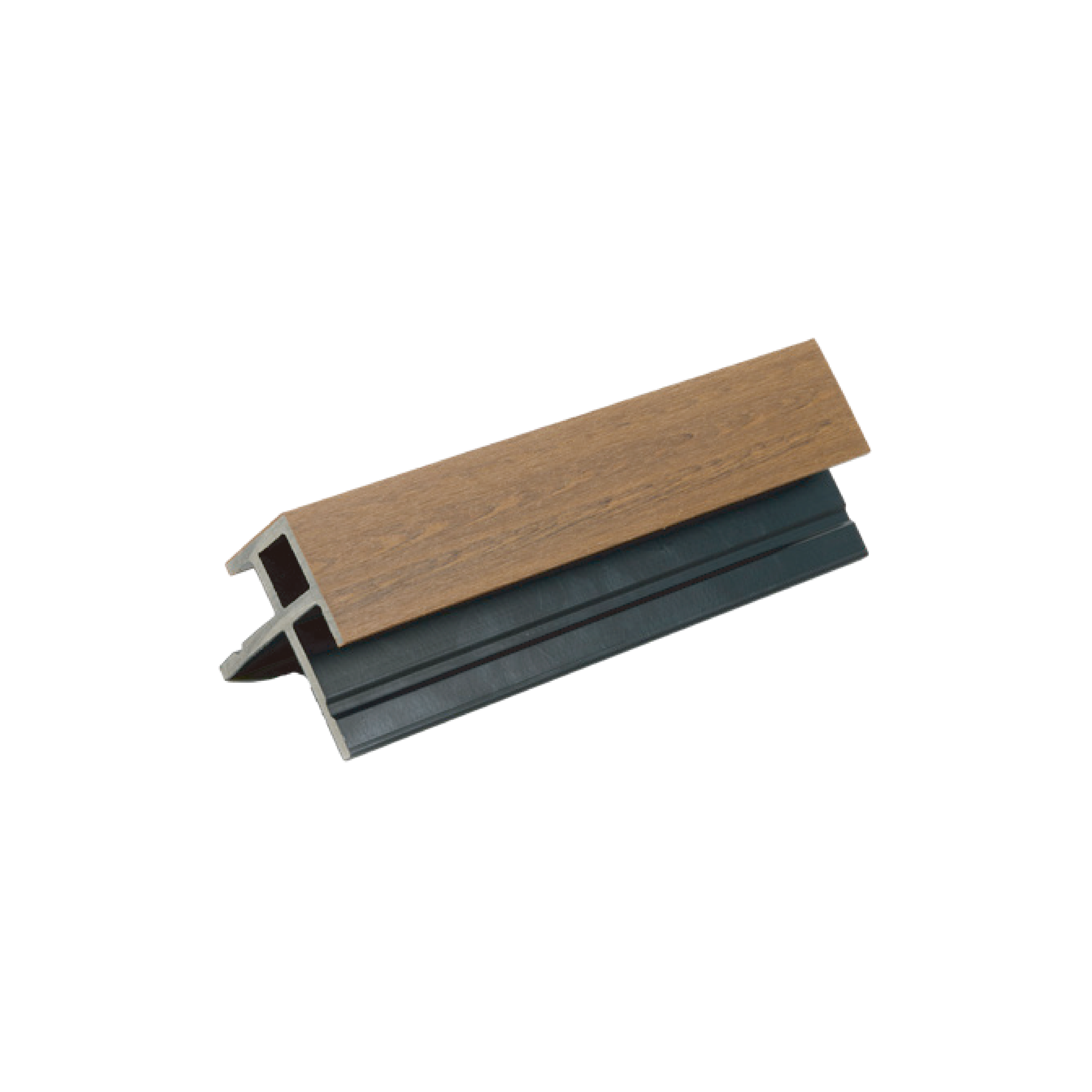

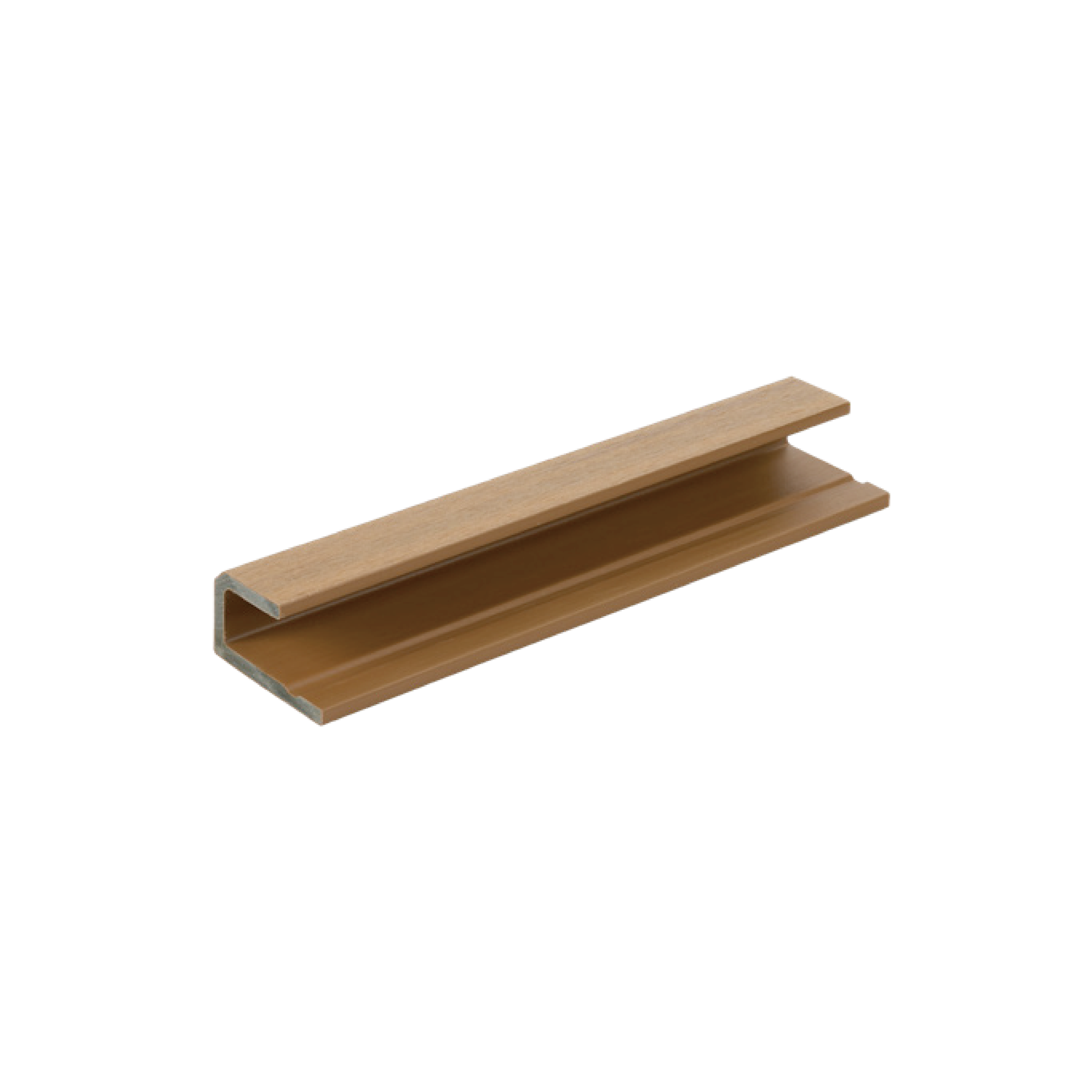

| Type | Plain Cladding Board | Butt Joint | F-Trim | Outer Corner | Inner Corner |
 |
 |
 |
 |
 |
|
| Model | HLYC-017F | HLYC-013F | HLYC-014F | HLYC-015F | HLYC-016F |
| Specification | 168*24mm | 89*38.5mm | 36*88.5mm | 98.5*98.5mm | 68.5*39mm |
| Length | 3.66m | 3.66m | 3.66m | 3.66m | 3.66m |
| Weight | 1.91kg/m | 1.34kg/m | 1.52kg/m | 2.37kg/m | 1.11kg/m |
| Surface | BR6 | BR6 | BR6 | BR6 | BR6 |
| Warranty | 25-Year Residential | 25-Year Residential | 25-Year Residential | 25-Year Residential | 25-Year Residential |
ACCESSORIES
| Model | HLPM-100(J) | HLPM-0168（J） | HLPM-117(I) | HLPM-120(I) |
 |
 |
 |
 |
|
| Type | Connecting Clip | Joint Clip | Locking Screw | Torx Countersunk Head Self-drilling Self-tapping Screw |
| Color | Black | Black | Origin | Painted ends |
| Specification | 40*36.22*16.7*1.2mm | 100*35*16.7mm | M4*47.2mm | 40*36.22*16.7*1.2mm |
| Material | 301 Stainless Steel | 301 Stainless Steel | 410 stainless steel | 410 Stainless Steel |

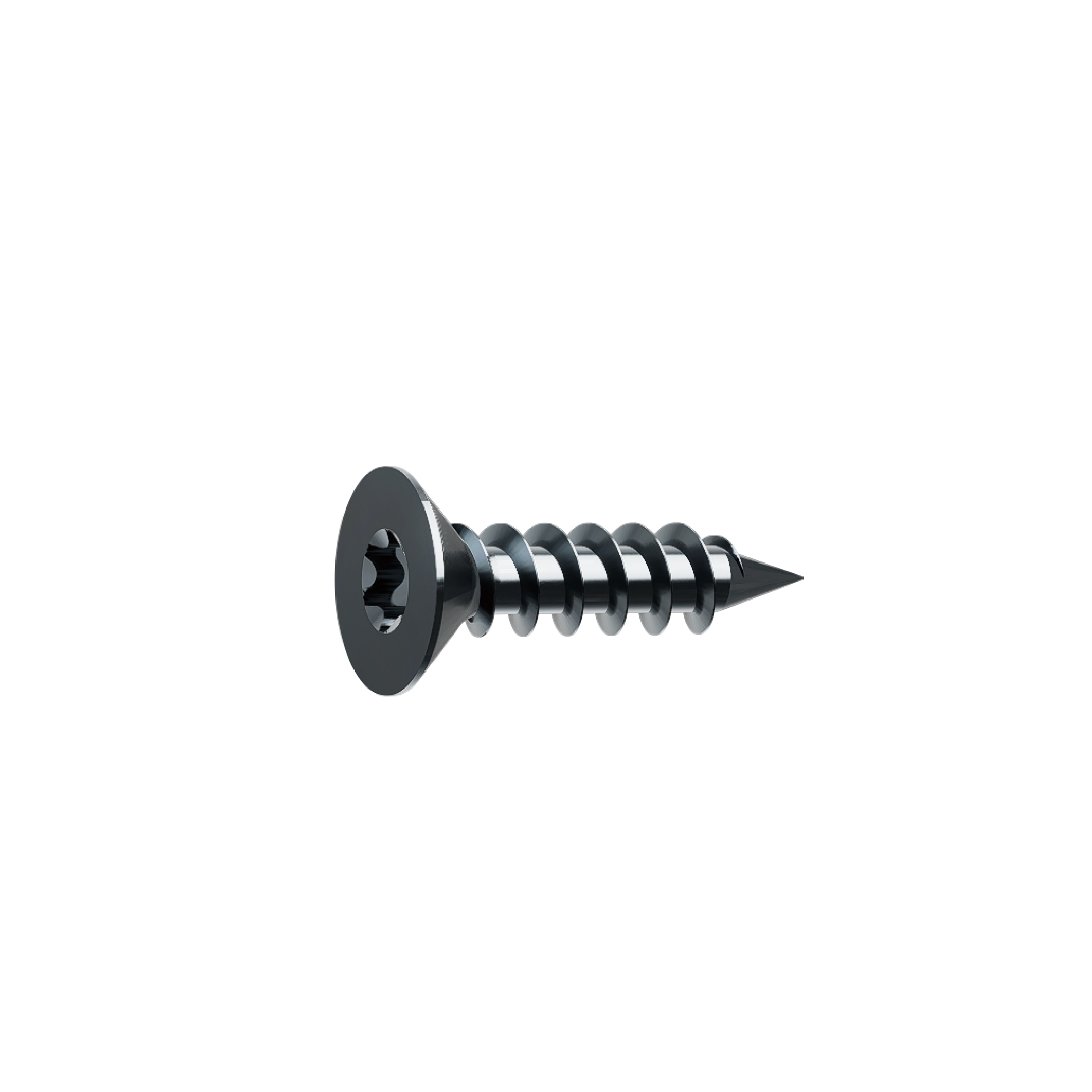

| Model | HLPM-115[I] | HLPM-116[I] | HLPP-052[C] | HLPP-053[C] | HLPK-0810 |
 |
 |
 |
 |
 |
|
| Type | Screw for Edge Boards | Clip Screw | Horizontal gasket | Vertical mounting spacer | Torx Flat Head Self-tapping Screw |
| Color | Painted ends | Origin | Black | Black | Black |
| Specification | M5*34.29mm | M5*48.5mm | 40*20*24.5mm | 40*17mm | M3*12mm |
| Material | 410 Stainless Steel | 410 stainless steel | / | / | 304 Stainless Steel |
