Louver
SELECT MODEL
HLHC-034B
HLHC-035B
HLHC-031B
HLHC-033B
HLHC-036B
HLHC-030B
HLHC-032B

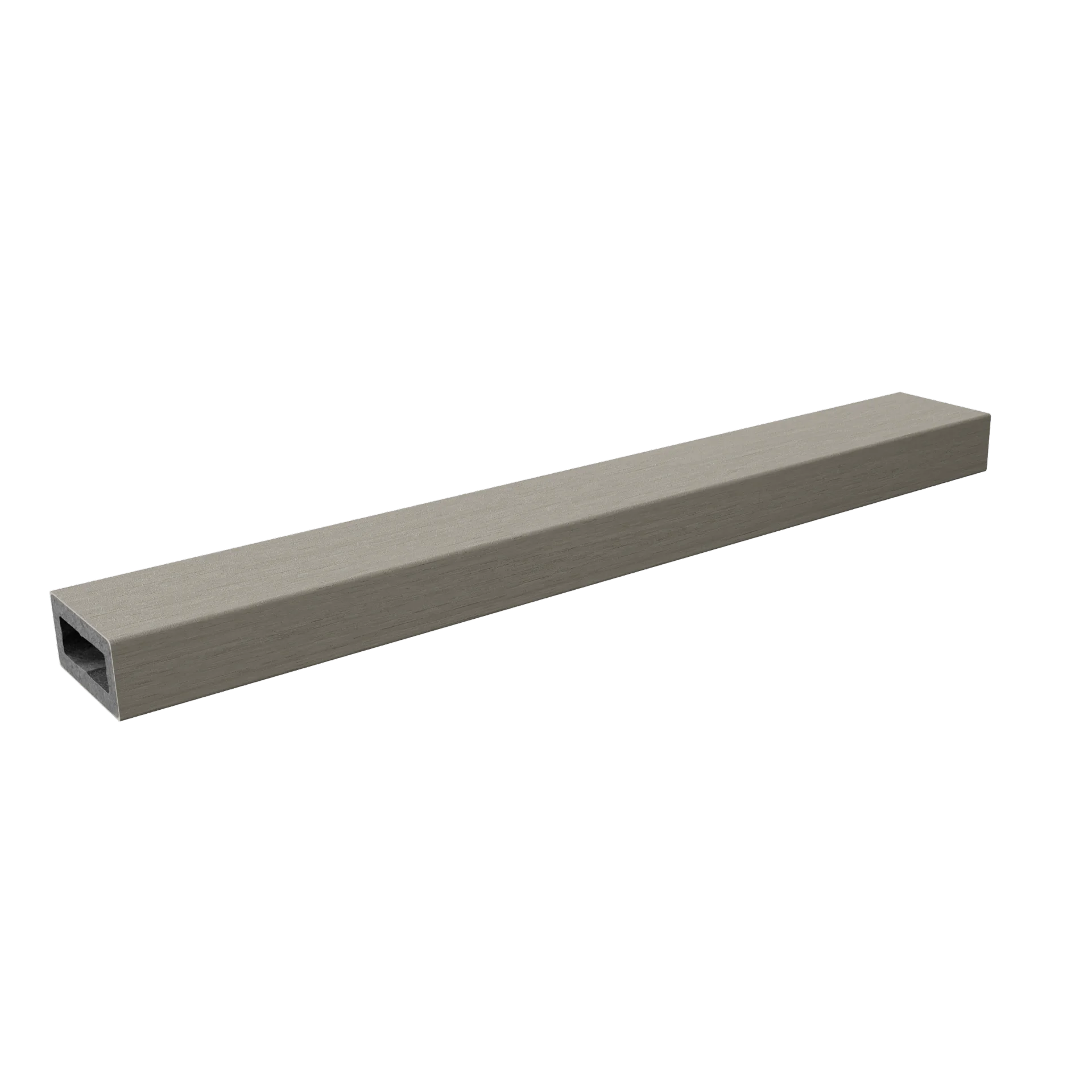

Specification

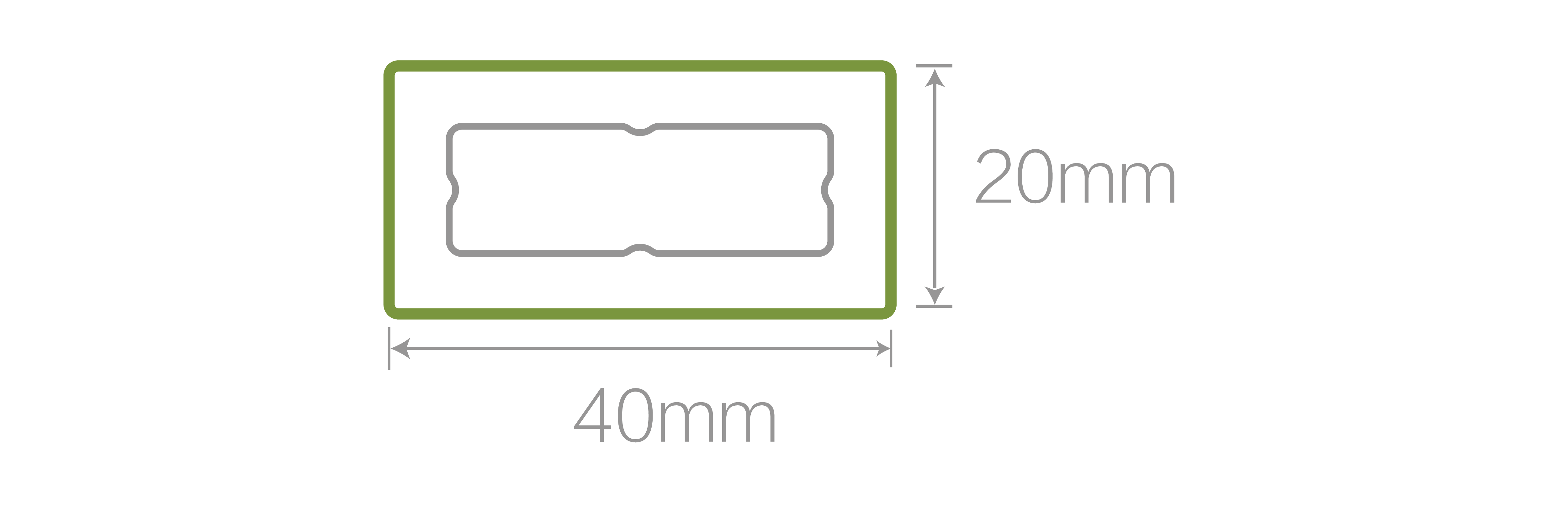

20*40mm
Length
5.8m
Weight
0.62kg/m
Surface
BR6
Warranty
25-Year Residential
Color can be customized

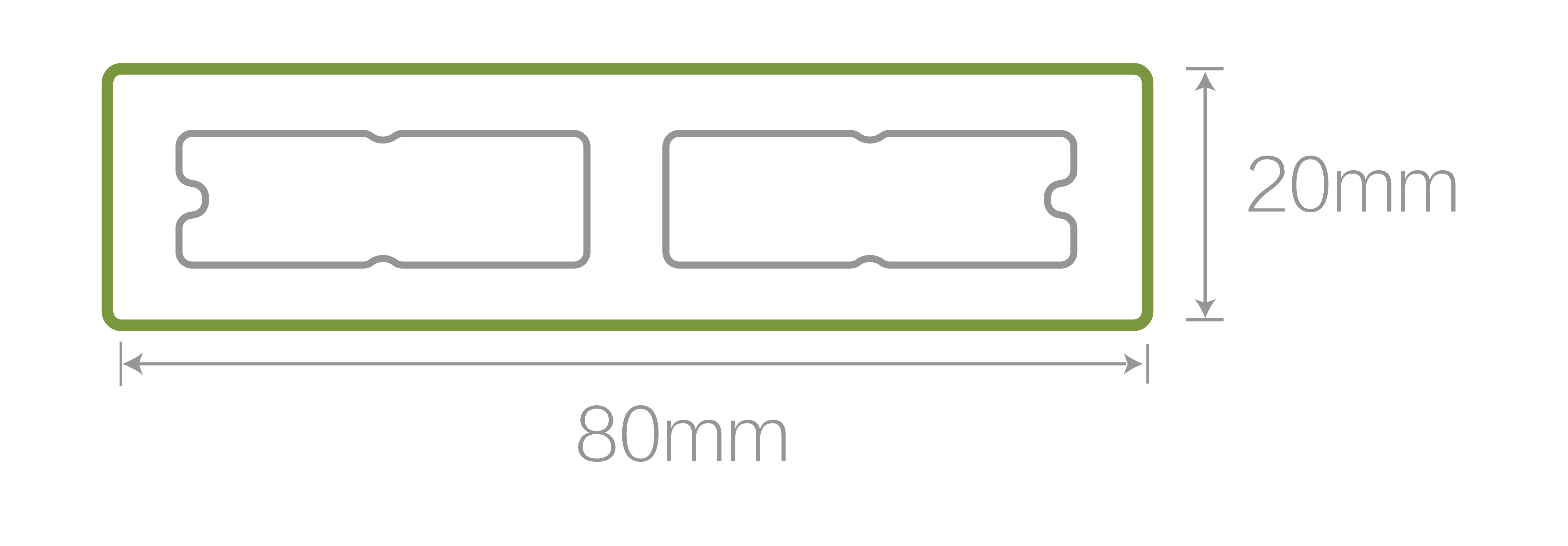

Specification
20*80mm
Length
5.8m
Weight
1.23kg/m
Surface
BR6
Warranty
25-Year Residential
Color can be customized

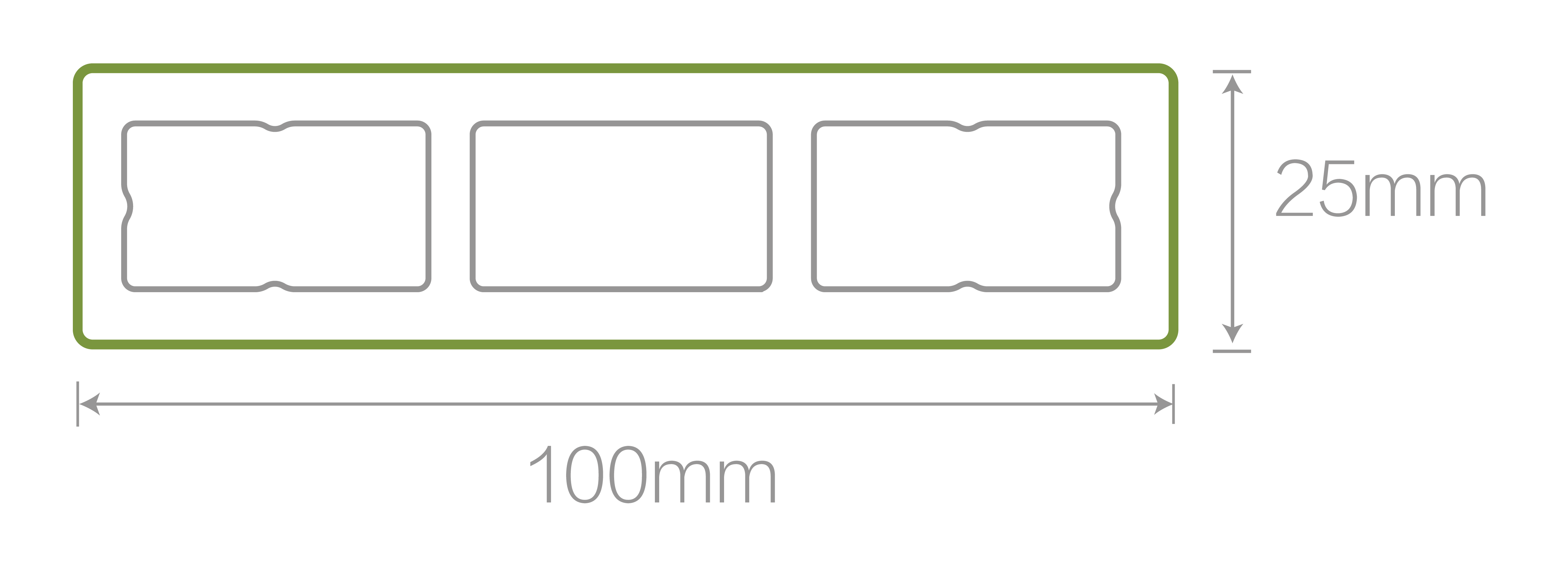

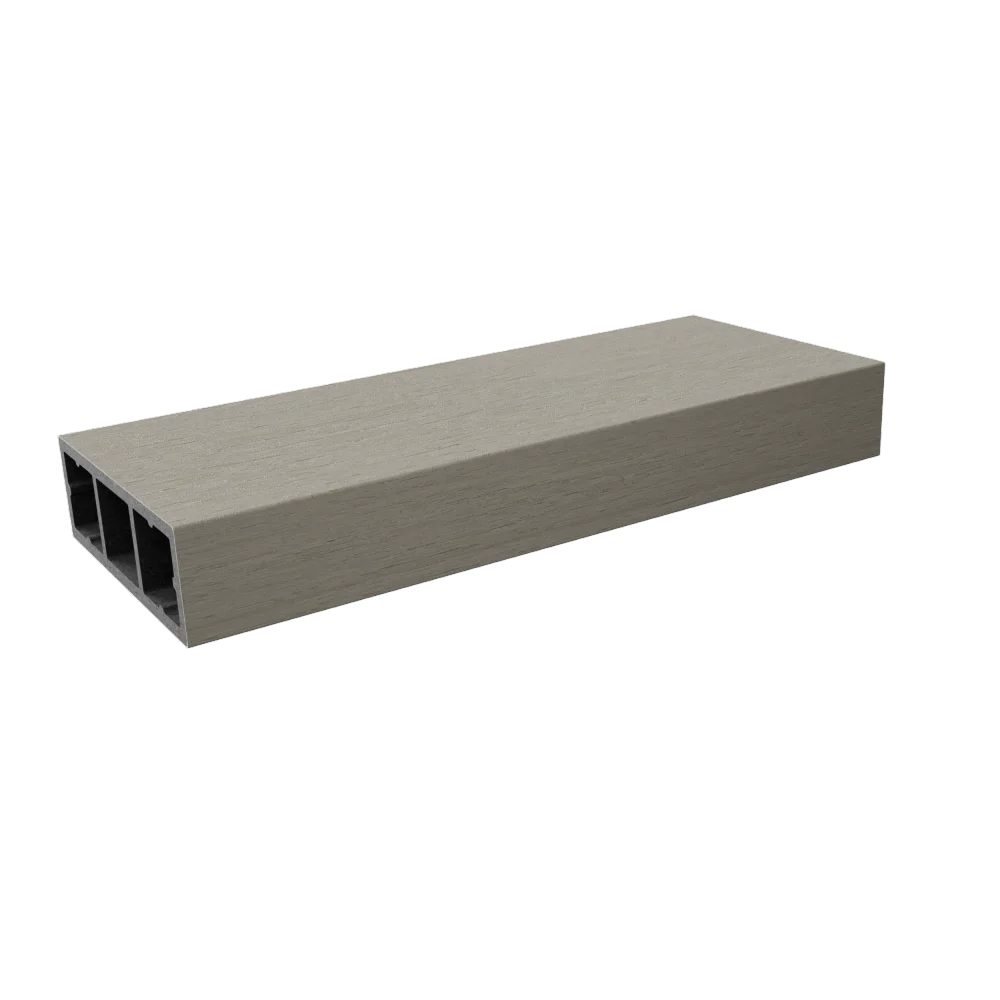

Specification
25*100mm
Length
5.8m
Weight
1.58kg/m
Surface
BR6
Warranty
25-Year Residential
Color can be customized
Specification

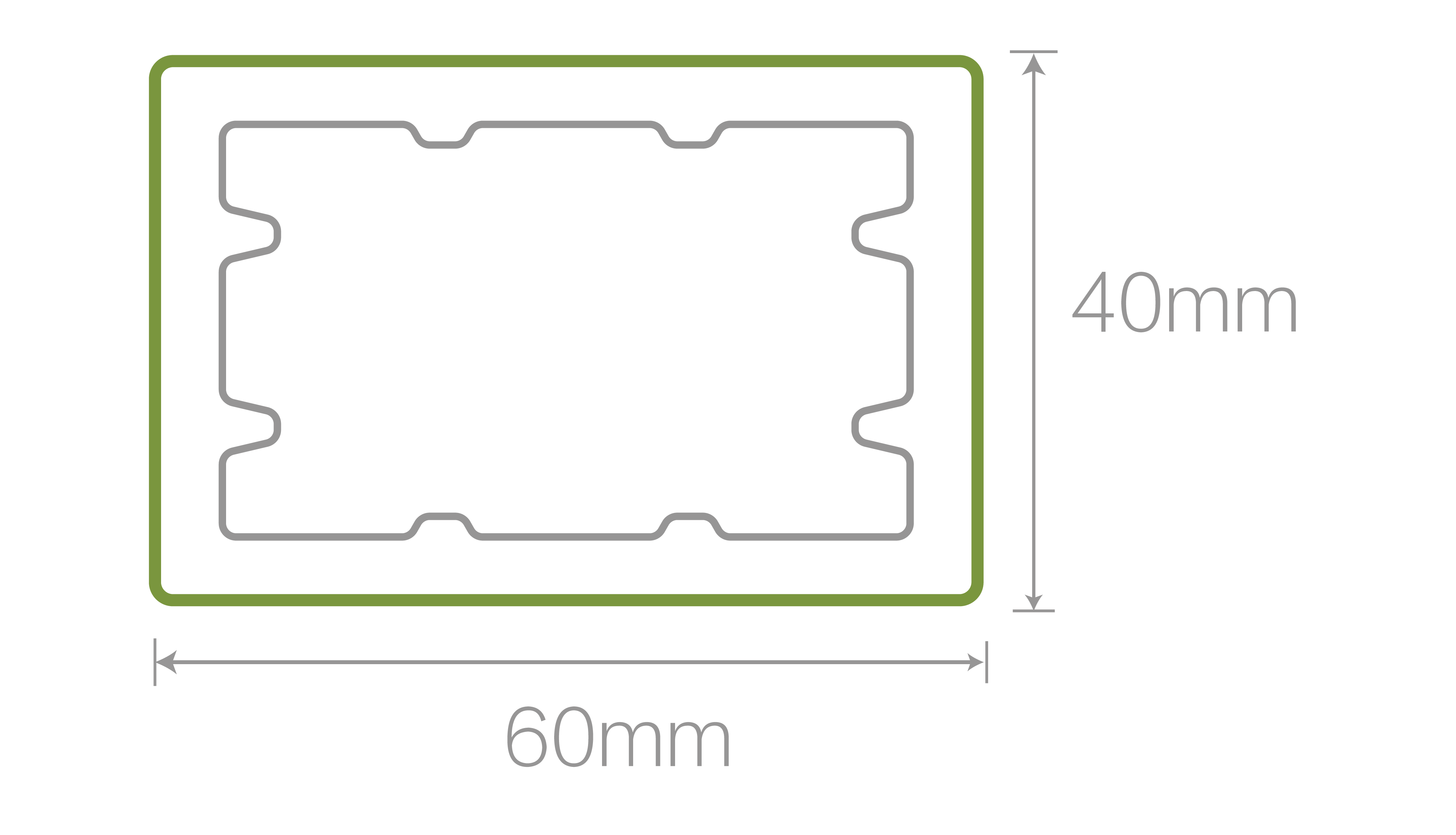

40*60mm
Length
5.8m
Weight
1.2kg/m
Surface
BR6
Warranty
25-Year Residential
Color can be customized
Specification

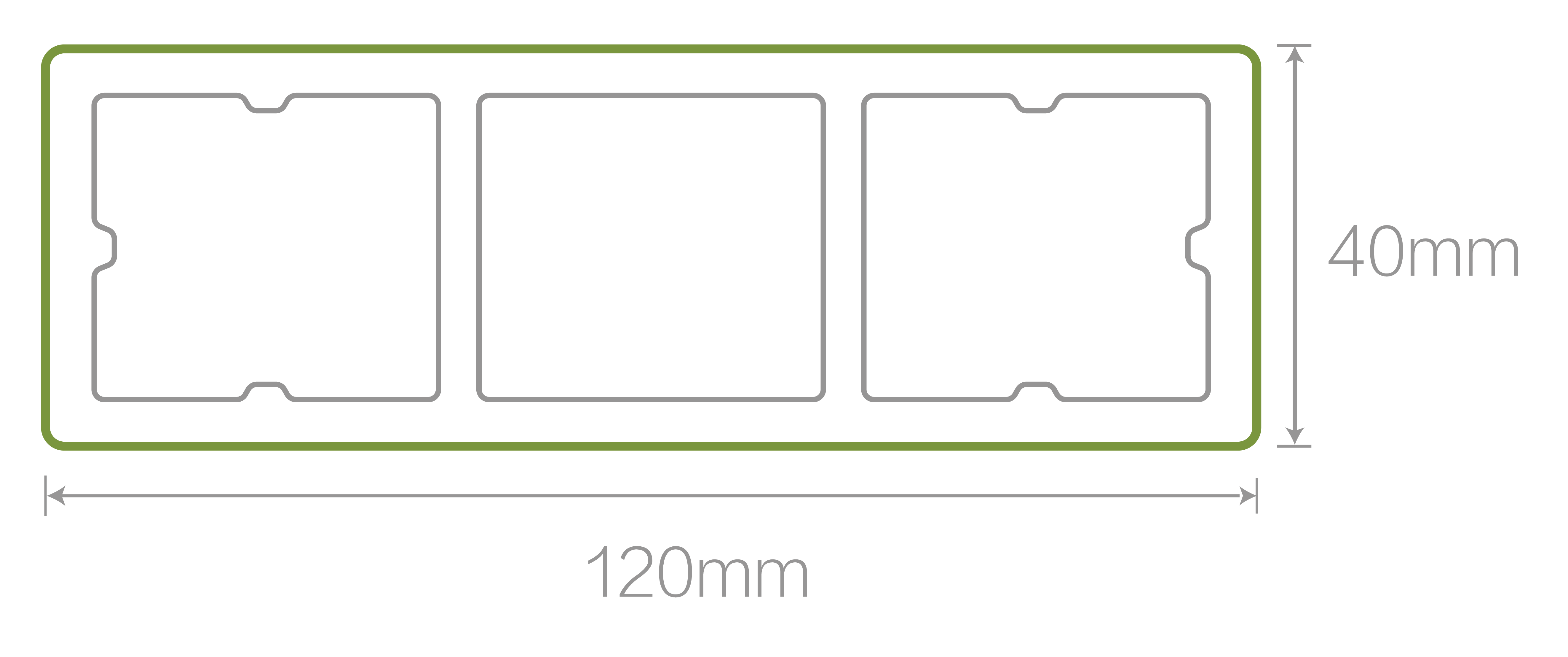

40*120mm
Length
5.8m
Weight
2.21kg/m
Surface
BR6
Warranty
25-Year Residential
Color can be customized
Specification

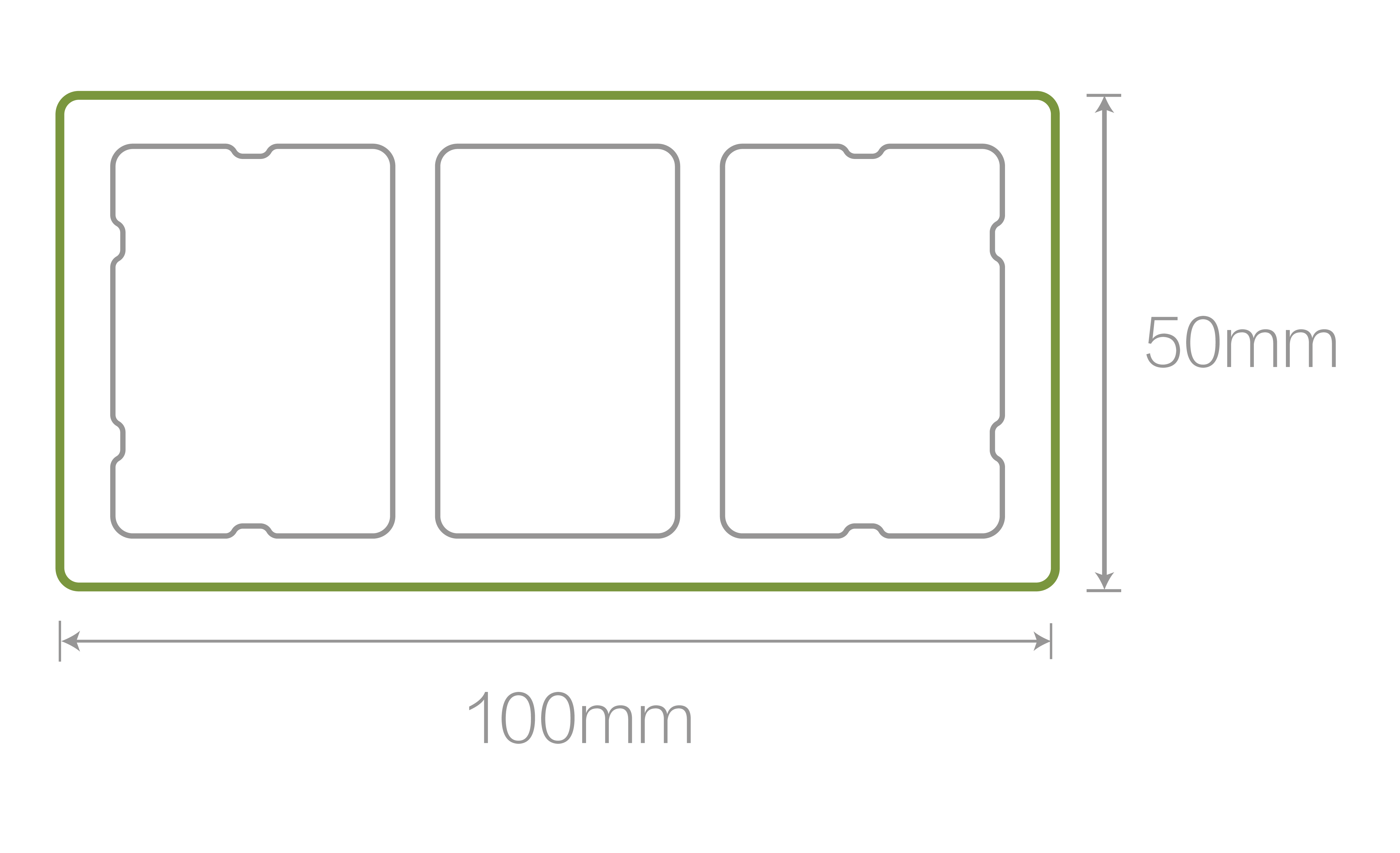

50*100mm
Length
5.8m
Weight
2.38kg/m
Surface
BR6
Warranty
25-Year Residential
Color can be customized

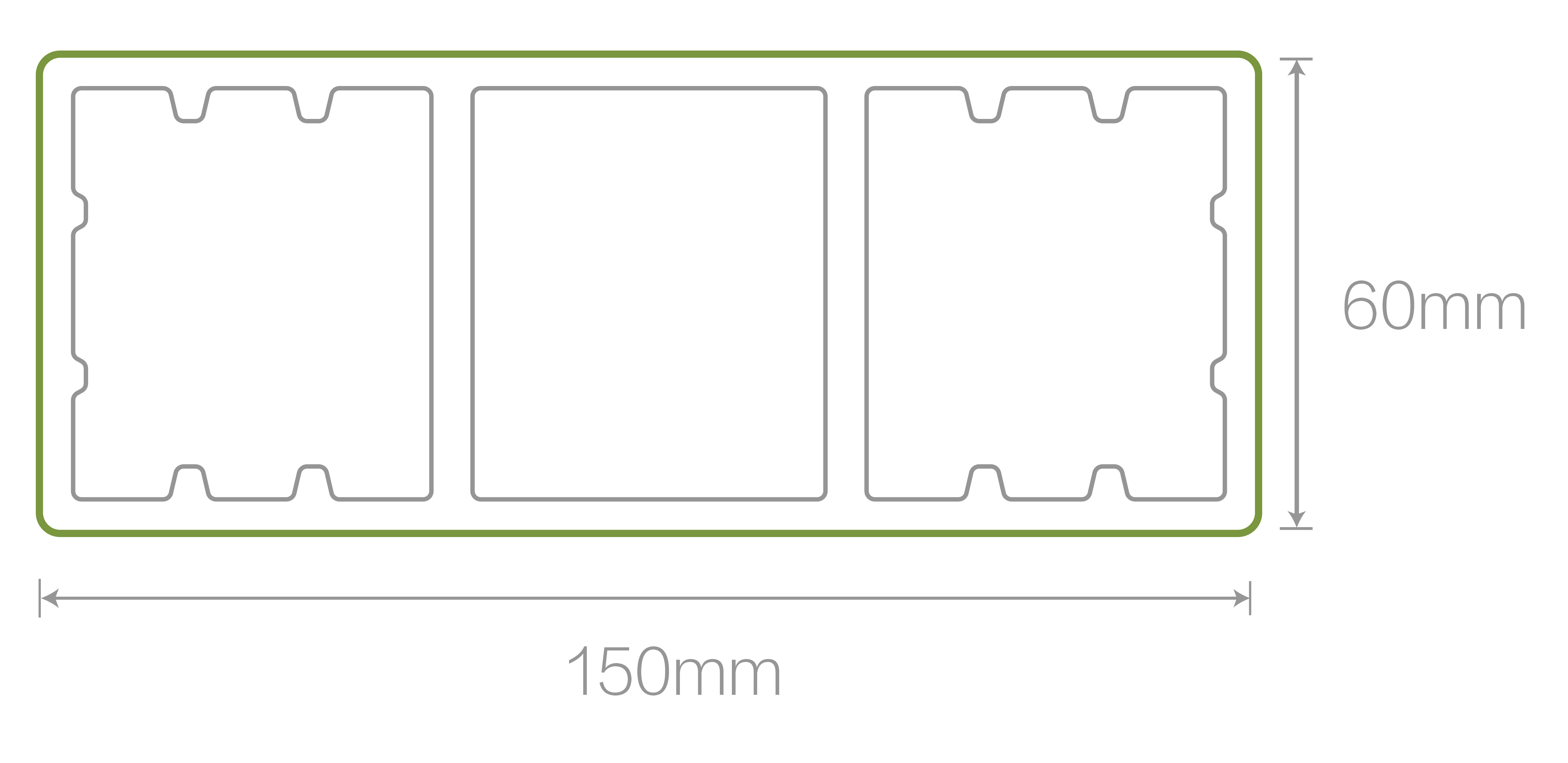

Specification
60*150mm
Length
5.8m
Weight
3.29kg/m
Surface
BR6
Warranty
25-Year Residential
Color can be customized
PRODUCT COLOR

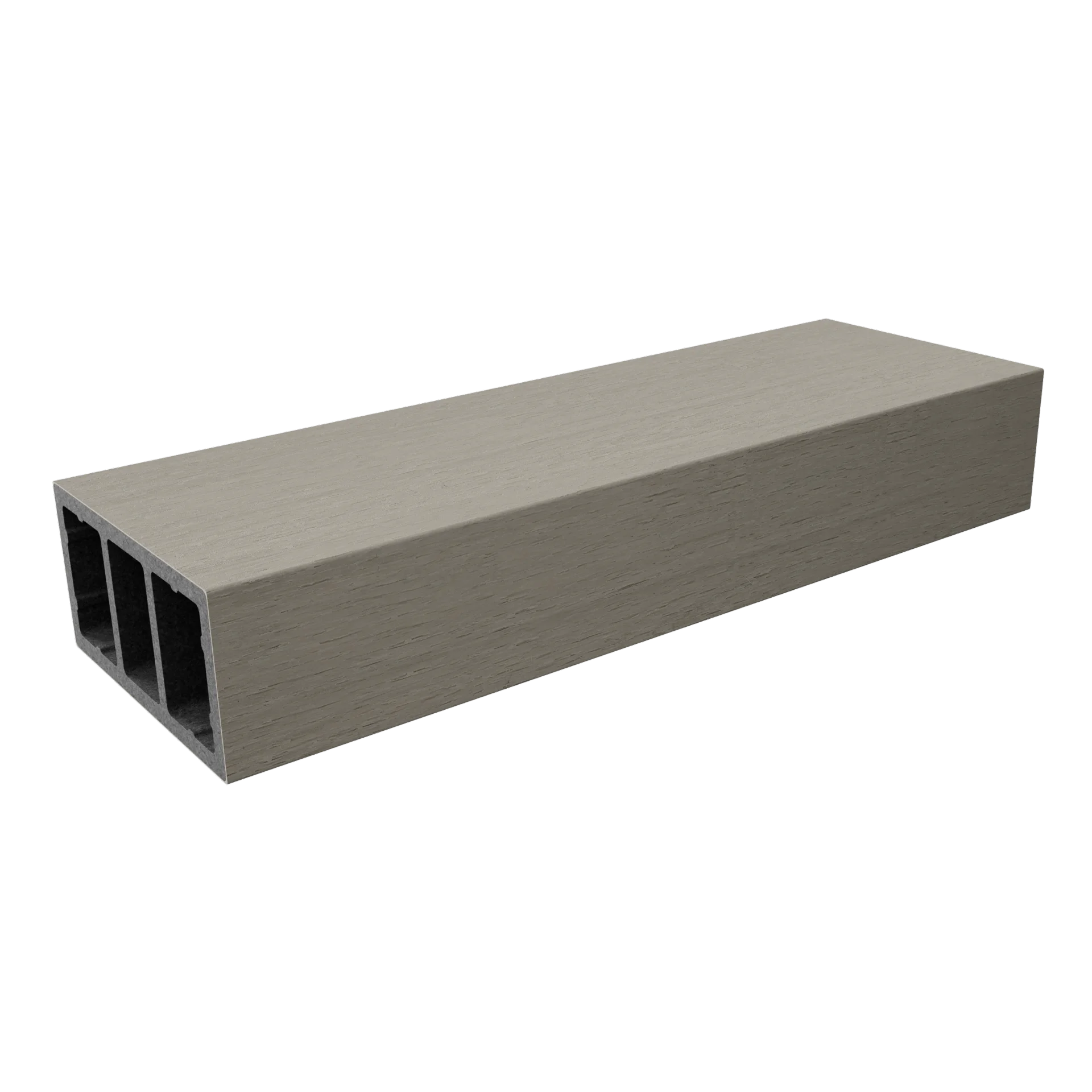

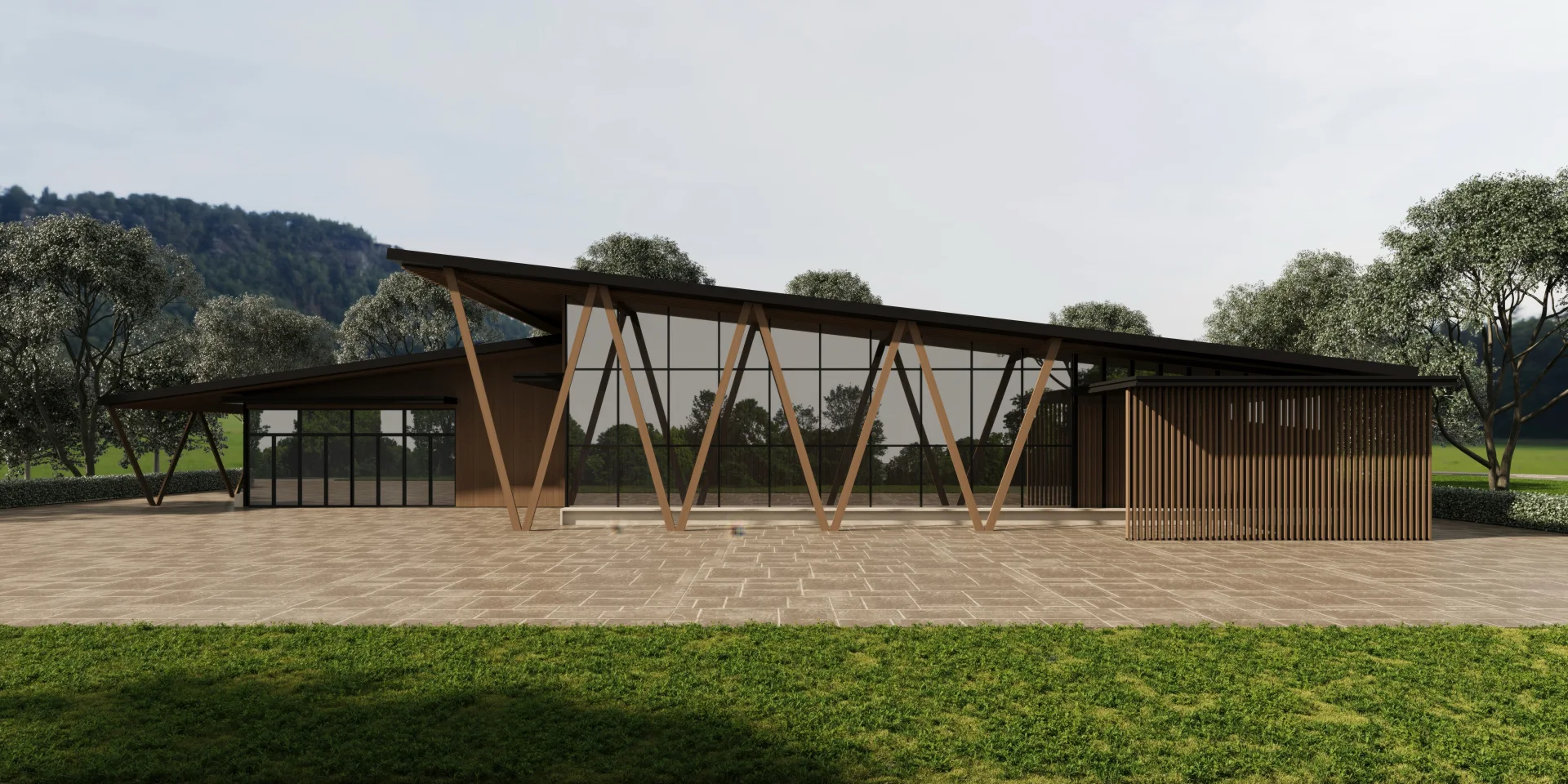

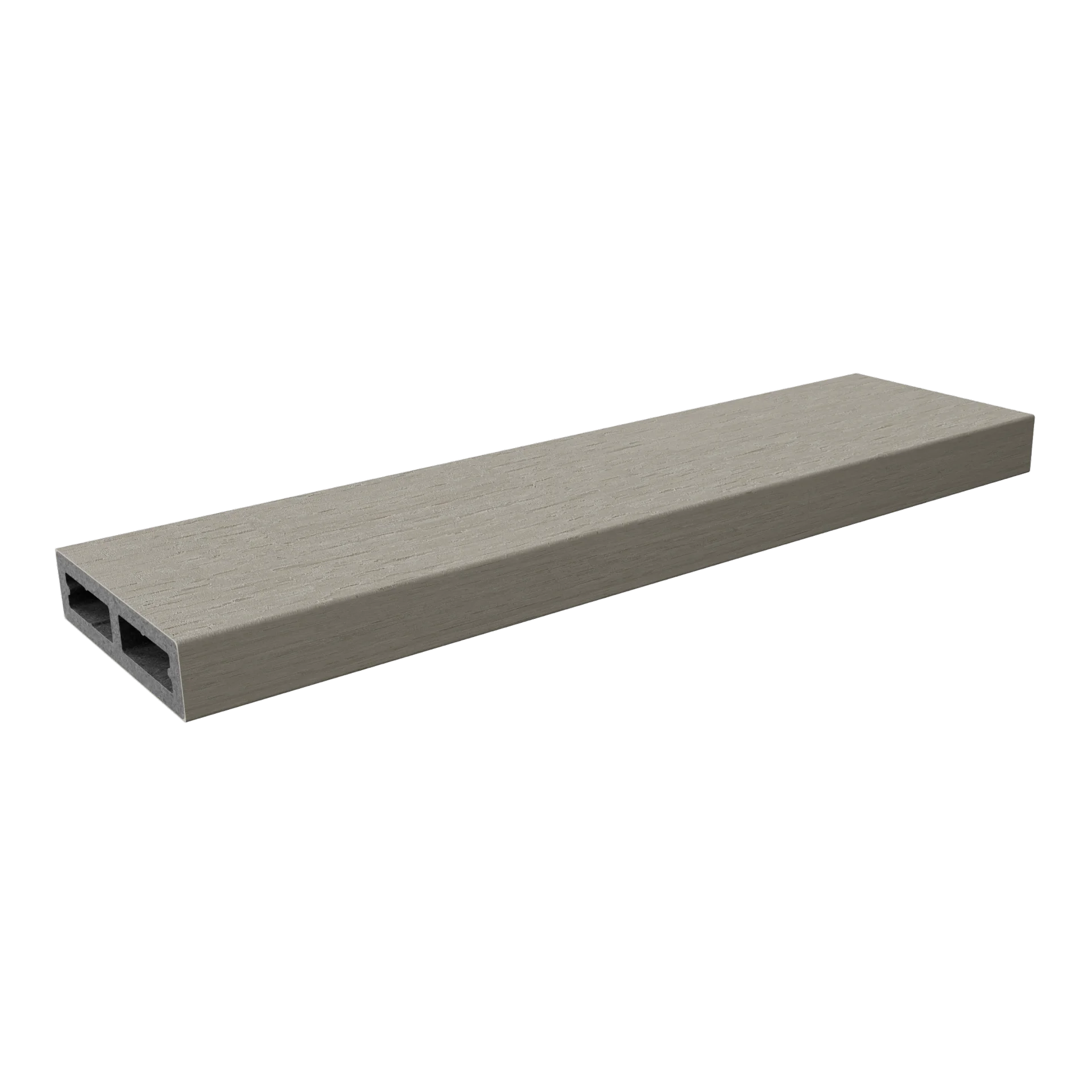

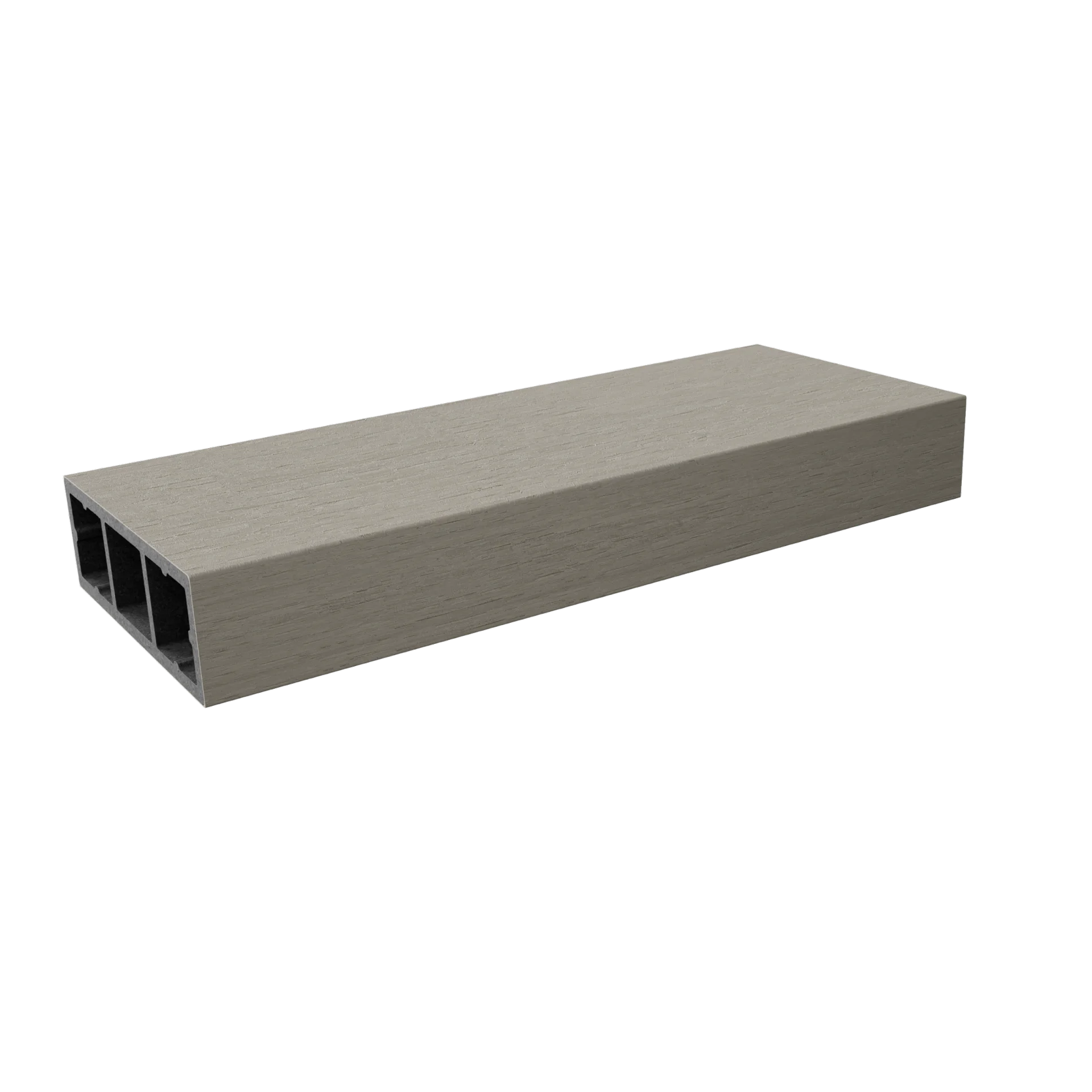

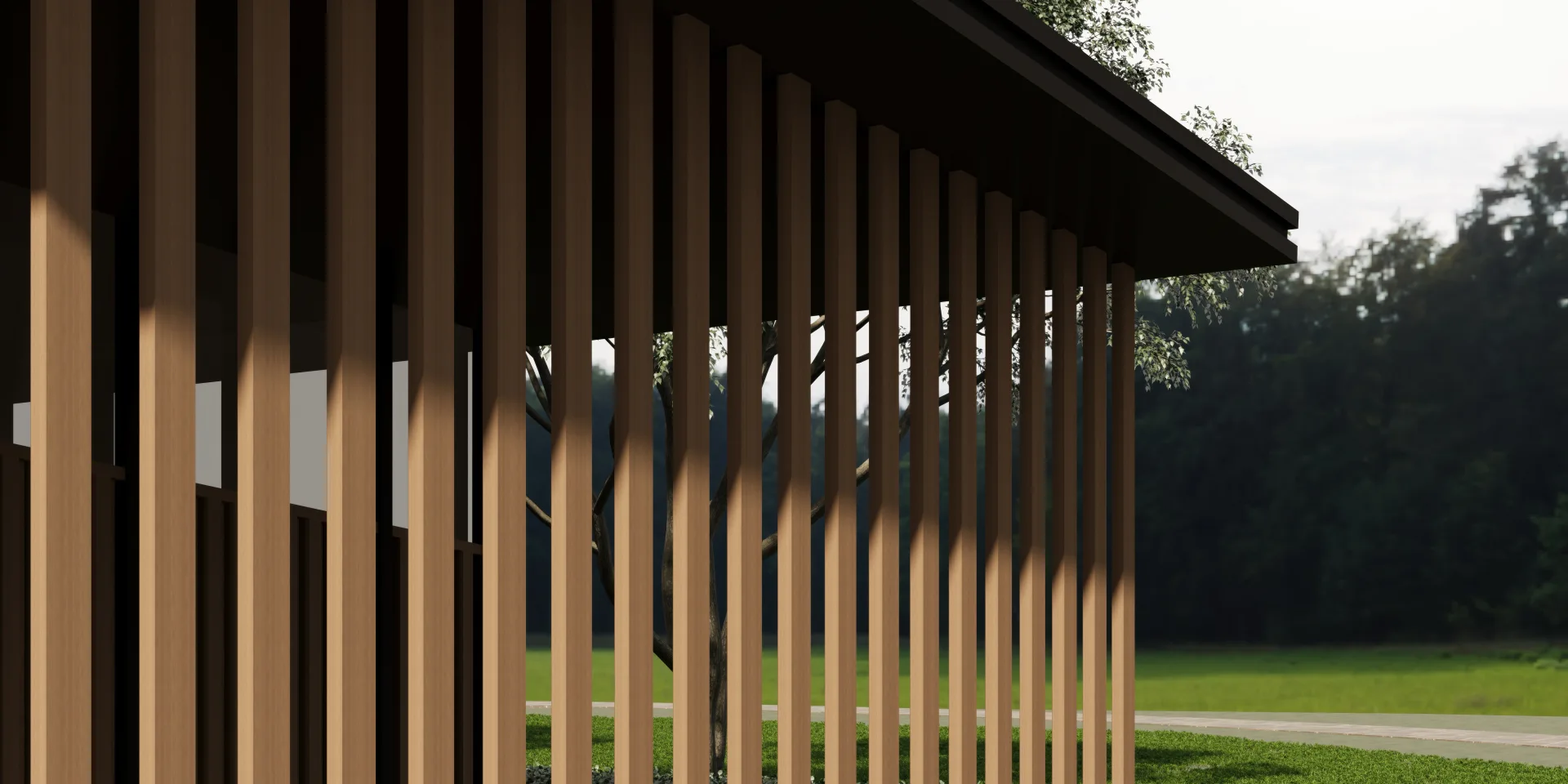

YARDCOM Wood-Plastic Louvers feature a pixel-level wood-grain finish that replicates the warmth and texture of natural timber. Lightweight yet strong, they are suitable for a wide range of architectural and landscaping applications, including façades, screens, partitions, gates, and pergolas, creating natural and inviting spaces. Offering reliable weather resistance, the louvers resist corrosion and fading, maintaining a consistent appearance under prolonged exposure to sunlight and rain. With dependable structural performance and dimensional stability, they deliver a practical balance of natural aesthetics and lasting durability.
SPECIFICATION
| Model | HLHC-034B | HLHC-035B | HLHC-031B | HLHC-033B |
 |
 |
 |
 |
|
| Specification | 20*40mm | 20*80mm | 25*100mm | 40*60mm |
| Length | 5.8m | 5.8m | 5.8m | 5.8m |
| Weight | 0.62kg/m | 1.23kg/m | 1.58kg/m | 1.20kg/m |
| Surface | BR6 | BR6 | BR6 | BR6 |
| Warranty | 25-Year Residential | 25-Year Residential | 25-Year Residential | 25-Year Residential |
| Model | HLHC-036B | HLHC-030B | HLHC-032B |
 |
 |
 |
|
| Specification | 40*120mm | 50*100mm | 60*150mm |
| Length | 5.8m | 5.8m | 5.8m |
| Weight | 2.21kg/m | 2.38kg/m | 3.29kg/m |
| Surface | BR6 | BR6 | BR6 |
| Warranty | 25-Year Residential | 25-Year Residential | 25-Year Residential |
ACCESSORIESS

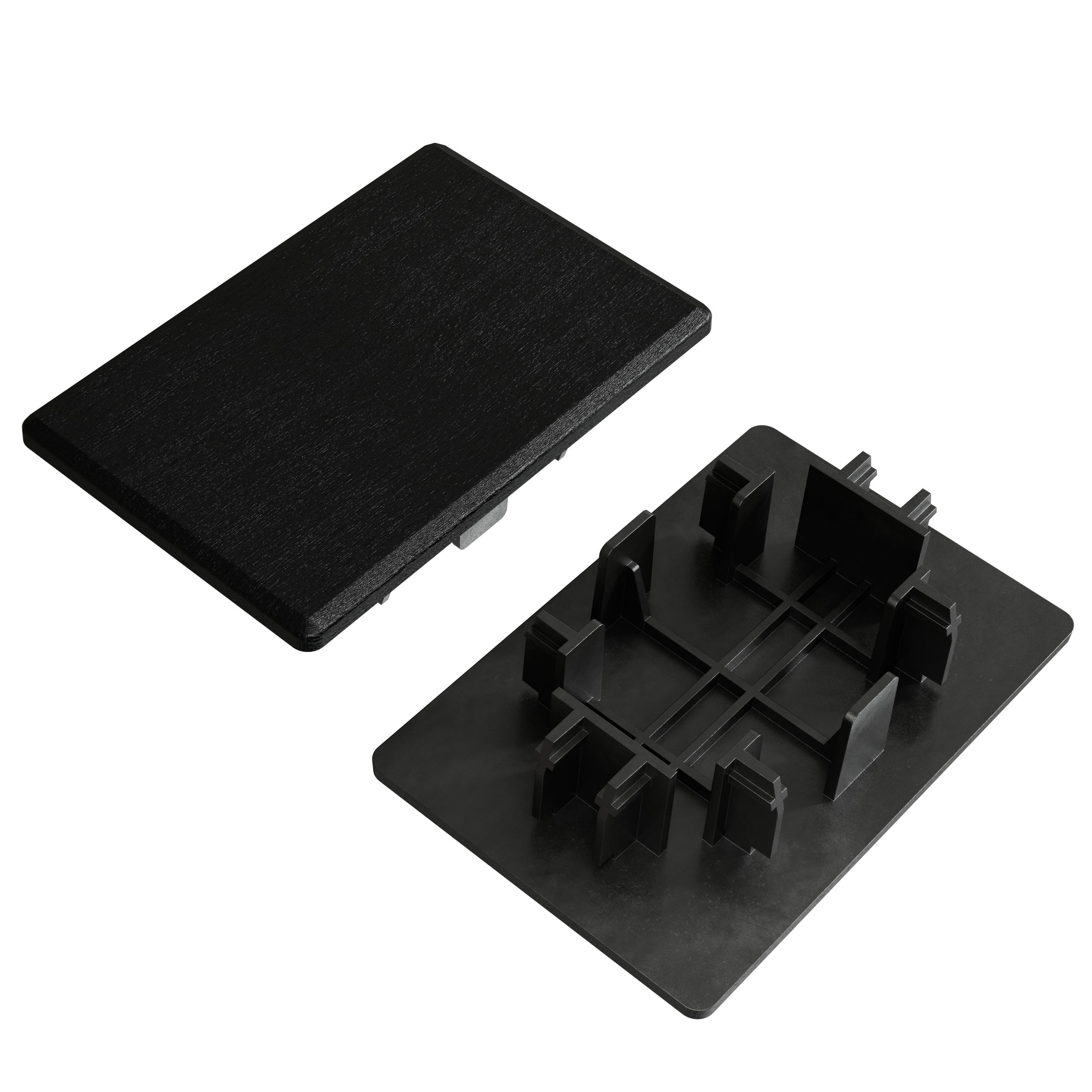

| Model | HLPK-0645 | HLPK-0646 | HLPK-0647 | HLPK-0667 |
 |
 |
 |
 |
|

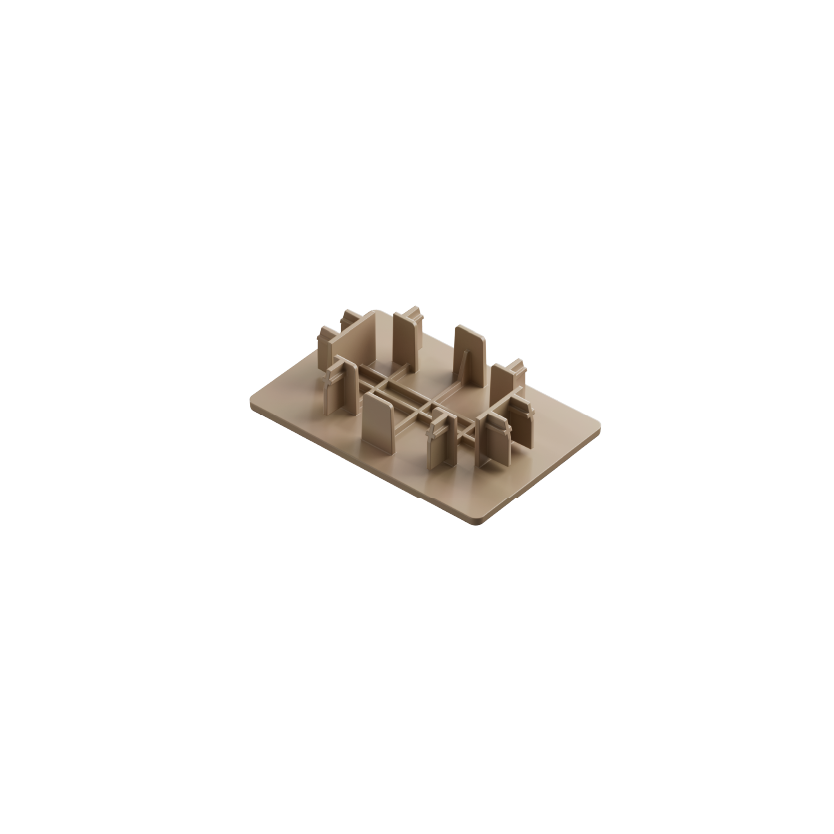

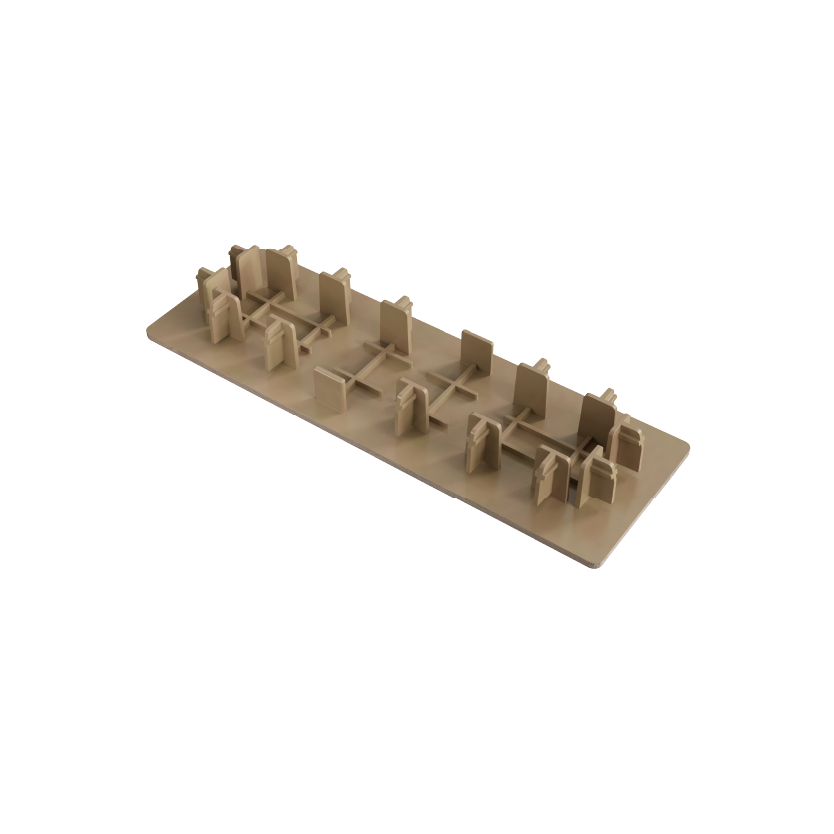

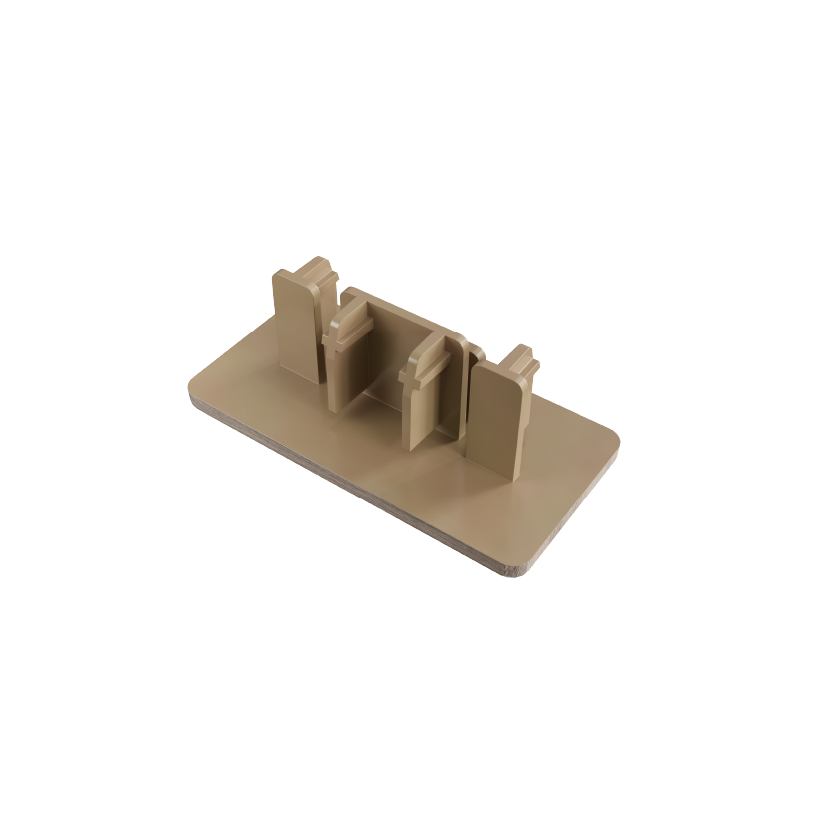

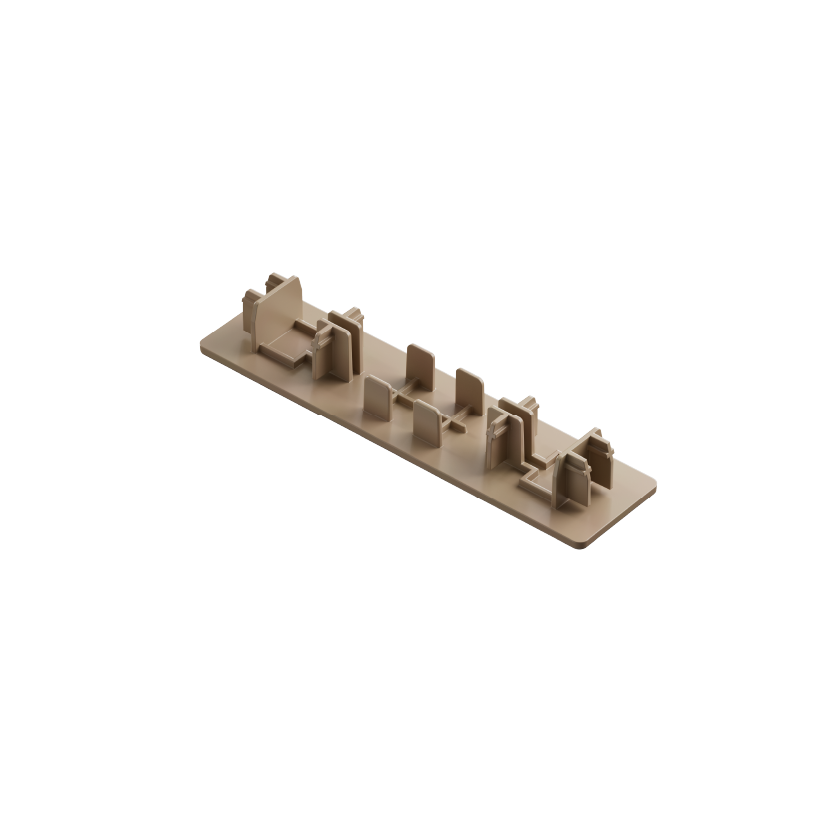

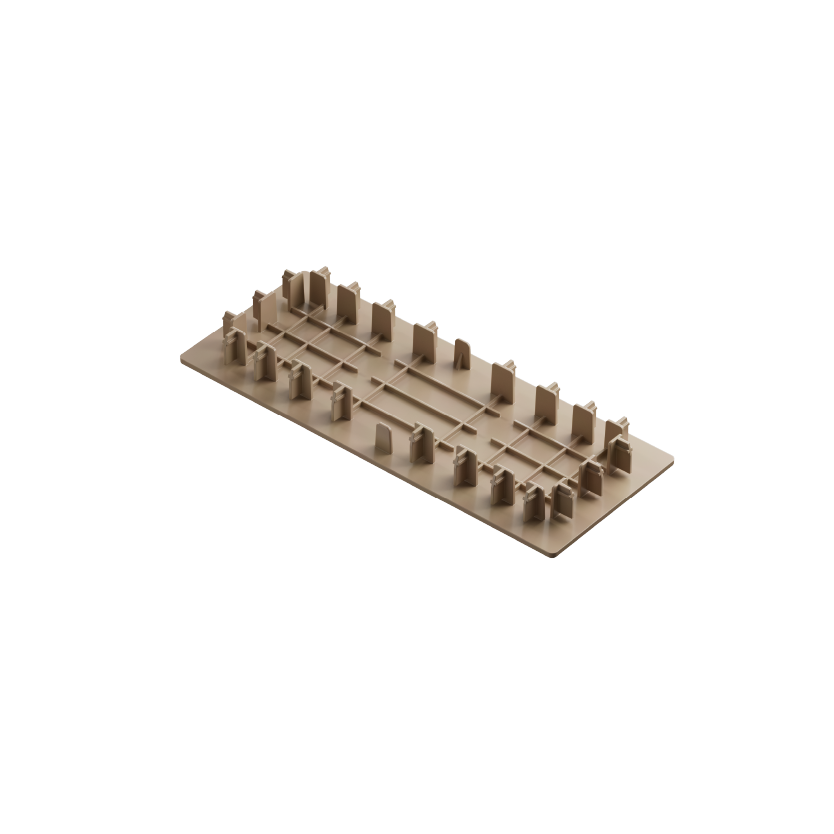

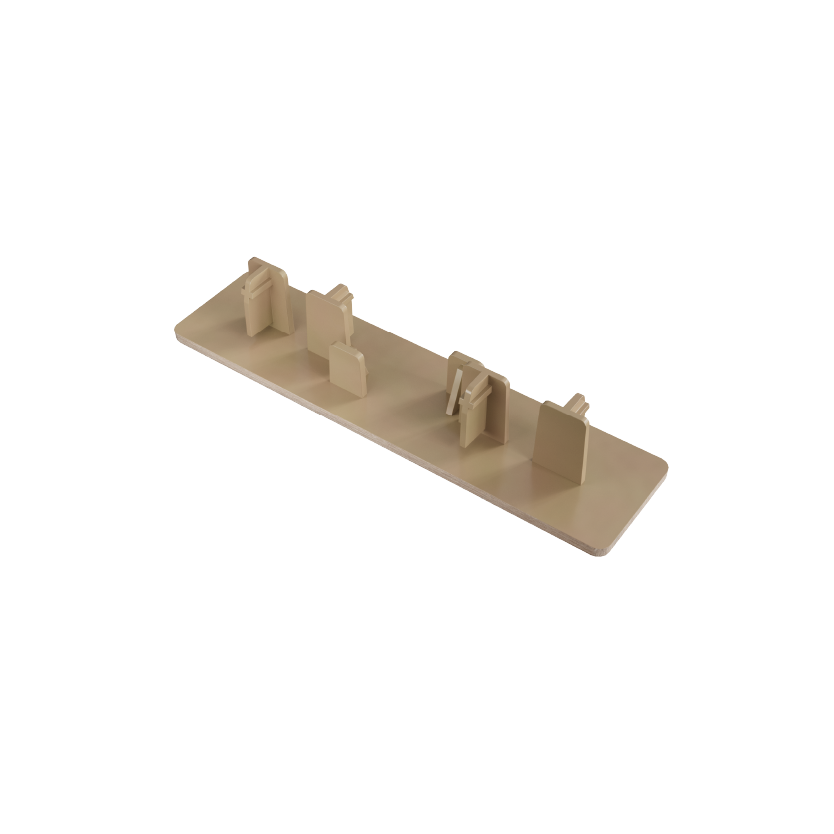

| Type | 2040 End cap | 2080 End cap | 25100 End cap | 4060 End cap |
| Color | Louver's color | Louver's color | Louver's color | Louver's color |
| Specification | 40.5*20.4*14.77mm | 80.5*20.4*14.77mm | 100.5*25.4*14.77mm | 60.5*40.4*14.77mm |
| Material | HDPE | HDPE | HDPE | HDPE |
| Model | HLPK-0648 | HLPK-0644 | HLPK-0649 | HLPM-0185 |
 |
 |
 |
 |
|

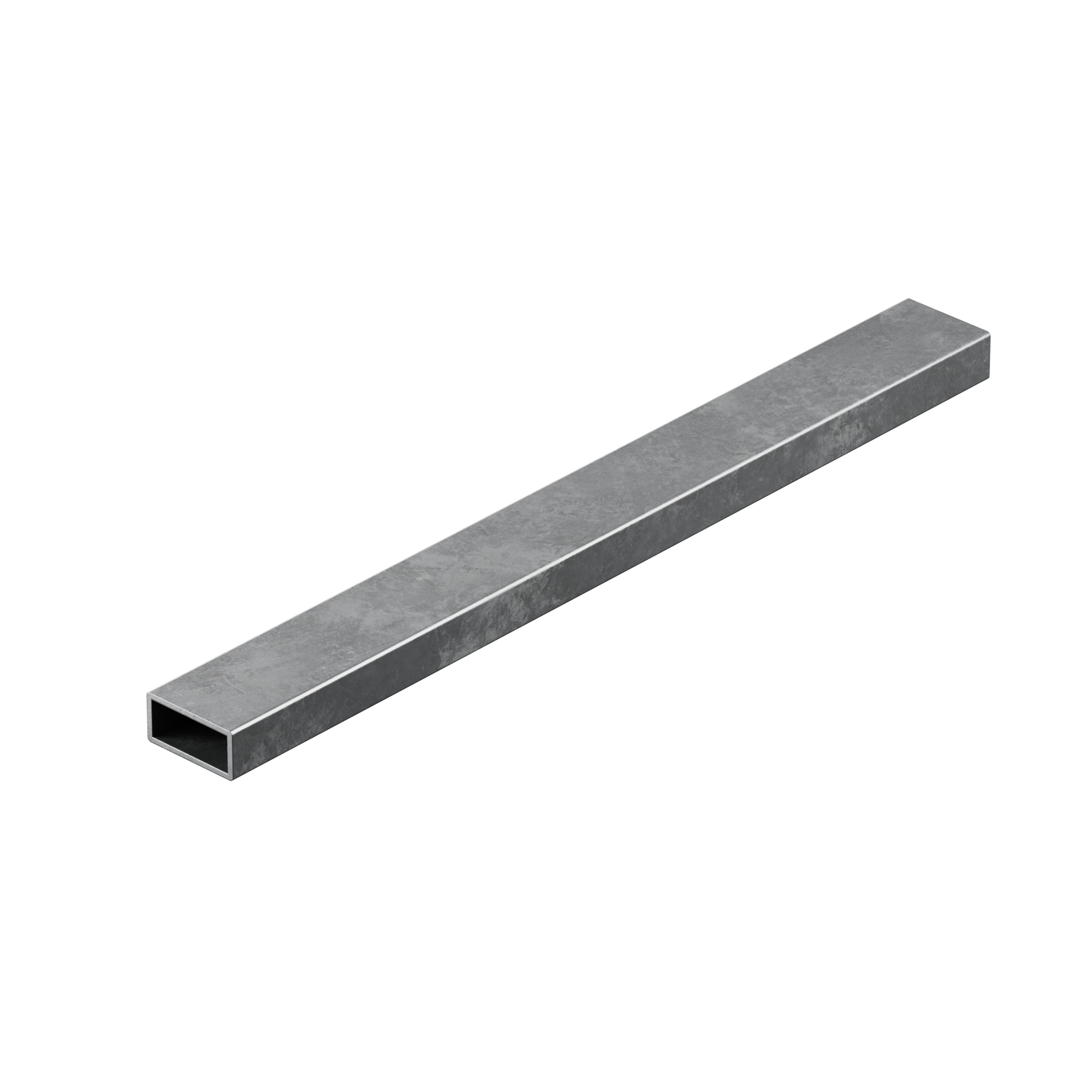

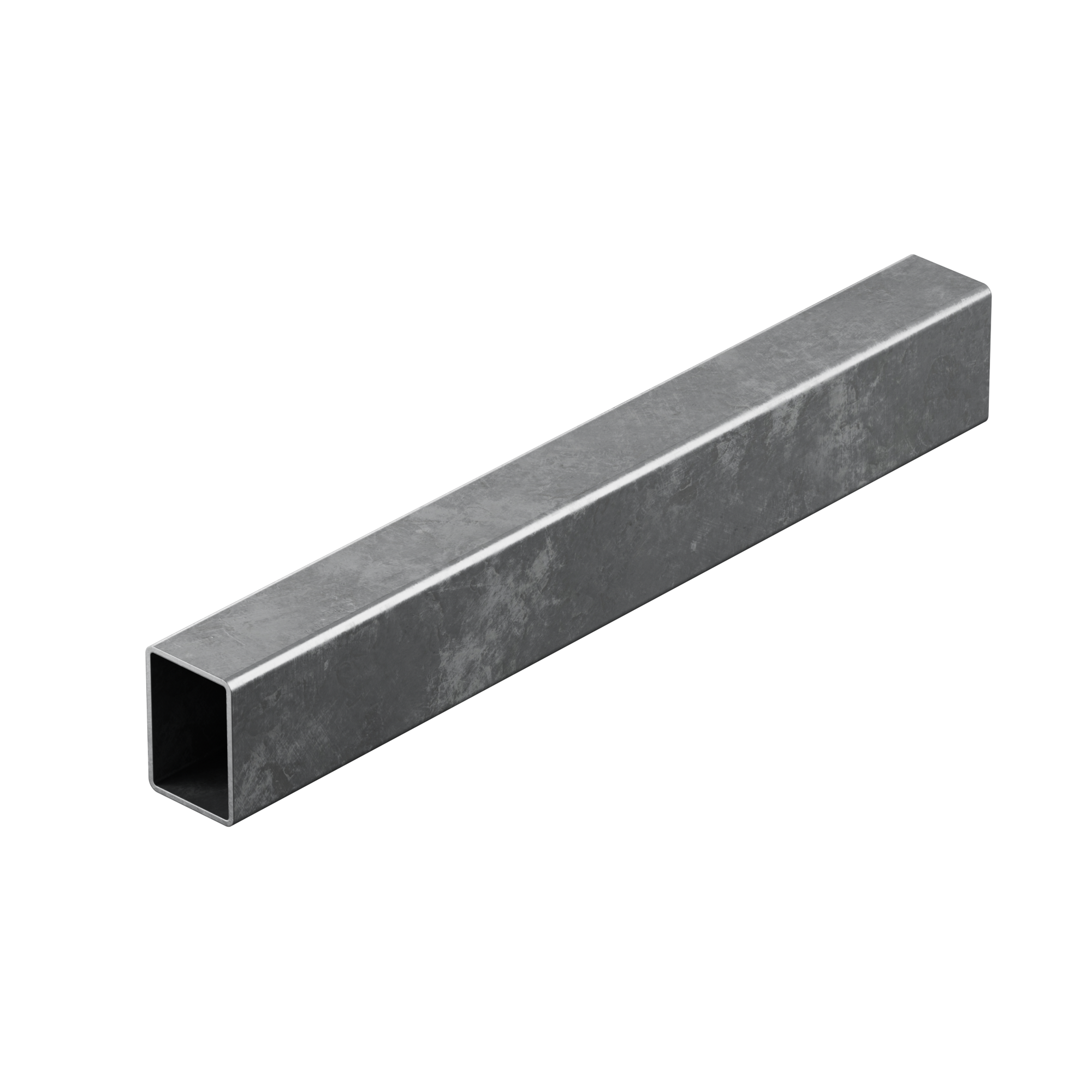

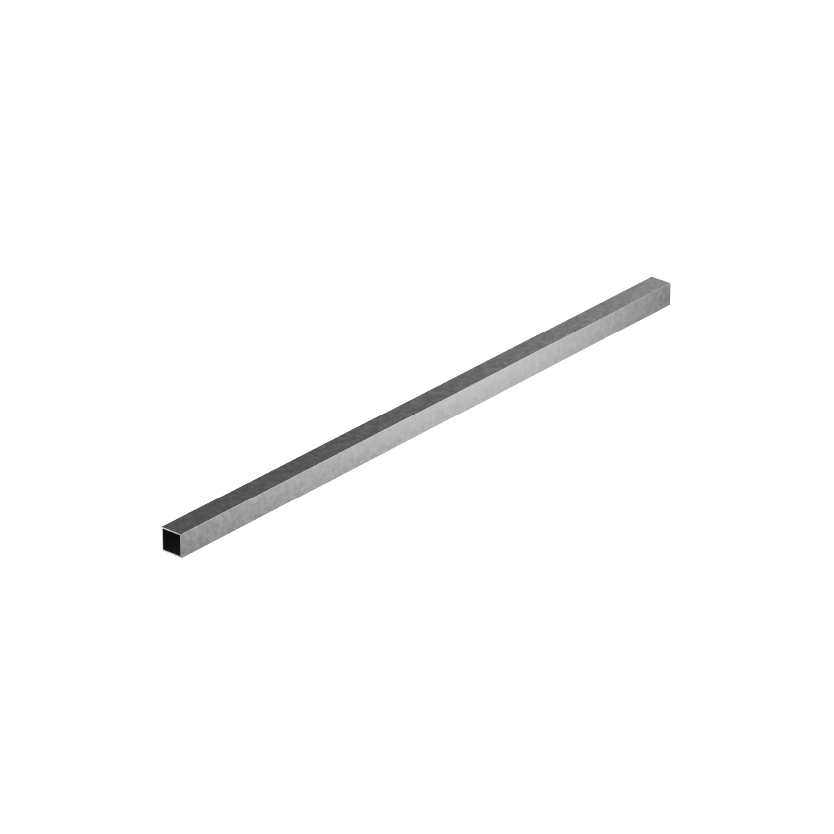

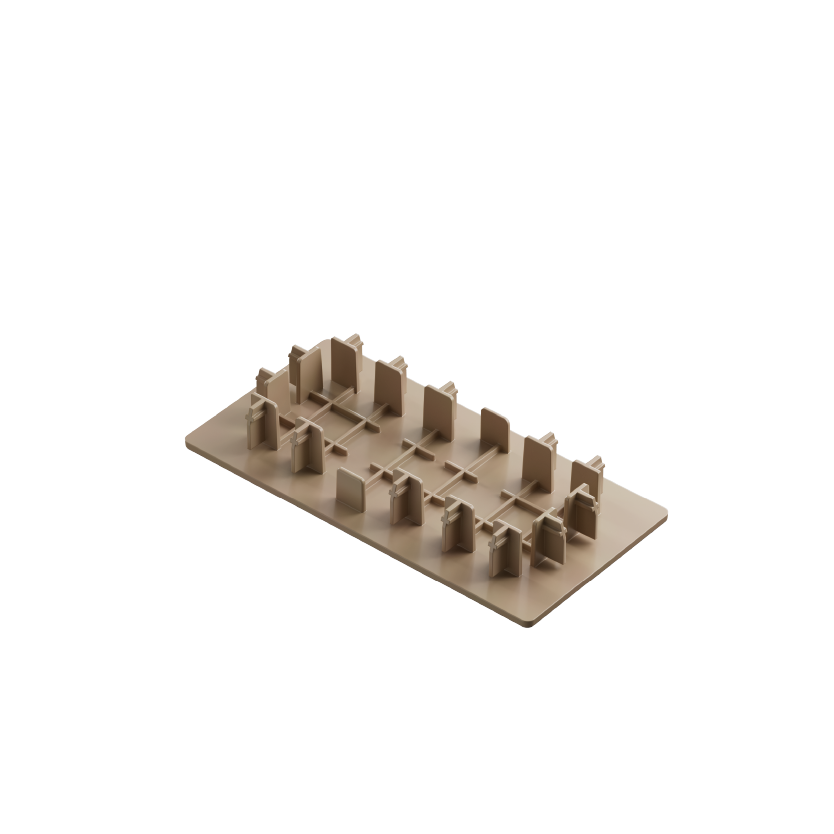

| Type | 40120 End cap | 50100 End cap | 60150 End cap | 50100 Inserted tube |
| Color | Louver's color | Louver's color | Louver's color | Natural |
| Specification | 120.5*40.4*14.77mm | 100.5*50.4*14.77mm | 150.5*60.4*14.77mm | 35*25*1.5mm |

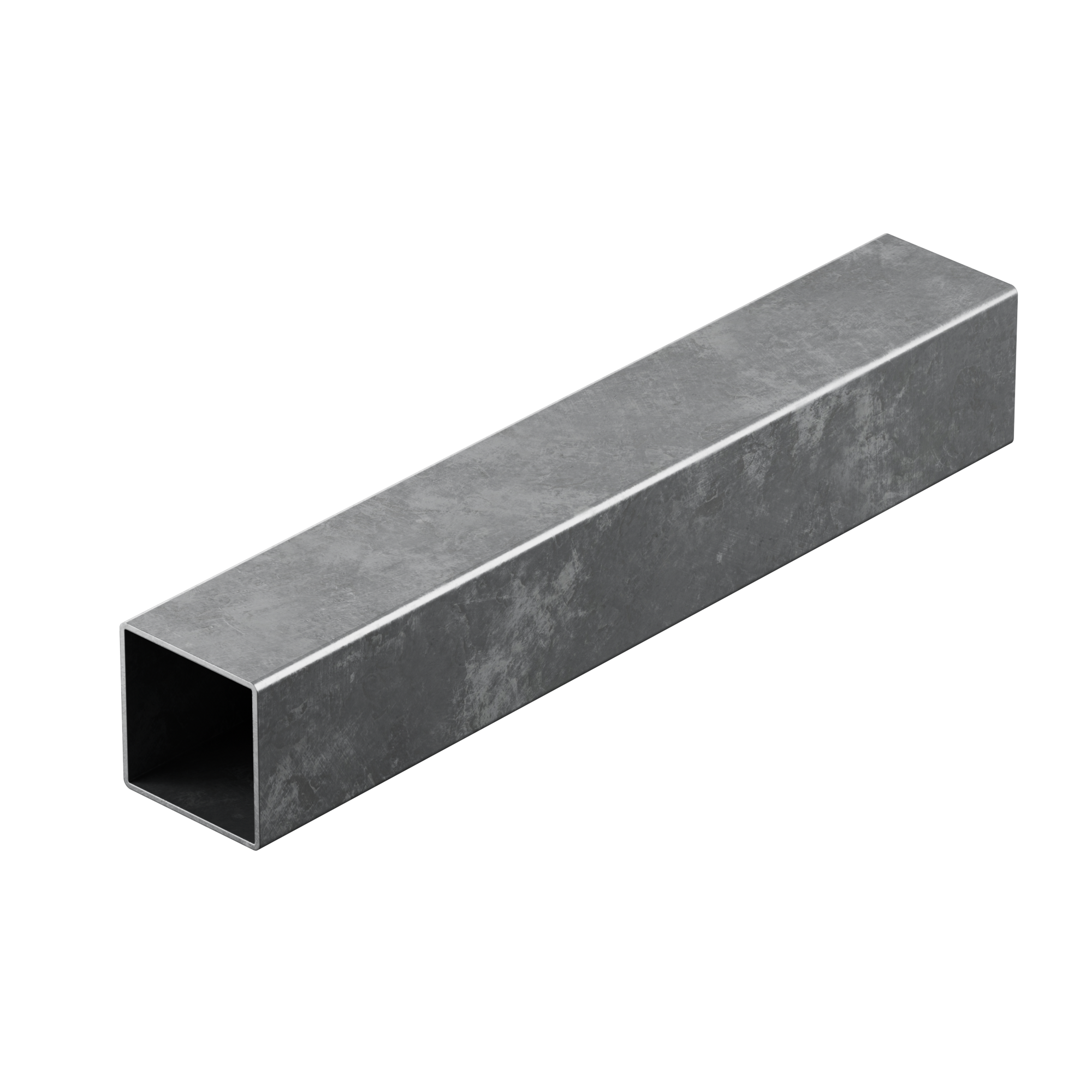

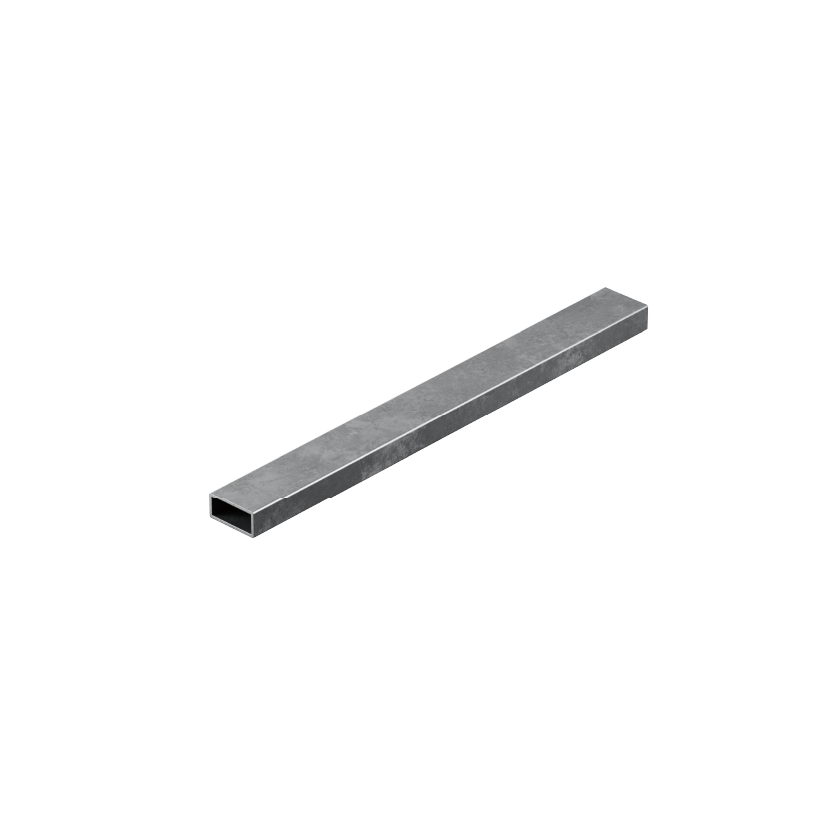

| Material | HDPE | HDPE | HDPE | Galvanized square tube |
| Model | HLPM-0186 | HLPM-0187 | HLPM-0190 | HLPM-0188 |
 |
 |
 |
 |
|

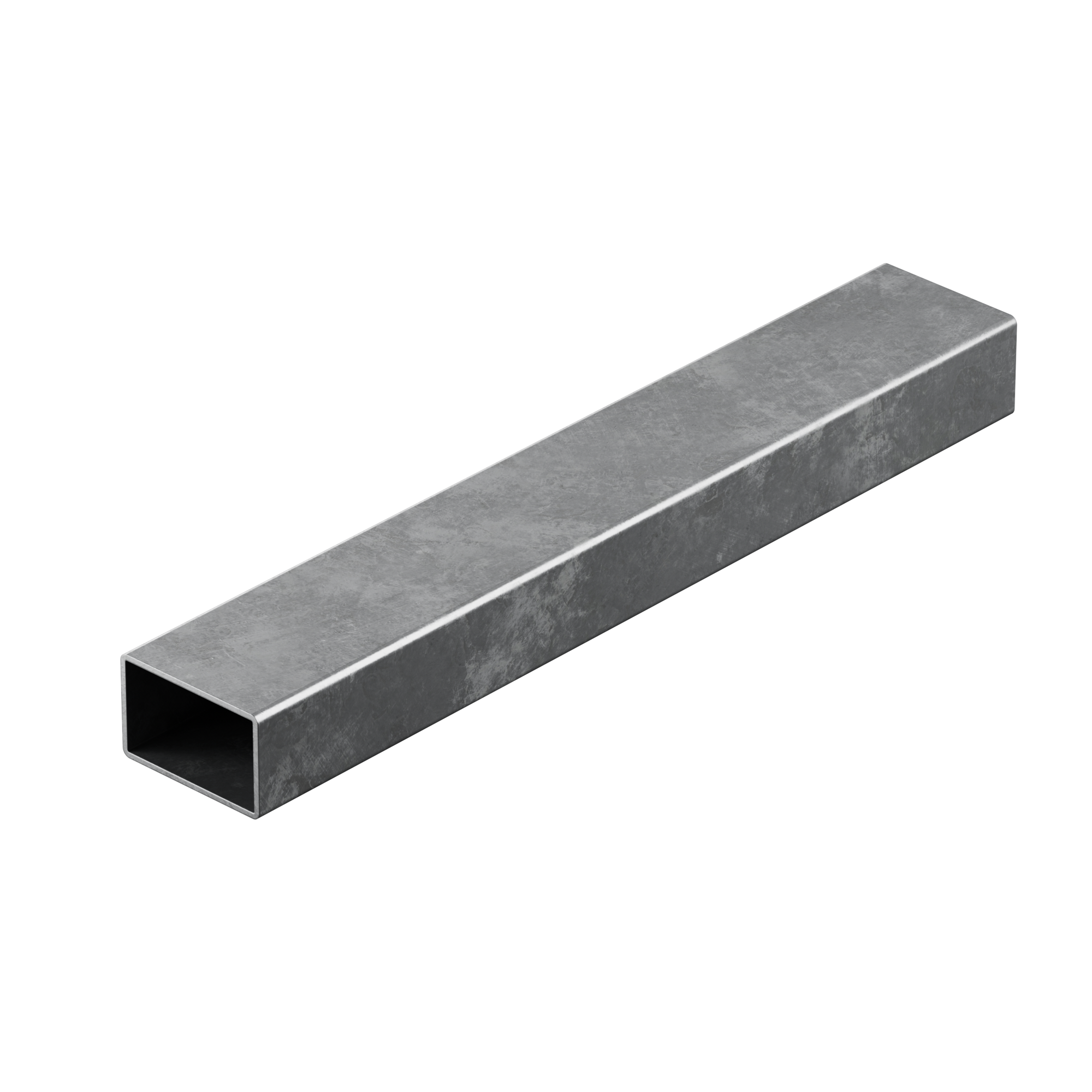

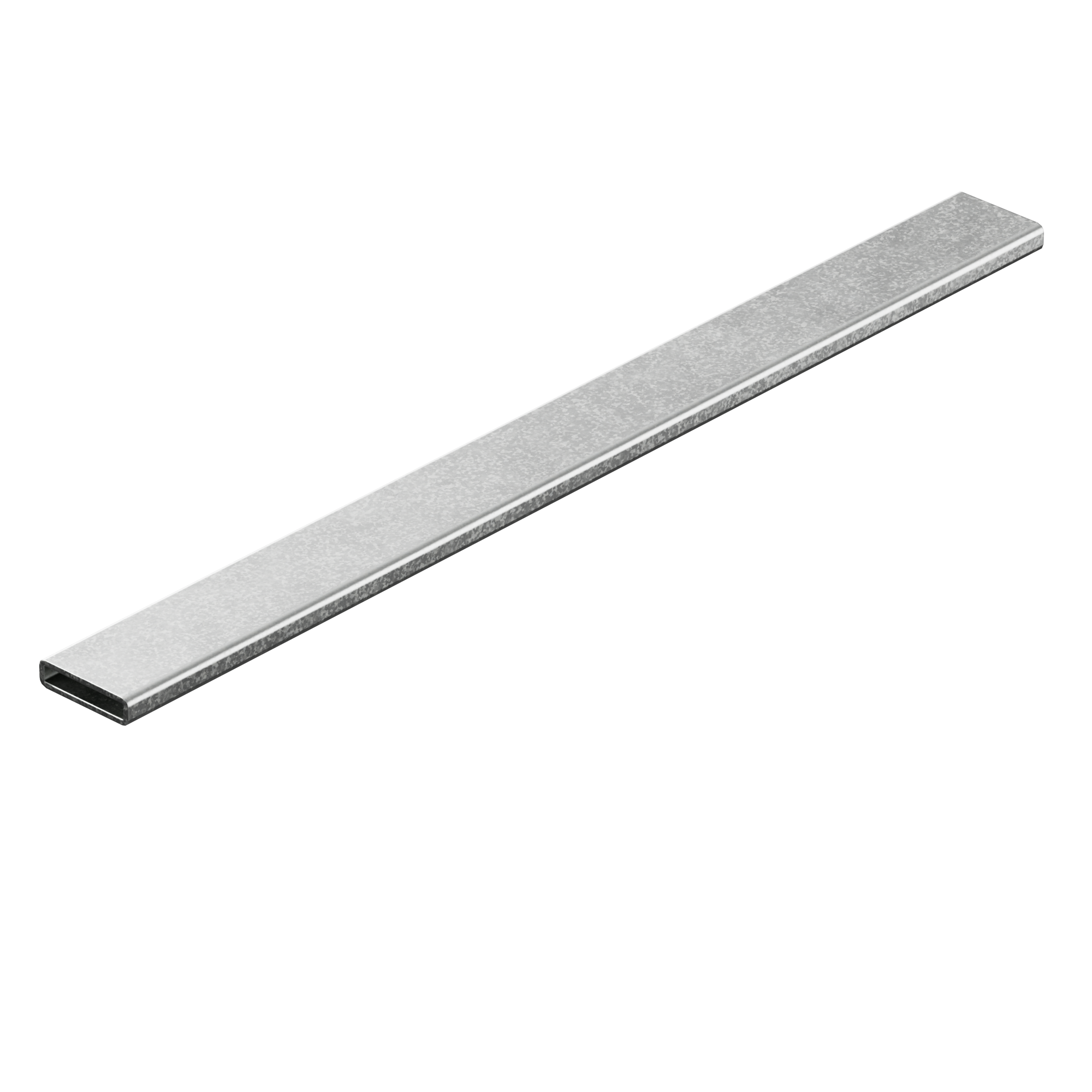

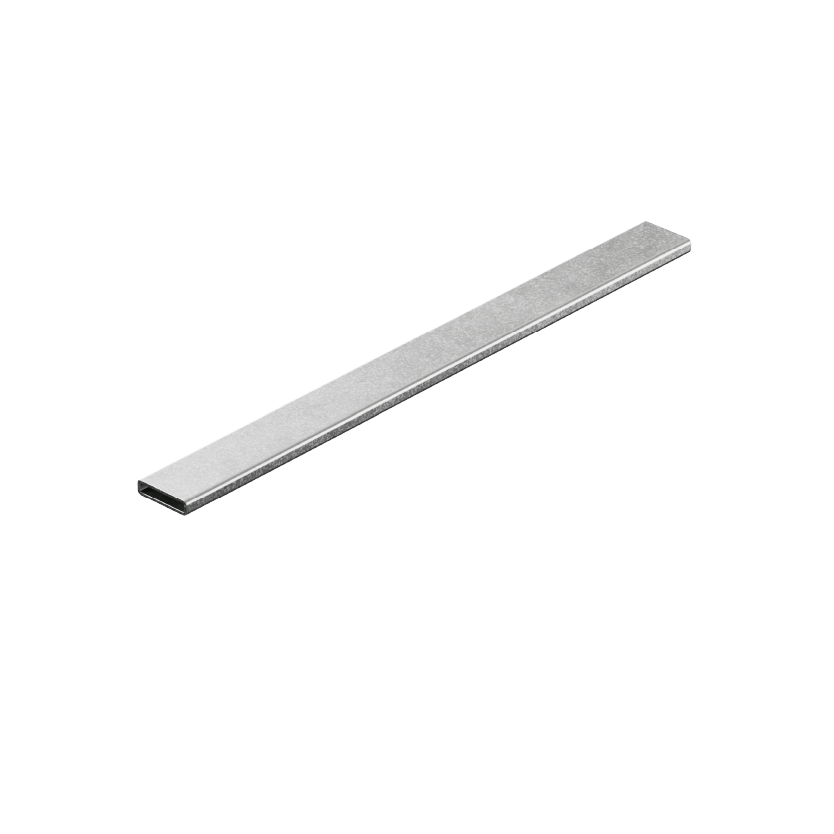

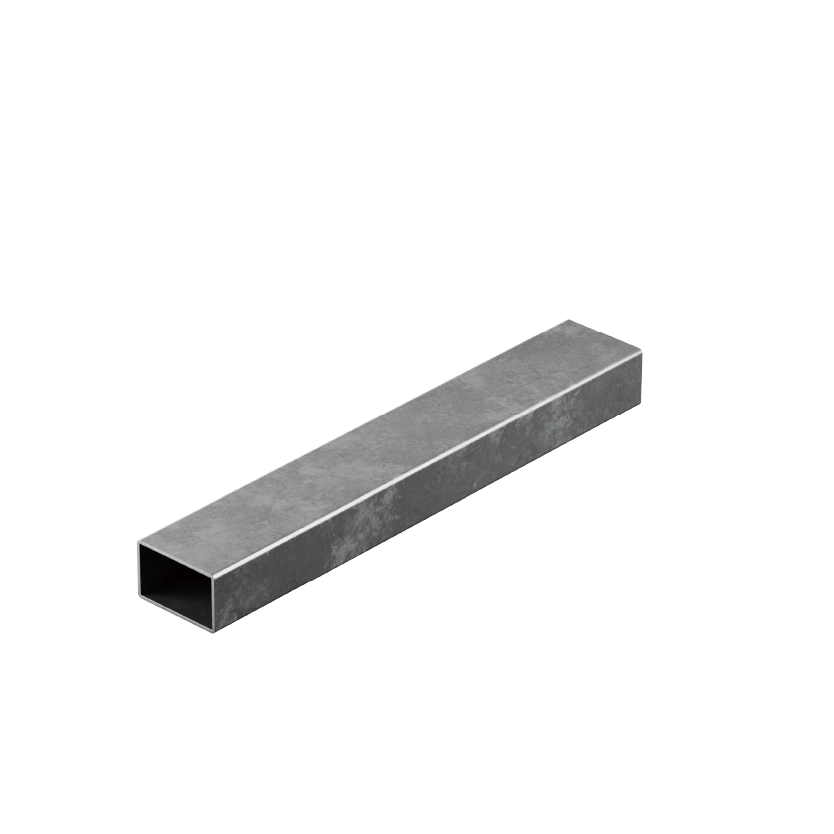

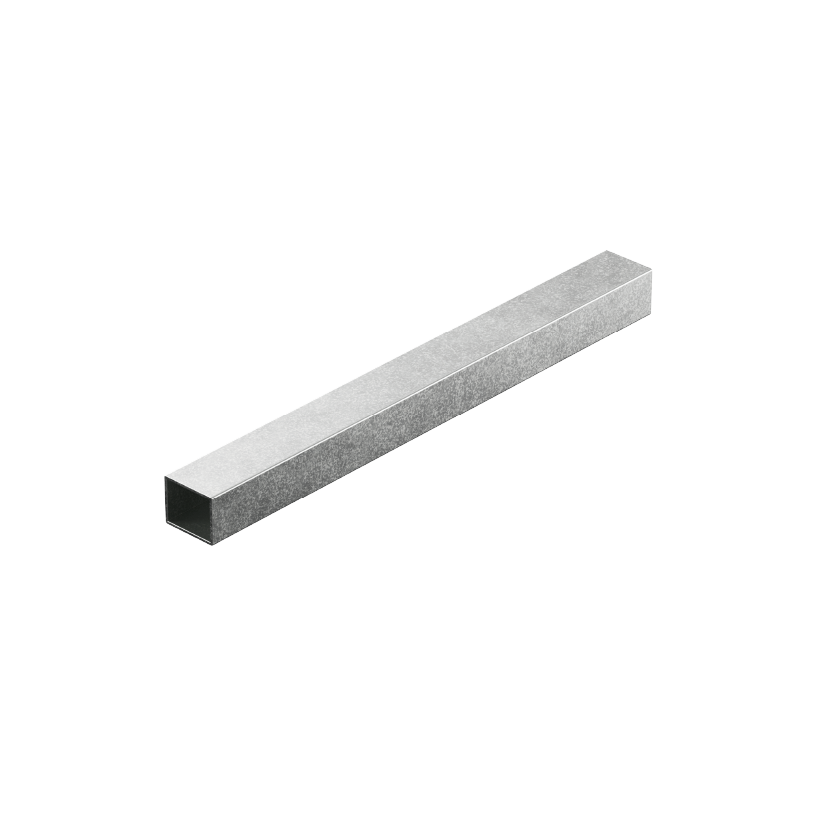

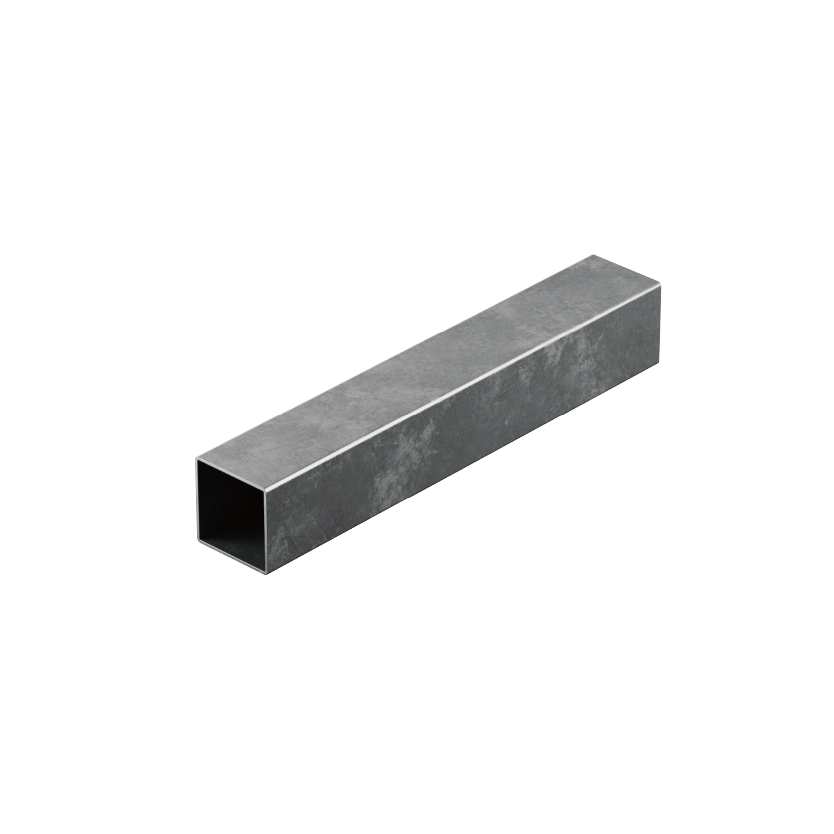

| Type | 2040-2080 Inserted tube | 25100 Inserted tube | 4060 Inserted tube | 40120 Inserted tube |
| Color | Natural | Natural | Natural | Natural |
| Specification | 7*27*1.5mm | 12*25*1.5mm | 25*40*1.5mm | 25*40*1.5mm |
| Material | Galvanized square tube | Galvanized square tube | Galvanized square tube | Galvanized square tube |
| Model | HLPM-0189 | HLPM-0139 | HLPM-094[B] | HLPK-0168 |
 |
 |
 |
 |
|

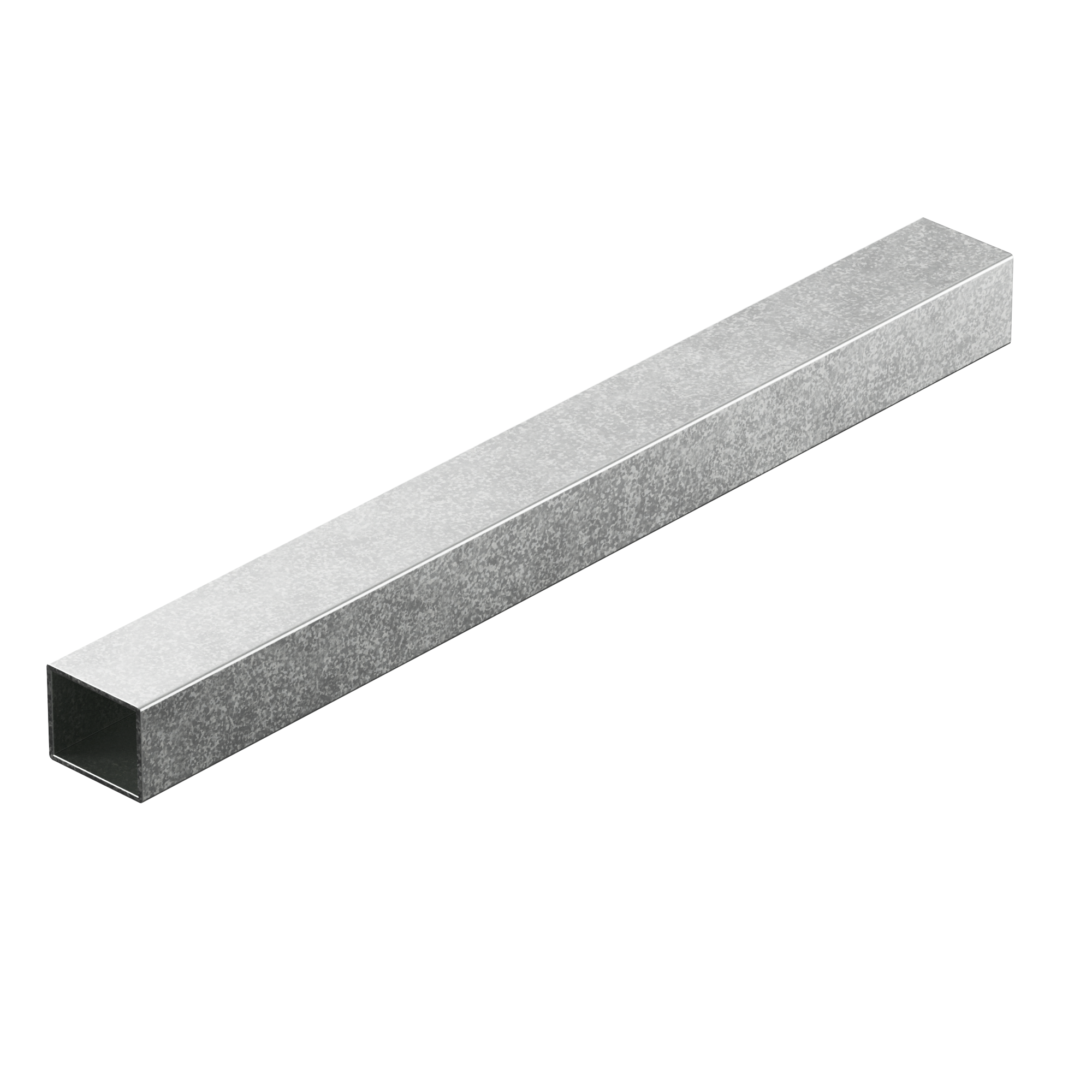

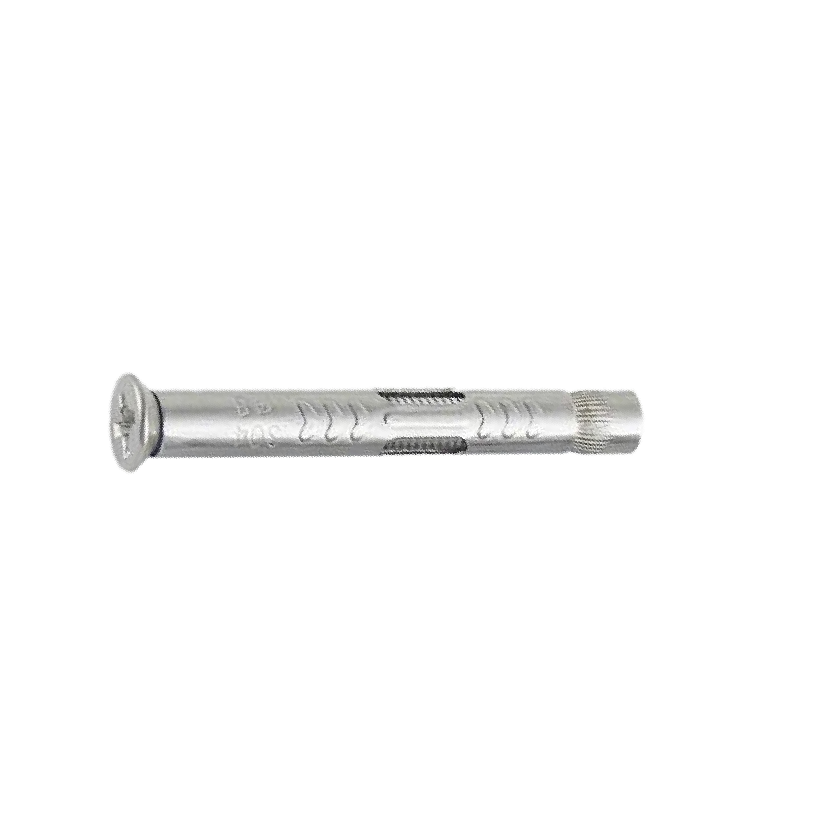

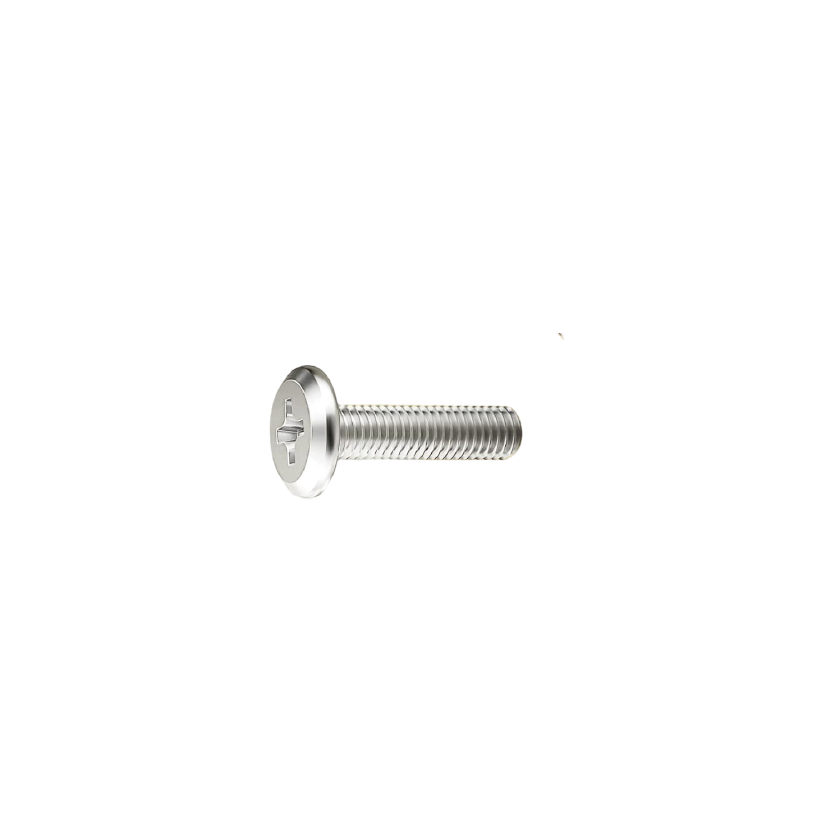

| Type | 60150Inserted tube | Hot-dip galvanized Joist | Expansion bolt | M6 Cross Bolt 01 |
| Color | Natural | Natural | Natural | End Coloring color |
| Specification | 80.5*20.4*14.77mm | 40*40*2.5mm | M6*100mm | M6*16mm |
| Material | Galvanized square tube | Galvanized square tube | 304 Stainless Steel | 304 Stainless Steel |

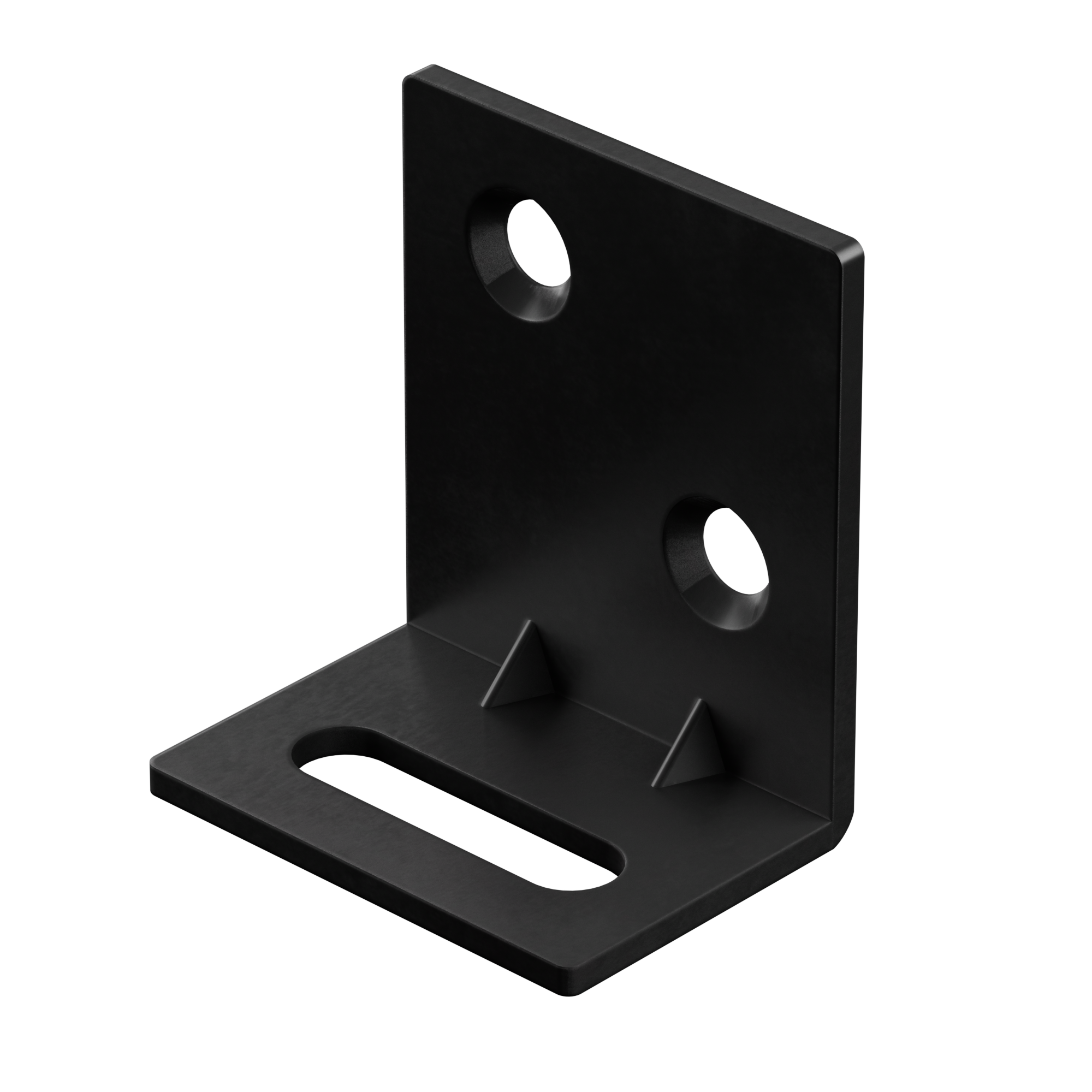

| Model | HLPM-115[I] | HLPK-0183 | HLPK-0184 | HLPK-0185 |
 |
 |
 |
 |
|

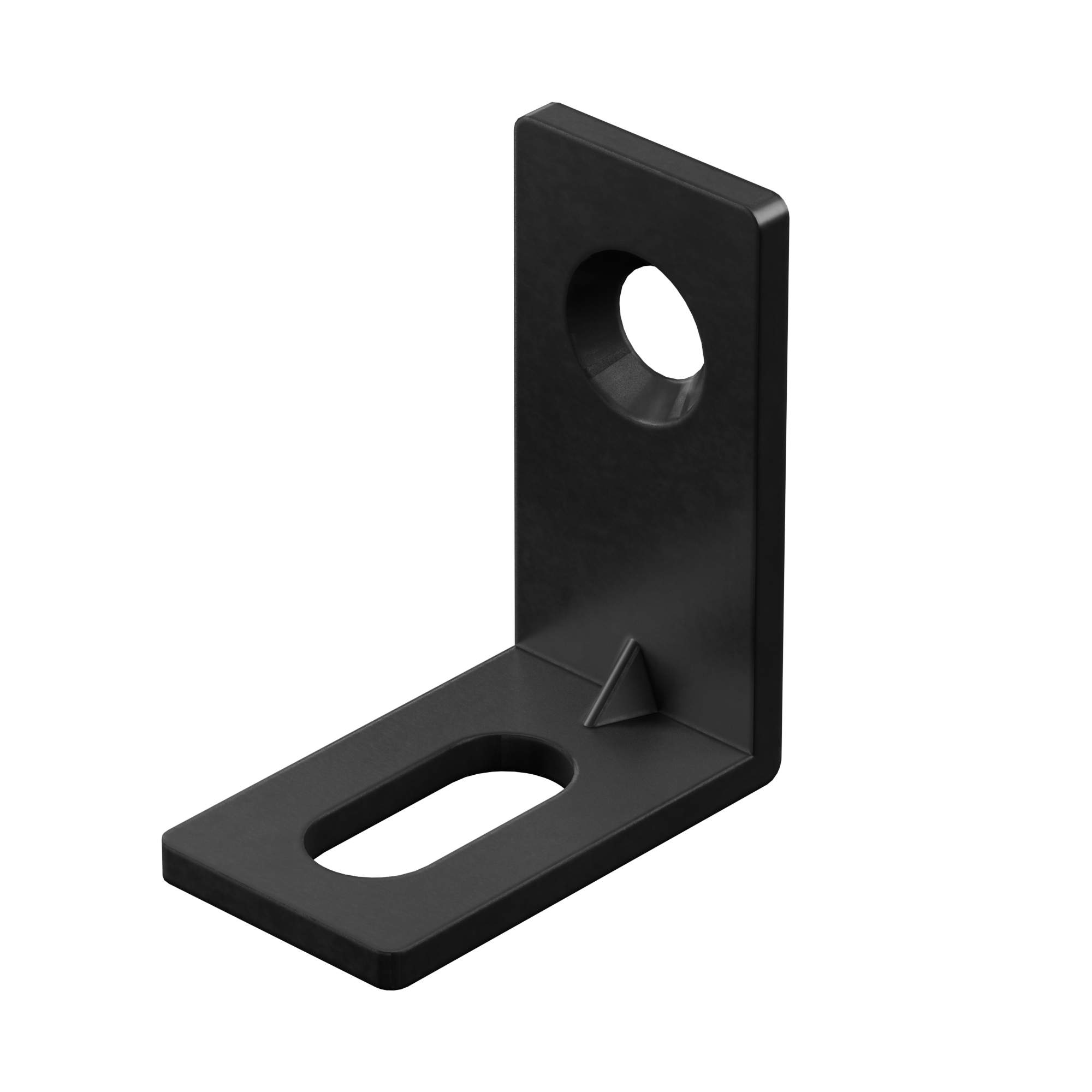

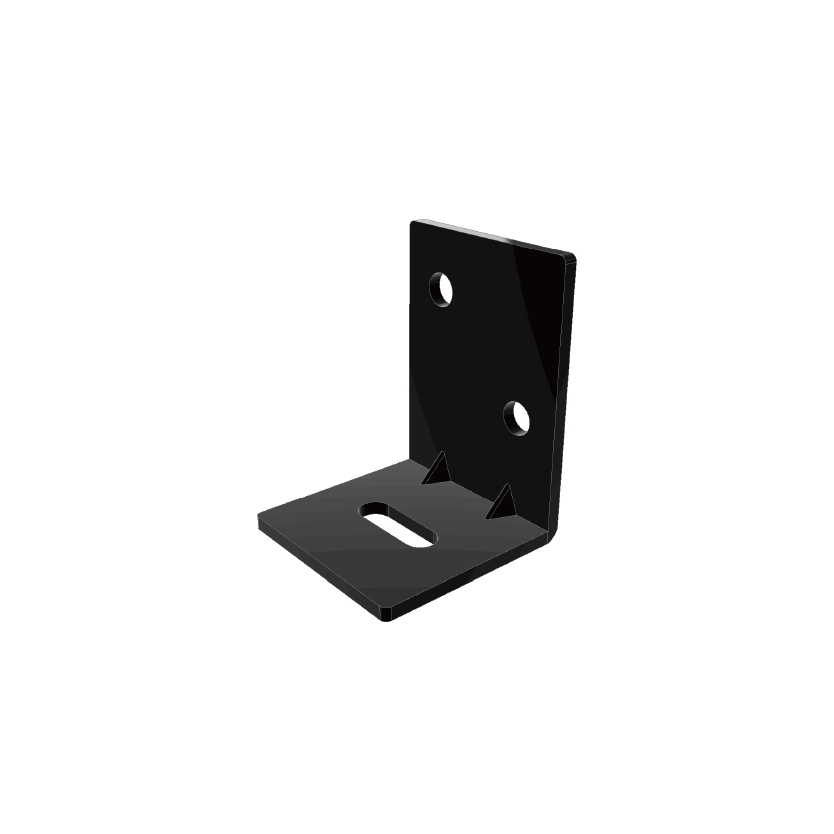

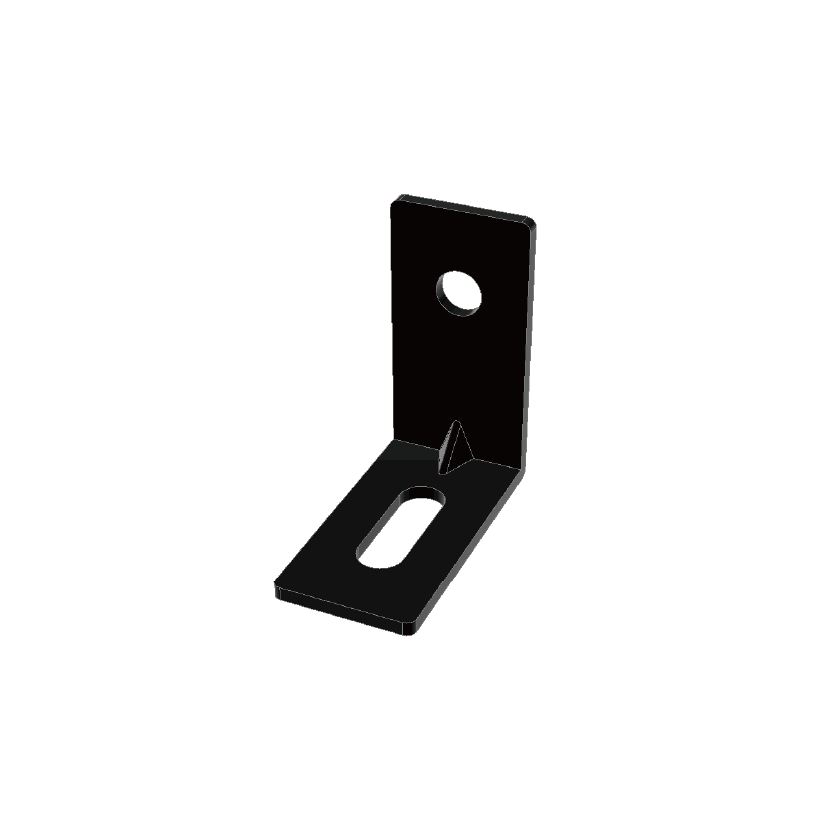

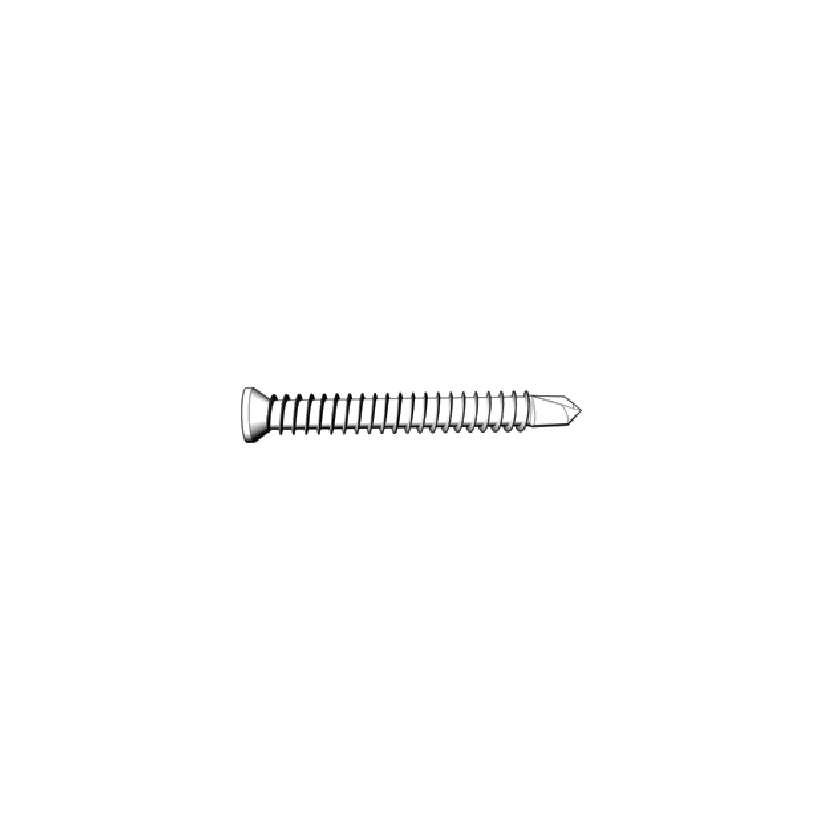

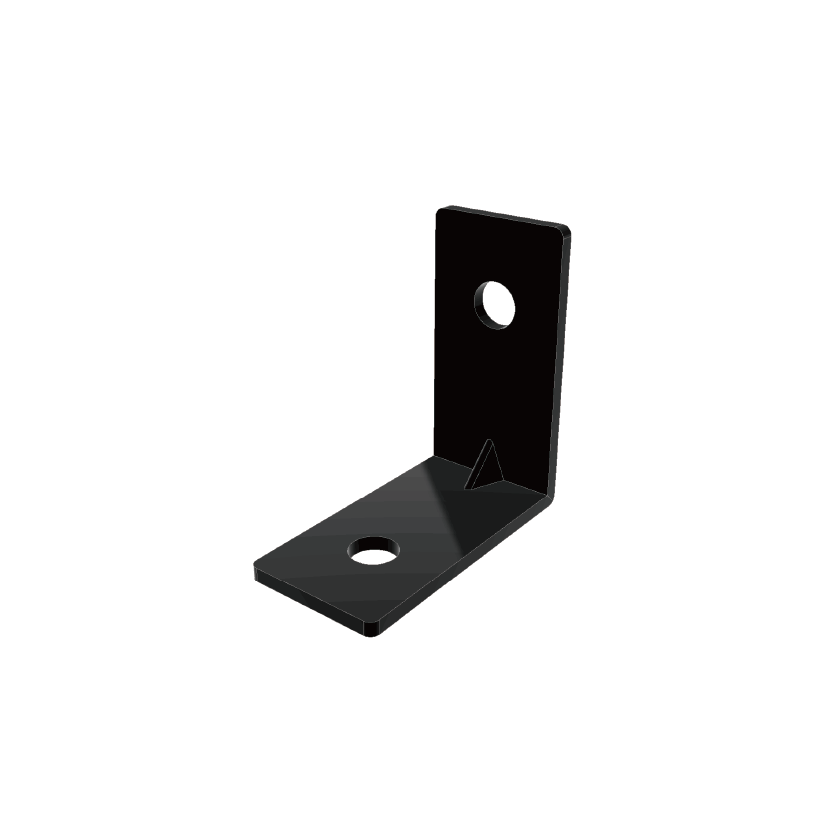

| Type | Phillips self-tapping and self-drilling screw | L-bracket with Single Round Hole 01 | L-bracket with single hole and elliptical hole 01 | L-bracket with single hole and elliptical hole 01 |
| Color | Black | Black | Black | Black |
| Specification | M5*34.29mm | 30*26*15*2mm | 30*26*15*2mm | 40*25*15*2mm |
| Material | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| Model | HLPK-0186 | HLPK-0187 | HLPK-0188 | HLPK-0189 |
 |
 |
 |
 |
|

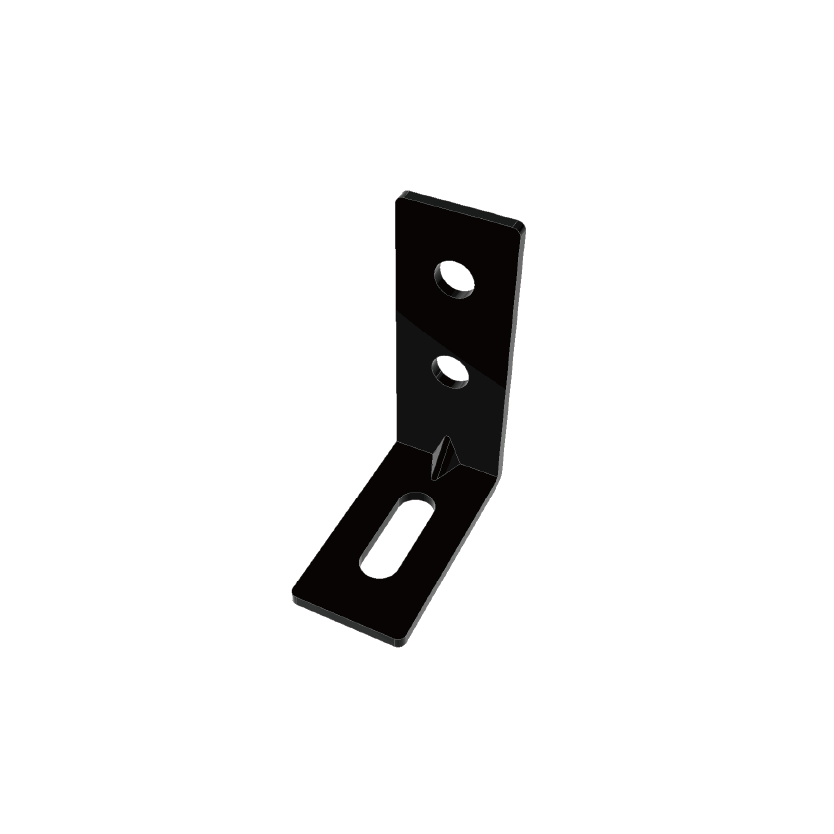

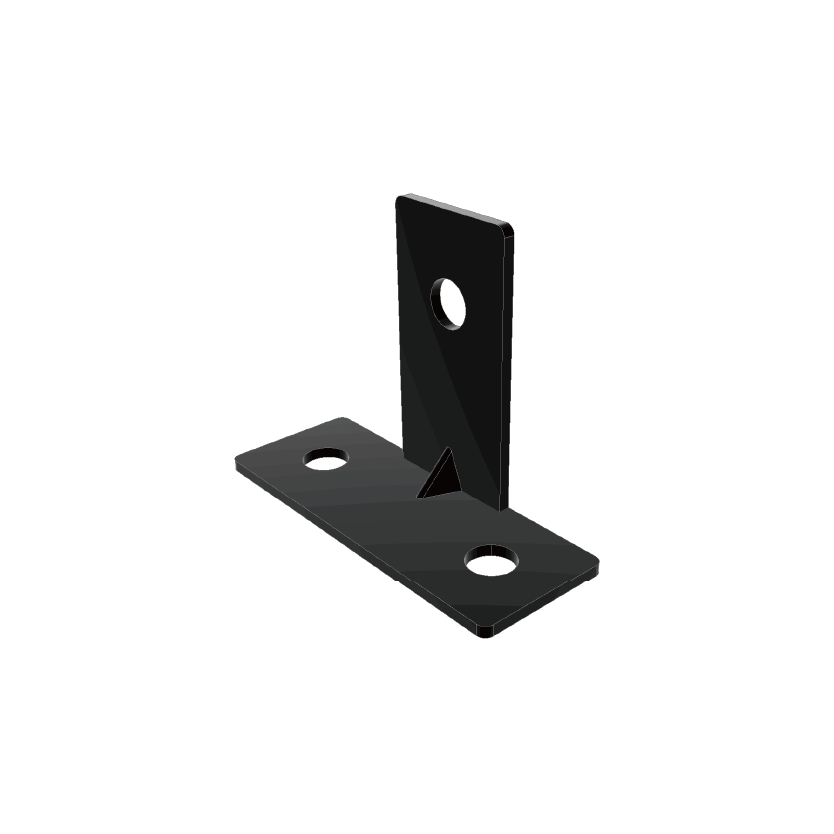

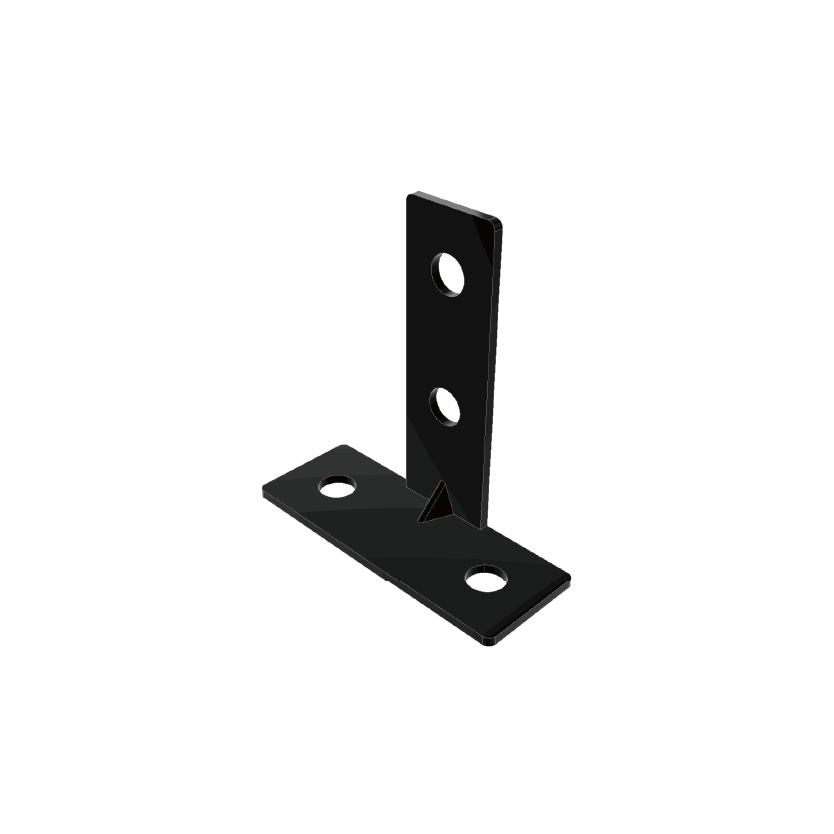

| Type | L-bracket with double hole and elliptical hole 02 | T-bracket with Single Holes 01 | T-bracket with Double Holes 01 | T-bracket with Double Holes 02 |
| Color | Black | Black | Black | Black |
| Specification | 40*25*35*2mm | 25*25*40*2mm | 41*25*40*2mm | 42*25*65*2mm |
| Material | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |

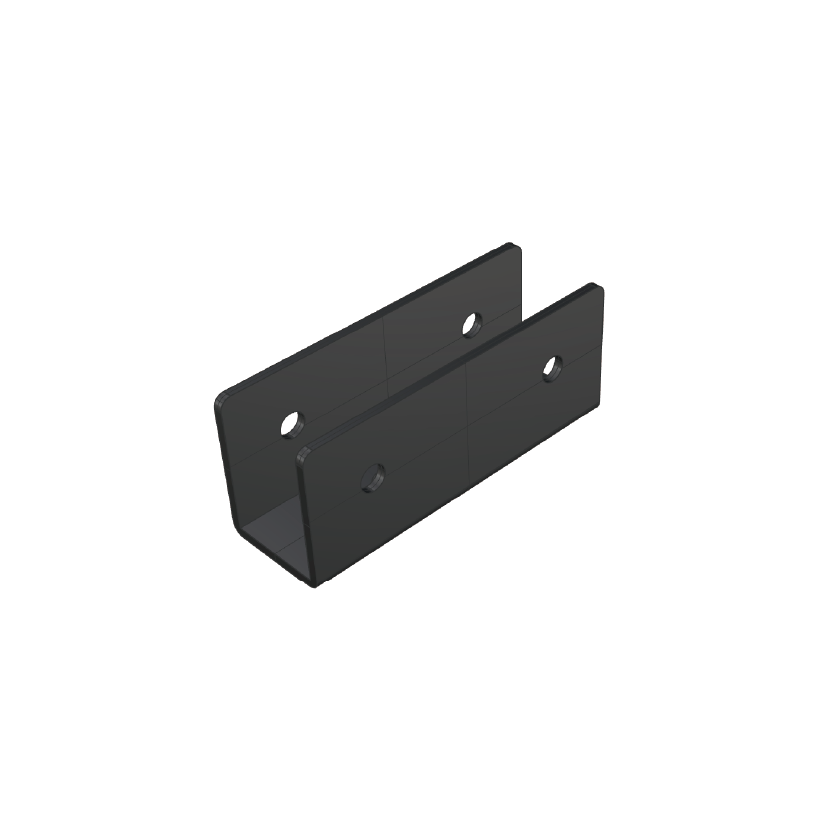

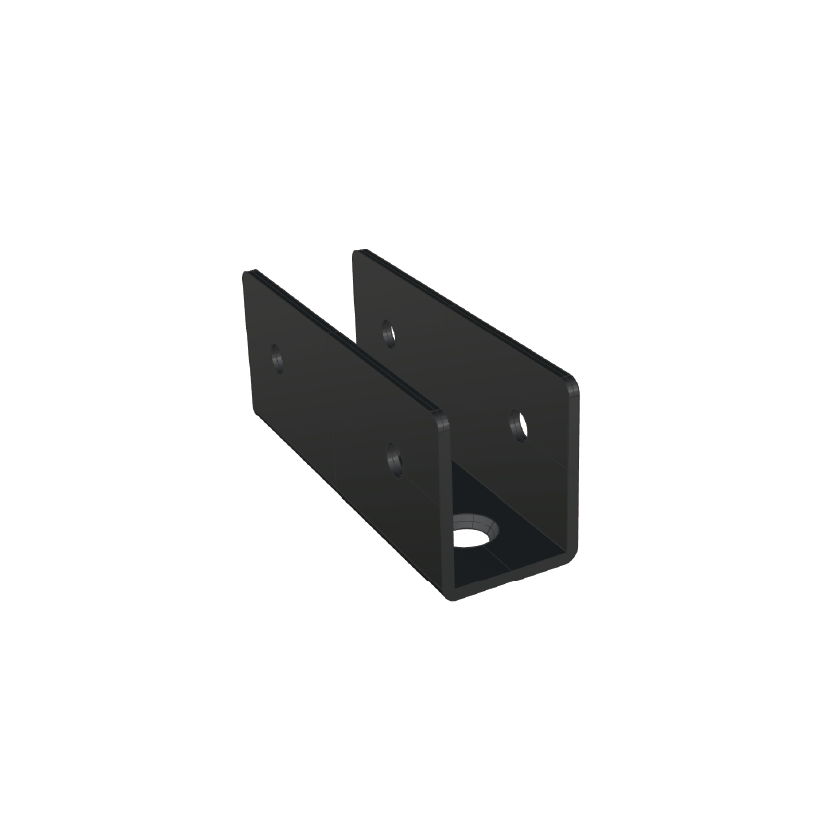

| Model | HLPK-0208 | HLPK-0211 | HLPK-0217 | HLPK-0218 |
 |
 |
 |
 |
|

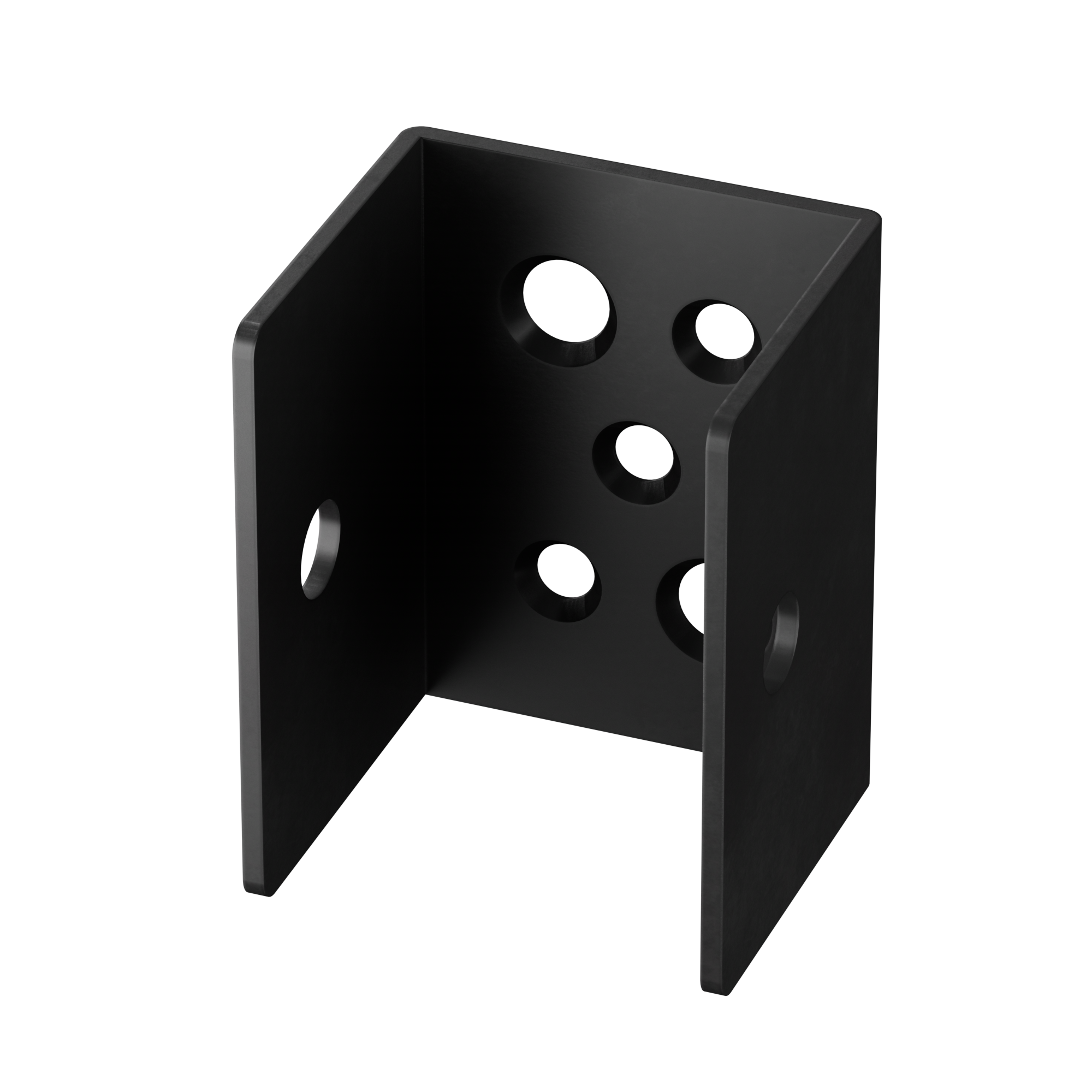

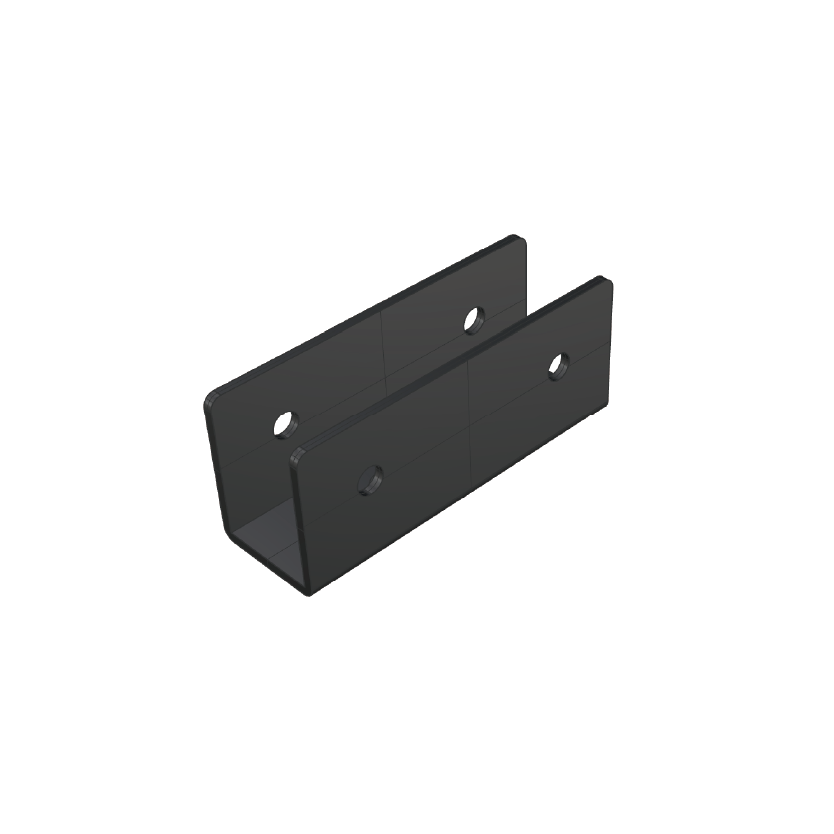

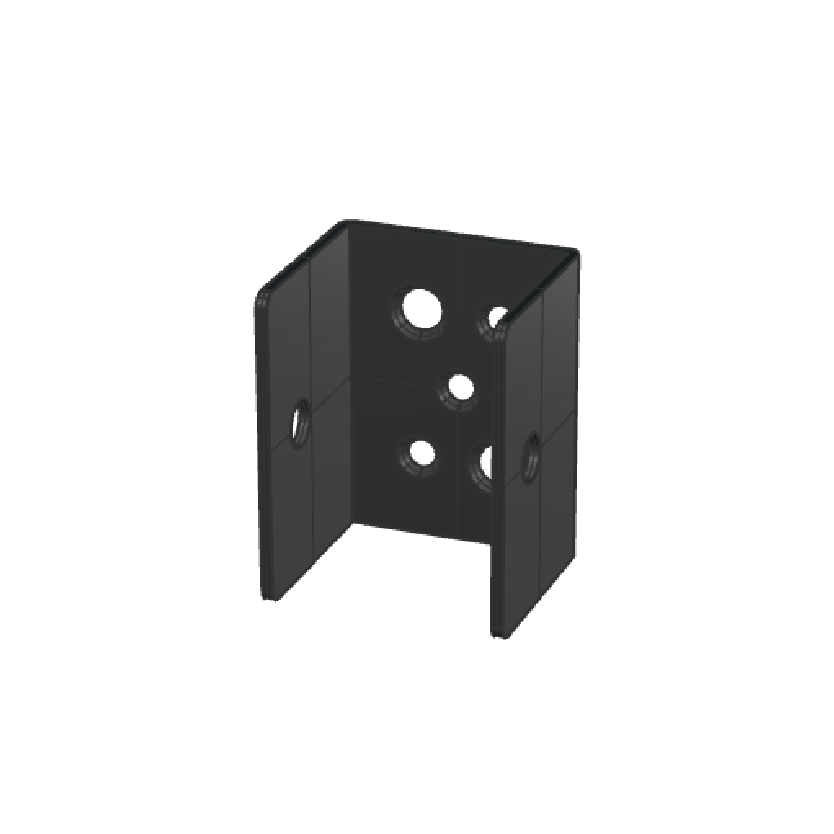

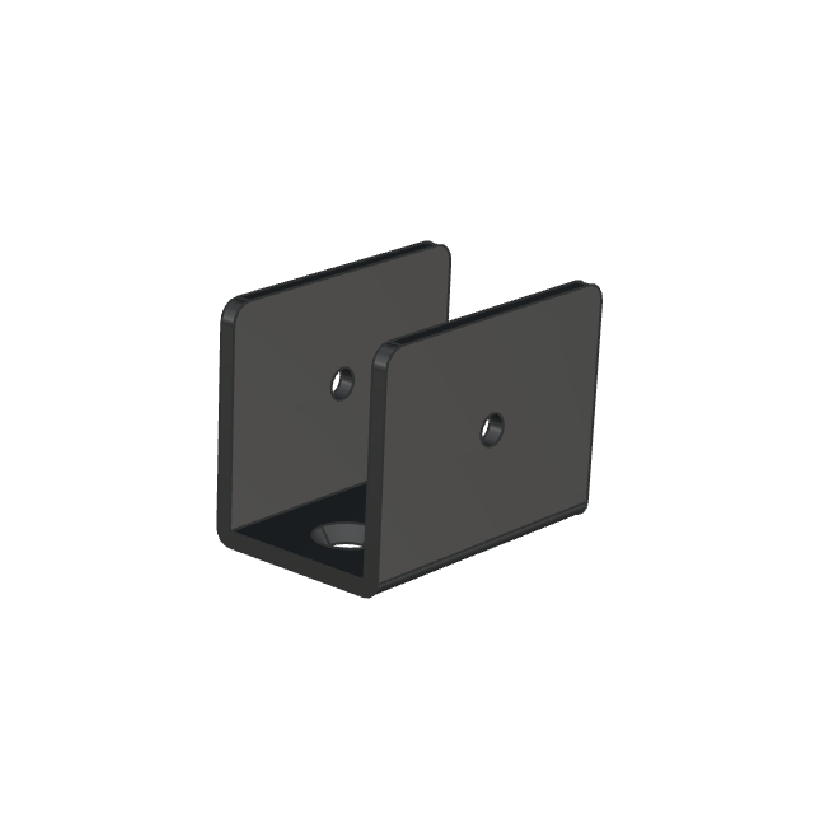

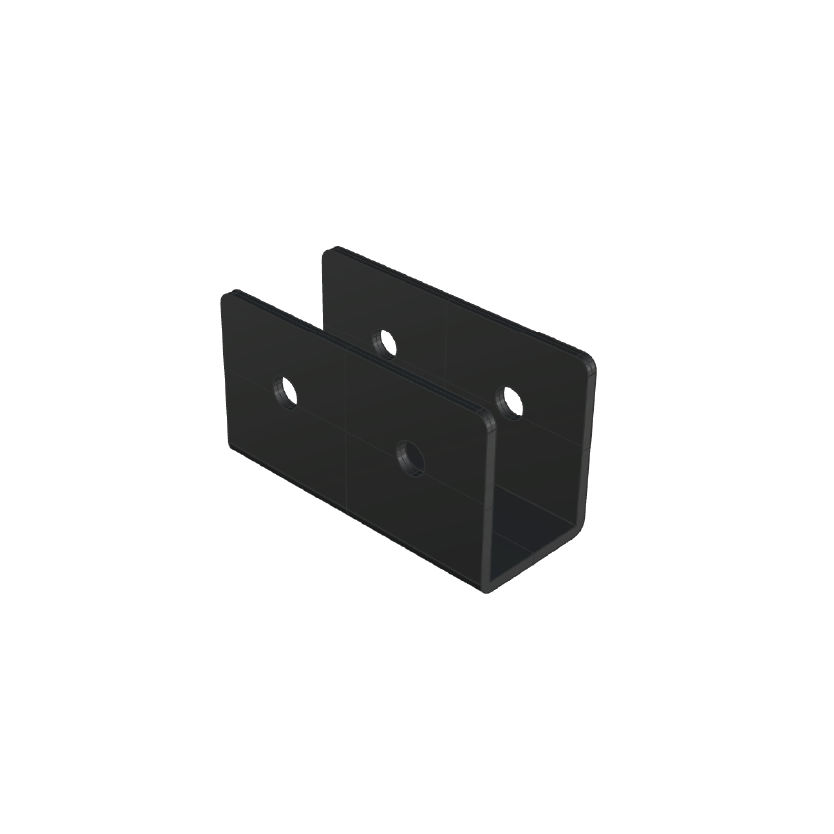

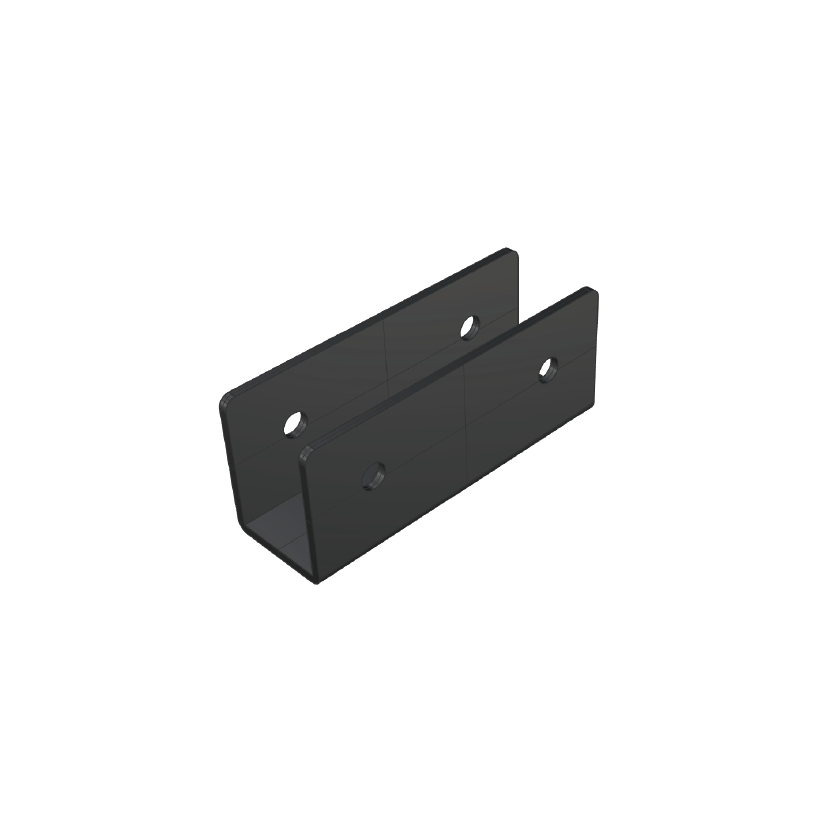

| Type | U-bracket07 | U-bracket08 | U-bracket10 | U-bracket11 |
| Color | Black | Black | Black | Black |
| Specification | 38*25*29.5*2mm | 58*45*40*2mm | 98*30*36*2mm | 98*57*36*3mm |
| Material | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |

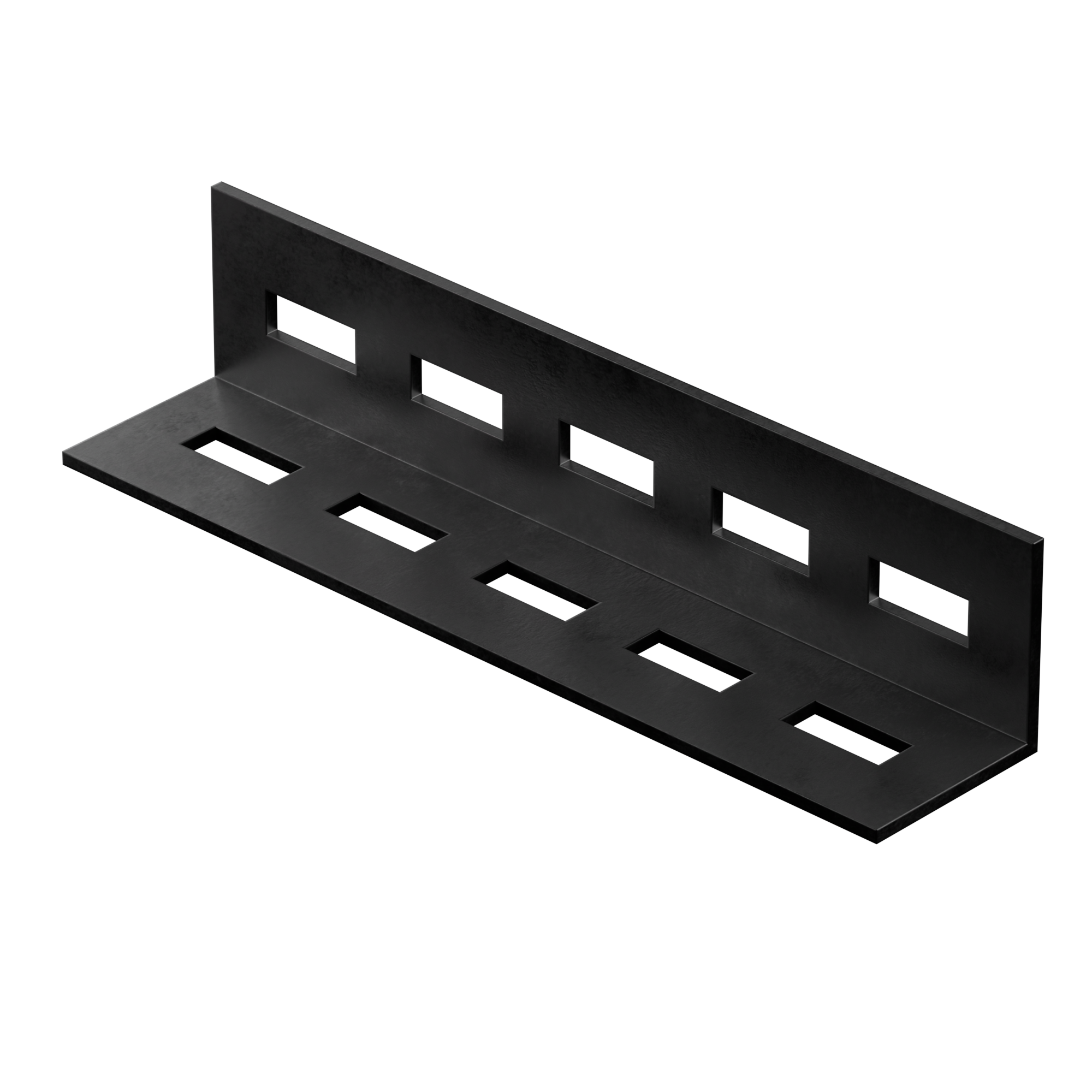

| Model | HLPK-0221 | HLPK-0224 | HLPK-0225 | HLPK-0265 |
 |
 |
 |
 |
|

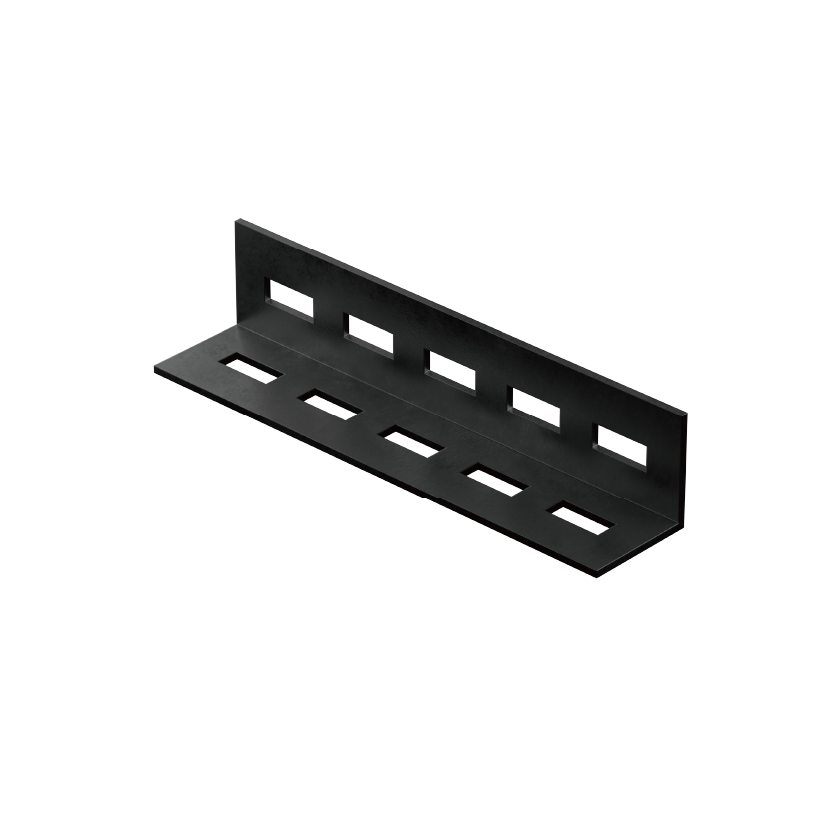

| Type | U-bracket12 | U-bracket13 | U-bracket09 | L-shape joist02 |
| Color | Black | Black | Black | Black |
| Specification | 118*47*36*3mm | 148*67*43*3mm | 78*25*32*2mm | 30*30*2mm |
| Material | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| Model | HLPK-0226 | HLPK-0227 | HLPK-0228 | HLPK-0229 | HLPK-0231 |
 |
 |
 |
 |
 |
|

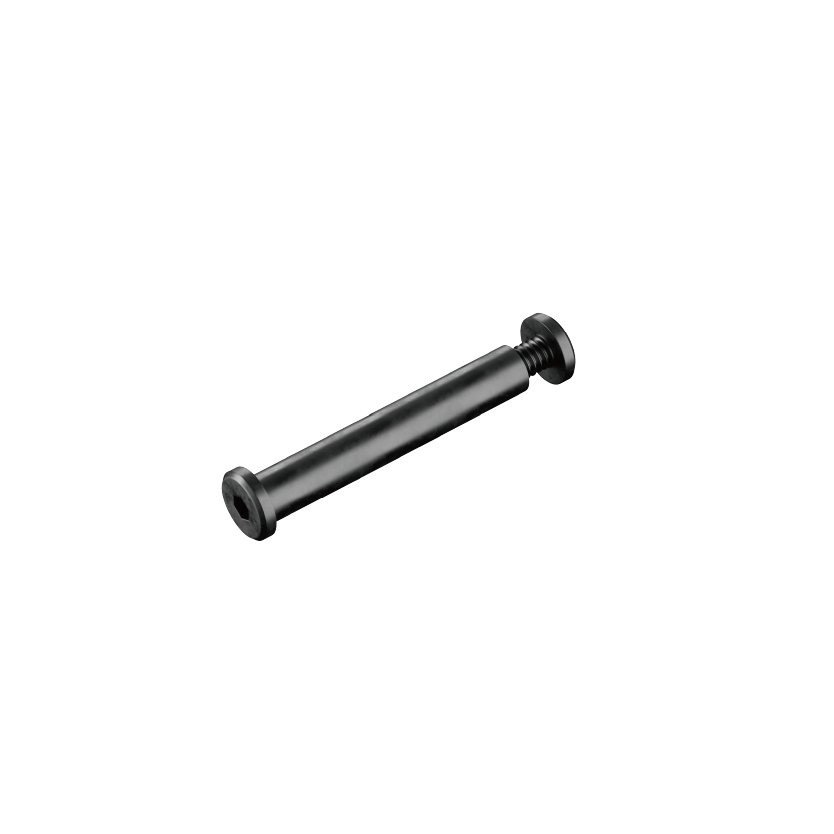

| Type | M4 lock screw 01 | M6 lock screw 01 | M4 lock screw 02 | M6 lock screw 02 | M6 locking screw 04 |
| Color | Natural | Natural | Natural | Natural | Natural |
| Specification | M4*25-φ5 screw with hollow shank | M6*45-φ8 screw with hollow shank | M4*30-φ5 screw with hollow shank | M6*55-φ8 screw with hollow shank | M6*65-8 screw with hollow shank |
| Material | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
